Before You Sign That Purchase Order: How to Actually Verify Granite Surface Plate Flatness

Most buyers accept surface plate flatness claims without independent verification. This guide teaches you what the three flatness grades mean in practice, simple verification methods you can perform yourself, and the three inspection details that experienced buyers never skip.

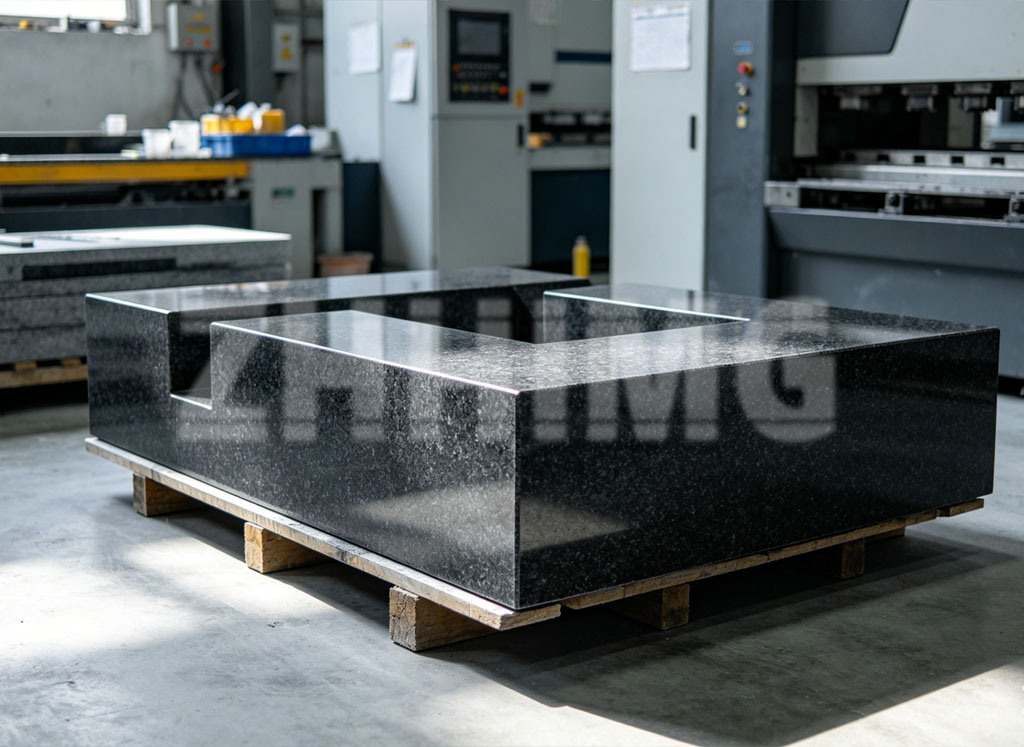

The Verification Gap That Costs Buyers Thousands

Picture this: you receive a container of granite surface plates at your facility. The supplier’s certificate claims Grade 00 flatness (≤0.5μm/m). You sign the delivery documents. Three months later, your quality team runs incoming inspection and discovers the plates measure 1.2μm/m flatness—far outside Grade 00 specifications.

Now you’re facing a claim against a shipping company, a supplier who disputes your measurement, and production delays while you source replacement plates. The root cause? You trusted the supplier’s certificate without performing your own verification.

This scenario happens repeatedly across the precision manufacturing industry. The solution isn’t paranoia—it’s systematic verification procedures that protect your interests while building supplier accountability.

Understanding Flatness Grades: What the Numbers Actually Mean

Grade 00: The Highest Precision Available

Grade 00 surface plates achieve flatness tolerances of ≤0.5μm/m. For a 1-meter plate, this means the entire surface deviates from perfect flatness by less than half a micrometer—approximately 1/150th the thickness of a human hair.

What this tolerance enables:

• · Coordinate measuring machines requiring the finest referencing accuracy
• · Optical measurement systems where base stability directly affects measurement uncertainty
• · Semiconductor wafer handling equipment where sub-micron positioning matters
• · Laser interferometry reference surfaces

Practical implications:

Grade 00 plates require strict environmental control during use. Temperature variations, vibration, and even acoustic waves can momentarily distort measurements on such precise surfaces. These aren’t maintenance-free precision tools—they require the same care you would give measurement-grade instruments.

Grade 0: The Workhorse Specification

Grade 0 achieves flatness tolerances of ≤1μm/m—double the deviation of Grade 00 but still exceptional precision for most manufacturing applications.

What this tolerance enables:

• · Standard precision machining operations
• · Comparator and dial indicator calibration
• · Tool setting for CNC machines
• · General inspection and quality assurance

Why experienced buyers often specify Grade 0:

For approximately 40-60% of the cost of Grade 00 plates, Grade 0 provides sufficient precision for most applications while being more tolerant of environmental variations. Unless your measurement uncertainty budgets specifically require Grade 00 contribution, Grade 0 often represents the optimal cost-performance specification.

Grade 1: Industrial Standard Precision

Grade 1 achieves flatness tolerances of ≤2μm/m—still extraordinary precision for most manufacturing contexts.

What this tolerance enables:

• · Tool-setting in machining centers
• · Layout and marking operations
• · Training and educational environments
• · Heavy equipment referencing where absolute precision is less critical than durability

When Grade 1 makes sense:

Large surface plates for heavy equipment bases often specify Grade 1. The larger the plate, the more difficult achieving tighter tolerances becomes, and the cost premium for Grade 0 or Grade 00 grows disproportionately. For applications where the granite serves as a stable reference mass rather than a precision measurement surface, Grade 1 provides practical value at reasonable cost.

Simple Verification Methods You Can Perform Before Signing

Method 1: Autocollimator Flatness Survey

For buyers with access to precision measurement equipment, autocollimator testing provides quantitative flatness verification:

1. Position the autocollimator at one corner of the surface plate

2. Sight to reflecting targets at other corners and edges

3. Record angular measurements at a grid of points across the surface

4. Calculate flatness deviation from angular measurements

This method achieves measurement uncertainty below 0.5μm/m when performed correctly. Most precision tool rooms have autocollimators or can access them through calibration laboratories.

Method 2: Electronic Level Traverse Method

Electronic levels (like our Swiss WYLER instruments) measure surface inclination at multiple points. By traversing the level across the surface in systematic patterns and recording inclinations, you can calculate flatness deviations.

Procedure:

1. Establish a reference baseline using three points

2. Traverse the level in parallel paths across the surface

3. Record inclination at regular intervals (typically 50-100mm for precision work)

4. Calculate surface deviation using standard algorithms

This method works well for larger surface plates where autocollimator sighting distances become impractical.

Method 3: Touch-Contact Height Variation

For buyers without autocollimators or electronic levels, a simpler verification approach exists using a precision height gauge and surface plate itself:

1. Zero the height gauge on a known reference surface

2. Touch the gauge contact to the plate surface at multiple points

3. Record relative height variations

4. Compare maximum-minimum range to expected flatness specification

This method won’t achieve μm precision without controlled technique, but it detects gross out-of-tolerance conditions that indicate major problems.

The Three Verification Details Most Buyers Miss

Detail 1: Repeatability Verification

Surface plate flatness can degrade during transport. Vibration, thermal cycling, and handling stress can induce dimensional changes that affect precision surfaces. Before accepting delivery, perform repeatability checks:

How to test:

1. Measure flatness at time T1

2. Remove the surface plate from your measurement setup entirely

3. Return the plate after 30 minutes and re-measure

4. Compare T1 and T2 results

What you’re checking:

If repeat measurements show significantly different results, the surface plate may have experienced transport damage or your measurement technique lacks consistency. Consistent repeat results build confidence; inconsistent results demand investigation.

Detail 2: Temperature Equilibrium Verification

Measuring a surface plate before it reaches thermal equilibrium with your environment introduces systematic errors. Granite’s thermal expansion coefficient (~5μm/m per °C) means temperature differences create proportional dimensional changes.

Standard requirement:

Most standards specify measurement only after the plate reaches 20°C (±1°C) and remains stable. Some require multiple hours of equilibration in the measurement environment.

Practical verification:

1. Record surface plate temperature using calibrated thermometer

2. Record ambient temperature and humidity

3. Compare to your measurement environment conditions

4. Document the equilibration period before measurement began

If your supplier’s certificate shows measurements at different temperatures than your receiving environment, you cannot directly compare results.

Detail 3: Edge and Corner Verification

Flatness specifications typically apply to the “working area”—typically defined as the area excluding the outer 5-10mm from edges. However, edge and corner conditions affect overall plate behavior:

What to check:

1. Visually inspect edges for chips, cracks, or impact damage

2. Verify that reinforcement or mounting features don’t induce stress on the precision surface

3. Check mounting hole locations if applicable—stress from improperly sized mounting hardware affects surface geometry

We’ve seen surface plates arrive with perfect center flatness but damaged edges from inadequate packaging. The plate technically met flatness specifications but required costly refinishing to restore full utility.

Pre-Shipment Inspection: What to Request from Your Supplier

Beyond your own verification, request specific inspection documentation before shipment:

Full Surface Mapping Data

Ask for complete measurement grid data—not just final flatness numbers. A single “Grade 00″ statement without supporting data leaves you unable to verify independently. ZHHIMG® provides full measurement records including:

• · Point-by-point elevation data
• · Measurement location diagram
• · Environmental conditions during measurement
• · Reference standards used

Calibration Certificates for Measurement Equipment

Request calibration certificates for the equipment used to verify your order. Verify:

• · Calibration is current (not expired)
• · Calibration laboratory is accredited
• · Uncertainty values are stated

If your supplier cannot or will not provide measurement equipment calibration documentation, their quality claims lack foundation.

Photographic Documentation

Request photos showing:

• · Surface condition under appropriate lighting
• · Serial number or identification marking
• · Measurement equipment setup
• · Environmental conditions

Visual documentation creates accountability and helps identify shipping damage when containers arrive.

Working with Suppliers on Verification Logistics

Incoming Inspection Timing

Schedule incoming inspection immediately upon container arrival—before moving plates to storage. Any delay between delivery and inspection complicates damage claims against shipping companies and freight insurance.

Environmental Preparation

Prepare your measurement environment before plates arrive:

• · Verify temperature control is operational
• · Confirm measurement equipment calibration is current
• · Prepare documentation templates for recording results
• · Assign trained personnel for inspection procedures

Dispute Resolution Procedures

Establish clear procedures before problems arise:

• · Define acceptable measurement tolerance for verification disagreements (typically ±10% of specification)
• · Specify inspection period before claims become time-barred
• · Identify third-party calibration laboratories for referee measurements
• · Document communication procedures for reporting concerns

Making Informed Grade Selections

Application Analysis Worksheet

Before specifying grade, analyze your actual requirements:

The Overspecification Trap

Buying Grade 00 when Grade 0 would suffice wastes money and introduces fragility. We’ve seen buyers specify Grade 00 plates for workshop tool-setting operations where environmental variations exceed the precision premium they paid for.

Match specifications to actual application requirements, not theoretical maximum precision.

FAQ

Q: Can I verify flatness without any specialized equipment?

A: Limited verification is possible using precision height gauges or comparators, though achievable uncertainty will be significantly higher than specifications. For critical applications, access to accredited calibration laboratories or temporary equipment rental provides proper verification capability.

Q: How long should a surface plate acclimate to my facility before measurement?

A: Most standards recommend minimum 24-48 hours equilibration for plates arriving from significantly different environments. For controlled-environment facilities, even brief temperature changes may require several hours for complete equilibrium.

Q: What inspection frequency is recommended for surface plates in use?

A: Industry guidelines typically recommend annual verification for Grade 0 and Grade 00 plates under normal use. Plates subject to heavy use, potential damage events, or environmental extremes may require more frequent verification.

Q: How do I verify calibration is traceable?

A: Request calibration certificates showing the unbroken chain from your measurement standard through intermediate standards to national metrology institutes. ZHHIMG® calibration references NIM (National Institute of Metrology of China), which participates in international mutual recognition arrangements.

Q: Should I inspect every plate or use sampling inspection?

A: For small orders (under 10 plates), 100% inspection is practical. For large orders, statistical sampling based on AQL (Acceptable Quality Level) standards provides reasonable assurance while reducing inspection burden. Define sampling plans in your quality agreements.

Q: What documentation should I retain from inspection?

A: Maintain inspection records including measurement data, environmental conditions, equipment calibration references, inspector identification, and comparison to specification requirements. These records support supplier quality discussions and demonstrate due diligence if disputes arise.
