Different markets demand different flatness standards. ZHHIMG® manufactures to German DIN876, American ASME/JIS, Chinese GB, British BS, French NF, and Russian GOST specifications—and provides measurement documentation compliant with each standard’s unique requirements.
The International Standards Challenge Nobody Warns You About
A precision equipment buyer in Stuttgart orders surface plates quoting “German standards.” A purchasing manager in Yokohama specifies “JIS compliance.” A procurement team in São Paulo requests “ASME certification.” All three believe they’re asking for the same thing: precision granite surface plates that meet their national requirements.
They’re not. Each nation’s precision measurement standards define flatness tolerances, testing methods, environmental conditions, and documentation requirements differently. A surface plate certified to one standard might not pass inspection under another’s testing protocol—even if manufactured identically.
This isn’t academic hair-splitting. It creates real business problems. We’ve seen buyers reject shipments that met their supplier’s claimed standard but failed inspection under the buyer’s required verification protocol. We’ve watched containers sit in ports while manufacturers scrambled to generate documentation in required formats.
Understanding these differences before you order prevents expensive misunderstandings.

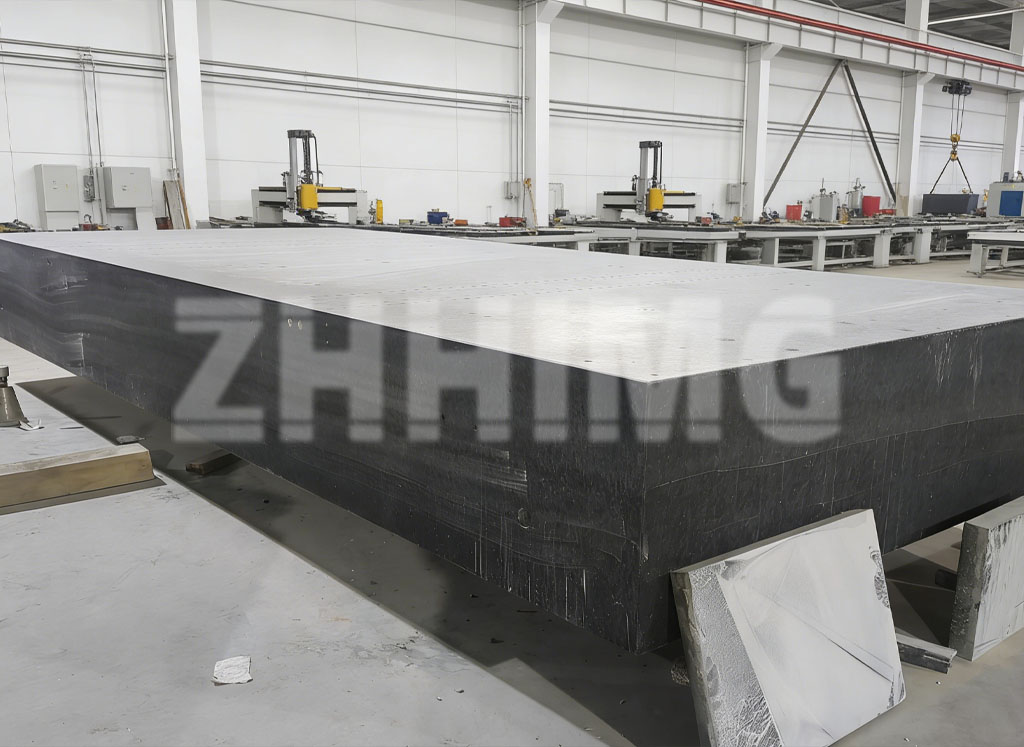

The Standards Landscape for Precision Granite Surface Plates
DIN876: Germany’s Precise Requirements
Deutsche Industrie Norm (DIN) standards represent some of the world’s most demanding precision specifications. DIN876 defines granite surface plate tolerances with characteristic German technical thoroughness:
Flatness grades: DIN876 specifies three grades—0 (finest), 1, and 2—with tolerances scaled to plate size. For a 1,000×630mm plate, Grade 0 requires flatness within 2μm, Grade 1 within 4μm, and Grade 2 within 8μm.
Testing methodology: DIN testing emphasizes repeatability. The standard specifies minimum number of measurement runs, environmental stabilization requirements, and calculation methods for flatness determination.
Material requirements: DIN876 includes specific requirements for granite material properties—minimum compressive strength, maximum water absorption, and grain size limitations.
ZHHIMG® manufactures to DIN876 specifications for all European customers. Our measurement reports include DIN-compliant data tables, environmental condition logging, and reference to DIN876:2000 testing protocols. When German buyers audit our facility, they find their quality assurance personnel comfortable with our procedures because we’ve designed them to match DIN expectations.
ASME B89.7.3.1: America’s Performance-Based Approach
The American Society of Mechanical Engineers publishes B89.7.3.1, “Guidelines for Decision Matrix: Machine Tool Assessment Evaluation Criteria.” While not exclusively a surface plate standard, ASME B89 standards family provides the framework for precision measurement equipment evaluation in North American aerospace, defense, and commercial manufacturing.
Distinctive features: ASME standards emphasize performance verification over prescriptive manufacturing methods. The standard focuses on what the surface plate actually measures like, not how it was manufactured.
Uncertainty requirements: ASME B89.7.3.1 includes uncertainty budget requirements for measurement processes. A surface plate alone doesn’t meet ASME standards—your complete measurement system must demonstrate acceptable uncertainty.
Documentation expectations: American buyers expect comprehensive certificate packages including measurement data, equipment calibration records, and uncertainty statements.
We’ve worked extensively with GE, Bosch, and Flex suppliers requiring ASME-compliant documentation. Our AS9100-certified customers particularly appreciate our ability to generate first-article inspection reports (FAIRs) following AS9102 requirements.
JIS B7513: Japan’s Precision Culture
Japanese Industrial Standards (JIS) reflect Japan’s distinctive manufacturing culture where precision extends beyond technical requirements into operational philosophy. JIS B7513 defines surface plate specifications with tolerances comparable to DIN but with unique testing protocols.
Grade system: JIS uses similar three-grade structure (0, 1, 2) but with slightly different tolerance values scaled to metric dimensions. JIS Grade 0 achieves tolerances essentially equivalent to DIN Grade 0.
Testing frequency: JIS standards recommend more frequent surface plate verification than some other standards, reflecting Japanese manufacturing philosophy of ongoing quality confirmation rather than one-time certification.
Surface texture requirements: JIS includes specific Ra (roughness average) requirements for surface plate measuring faces—something not explicitly defined in some other standards.
Our relationships with Japanese companies including THK, Hiwin, and Misumi customers have refined our understanding of JIS requirements. We maintain JIS-compliant calibration equipment and can generate measurement reports in formats familiar to Japanese quality assurance departments.
GB/T Standards: China’s National Framework
China’s GB/T (Guobiao/Tuijian) standards provide the national framework for precision manufacturing within China. GB/T 4986-2014 specifically addresses granite surface plates with specifications harmonized to some extent with international standards while maintaining Chinese measurement conventions.
Traceability requirements: Chinese GB standards emphasize calibration traceability to NIM (National Institute of Metrology of China), which participates in international metrology agreements.
Certification body expectations: Products intended for Chinese domestic use may require certification from designated testing laboratories.
For international buyers sourcing components manufactured in China, GB/T compliance demonstrates the manufacturer’s domestic quality infrastructure. ZHHIMG® holds GB/T certification alongside our international standards compliance.
BS, NF, and GOST: Secondary Markets
Beyond the major markets, ZHHIMG® maintains capability to produce documentation meeting British Standards (BS), French Norme Française (NF), and Russian GOST requirements.
BS 817: British surface plate standard with requirements similar to DIN but with UK-specific documentation expectations.
NF E11-010: French standard incorporating both European EN standards and French national specifications.
GOST 10905: Russian standard for surface plates used in manufacturing and measurement applications within the Russian market.
These markets represent smaller volumes for us but demonstrate our flexibility in serving global precision engineering requirements.
Why Multi-Standard Capability Actually Matters
Most precision granite manufacturers serve single markets. They hold DIN certification for European customers, ASME documentation capability for American buyers, and treat other markets as exceptions requiring special handling. This creates inefficiency and risk for buyers with multi-market operations.
ZHHIMG® maintains concurrent capability across all major standards. Our quality management system incorporates requirements from DIN, ASME, JIS, GB, BS, NF, and GOST into unified procedures where possible, while maintaining documentation templates for each standard’s specific format requirements.
What does this mean for you practically?
Single manufacturing run satisfies multiple certifications. If you need surface plates meeting both DIN and ASME specifications for different facilities, we can often produce to both standards simultaneously, saving manufacturing time and cost.
Documentation flexibility. Send us your required standard and format specifications, and we generate compliant certificates without requiring you to translate requirements into manufacturing specifications.
Audit confidence. International buyers conducting supplier audits find our multi-standard capability demonstrates genuine quality infrastructure rather than “just enough” compliance for individual orders.
Reading a Measurement Report: What the Documents Actually Show
When ZHHIMG® issues a measurement report, European buyers expect documentation formatted according to their inspection requirements. Here’s what our standard reports include:
Flatness Measurement Data
Our reports document actual measurement readings across the surface—not just final results. For a Grade 00 surface plate (≤0.5μm/m), we record:
- · Measurement grid point coordinates and readings
- · Environmental conditions during measurement (temperature, humidity)
- · Reference standard used and its calibration status
- · Calculated flatness deviation using minimum zone method
- · Comparison to specified tolerance
- · Measurement uncertainty statement
Calibration Traceability Chain
Each report references the calibration status of equipment used:
- · Instrument identification and calibration certificate number
- · Calibration laboratory and calibration date
- · Traceability link to national metrology institute
- · Statement of calibration uncertainty
Material Verification
Reports include granite material property verification:
- · Density measurement result
- · Compressive strength test data
- · Water absorption percentage
- · Grain size characterization
This comprehensive documentation satisfies both the measurement requirements and the documentation expectations of international precision engineering.
Matching Standards to Applications: Practical Buyer Guidance
Not every application requires the highest grade specification. Understanding which standard and grade applies to your situation prevents overspecification (paying for precision you don’t need) and underspecification (receiving products that fail inspection).
Use Grade 00 / DIN 0 / ASME Grade 00 equivalent when:
- · Coordinate measuring machines require the finest referencing
- · Optical and laser measurement systems need ultra-stable bases
- · Semiconductor and aerospace precision assembly occurs
- · Measurement uncertainty budgets require the lowest possible base contribution
Use Grade 0 / DIN 1 / ASME Grade 0 equivalent when:
- · Standard precision machining operations occur
- · Quality inspection uses comparators and dial indicators
- · General manufacturing support requires reliable referencing
- · Budget constraints limit specification options
Use Grade 1 / DIN 2 / ASME Grade 1 equivalent when:
- · Tool-setting operations don’t require extreme precision
- · Apprenticeship and training environments benefit from cost-effective solutions
- · Heavy manufacturing equipment requires large bases with moderate precision
- · Initial setup and rough positioning operations dominate usage
Our technical team helps buyers select appropriate grades based on their actual application requirements—not upsell to the highest specification.
The Standard Compliance Verification You Should Perform
Before accepting delivery of precision granite surface plates, perform your own verification to confirm the products actually meet the specified standards:
Verify calibration certificates are current and reference traceable standards.
Check environmental conditions during your verification match standard requirements—many standards mandate specific temperature ranges before measurement is valid.
Perform repeat measurements to confirm measurement process consistency.
Compare your results to the supplier’s documented measurements. Reasonable agreement (±10% typically) confirms manufacturing capability. Large discrepancies warrant immediate discussion.
Document everything including photos of nameplates, serial numbers, and measurement setups. This documentation protects you if disputes arise.
FAQ
Q: Can one surface plate be certified to multiple standards simultaneously?
A: Technically yes, if tolerances overlap sufficiently. However, each standard includes documentation and testing requirements specific to its framework. We typically provide separate certificates for each standard compliance claim, though one physical inspection can satisfy multiple standards where tolerances align.
Q: Which standard has the tightest flatness tolerances?
A: Tolerances are roughly comparable across major standards when accounting for plate size. German DIN 876 Grade 0 and JIS Grade 0 achieve essentially equivalent tolerances. ASME’s uncertainty requirements may demand tighter actual flatness to achieve the same measurement system uncertainty.
Q: Do you provide NIST-traceable calibration?
A: NIST (National Institute of Standards and Technology) traceability applies specifically to US calibration frameworks. For international shipments, we provide calibration traceable to NIM (China), which participates in CIPM mutual recognition arrangements. For US customers requiring explicit NIST traceability, we can arrange third-party calibration through accredited US laboratories.
Q: What’s the difference between a certificate and a report?
A: A certificate typically summarizes compliance with conclusions (“This surface plate meets Grade 00 specifications”). A report includes complete measurement data, methodology, and raw results. International buyers typically expect both—summary certificate for quick reference, detailed report for audit documentation.
Q: How long is calibration valid?
A: Calibration validity depends on the standard and usage conditions. Most precision surface plates require annual recalibration under normal use. Higher-grade plates or aggressive usage may require semi-annual verification. We recommend establishing recalibration schedules based on your quality system requirements.
Q: Can we use our own measurement standards to verify incoming products?
A: Absolutely—and you should. Your incoming inspection verifies the product meets specifications in your facility’s environmental conditions. Our certificates verify products met specifications in our manufacturing environment. Agreement between both sets of results builds confidence; significant disagreement warrants investigation.
