Granite Surface Plate Flatness: How to Read an Inspection Report

Granite Surface Plate Flatness: How to Read an Inspection Report

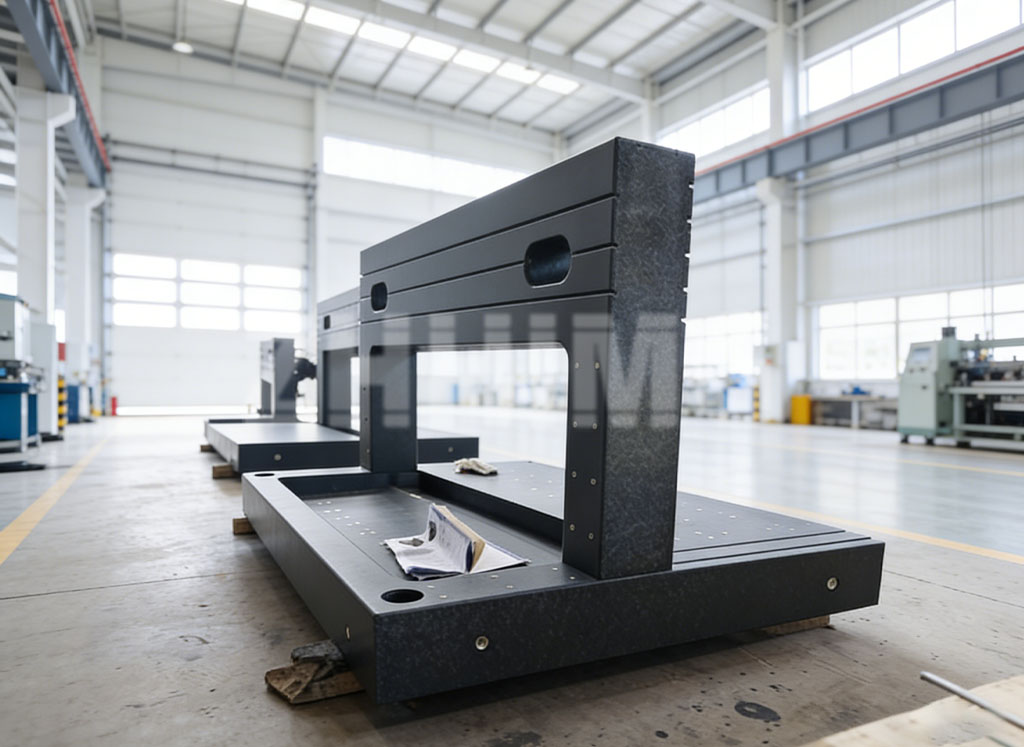

When a precision granite surface plate arrives, the number that matters most is on a piece of paper, not on the stone: the flatness result in the inspection report. Many buyers file that report away without reading it, because the terminology — datums, uncertainty, methods — looks like it belongs to the supplier’s world. It should not. A flatness report is the evidence that you got what you paid for, and reading it takes about ten minutes once you know which fields to check. This guide walks through a typical report field by field, explains what each one means, and lists what to ask for at delivery.

1. What a report must identify first: the object

Before any numbers, the report must unambiguously describe what was measured. Check that these fields match your purchase order:

Identification: part number, serial or batch number, and the drawing revision the part was made to. A report for “granite plate 1000 × 630″ means little if your order referenced a specific drawing revision with specific tolerances.

Dimensions: overall size and working-surface size. Some plates have lapped working areas smaller than the stone outline; the report should state which area the flatness value applies to.

Grade and standard: the claimed grade (for example grade 00) and the standard it follows. If your contract says “grade 00 per DIN 876″, the report should reference the same standard and grade — a report that says only “very high accuracy” is not evidence of anything.

2. Support, environment and method: the conditions behind the number

Flatness is not an intrinsic property of the stone alone — it is the flatness of a surface under specific conditions. The report must record:

Support condition: a surface plate is measured on its designed support (three-point or defined multi-point support). A plate measured on a pallet and the same plate on its support feet can show different values. Confirm the report states the support used.

Environment: room temperature and, ideally, temperature stability during measurement. Granite and air both move with temperature; a measurement taken on a floor that changes 3 °C during the shift is not comparable to one taken in a 20 ± 0.5 °C lab.

Method: how flatness was derived — for example repeated profile scans across the surface reconstructed into a plane, electronic levels, laser interferometer scans, or autocollimator methods. The method defines what was actually sampled. A report that names the instrument but not the procedure leaves the reader unable to judge coverage of the surface.

3. The result fields: flatness value, instrument and uncertainty

Three result fields deserve careful reading:

The flatness value itself: stated as the deviation between two parallel planes containing the whole surface, usually in micrometres. It should be reported against the tolerance with pass/fail, not as an isolated number. A value of 3.2 µm is meaningless until compared with the tolerance the contract required — for the size and grade involved.

Instrument identification: make, model and calibration status of the measuring equipment. The instrument’s own calibration certificate should be current. An instrument with a calibration sticker expired two years ago undermines everything else in the report.

Measurement uncertainty: the reported value should come with an uncertainty statement. As a rule of thumb, the uncertainty should be small relative to the tolerance being verified — if the tolerance band is comparable to the uncertainty, the “pass” is not a reliable pass. If a report shows no uncertainty at all, ask for it; a supplier who measures daily should have this figure at hand.

4. Checking the report against your purchase requirements

The final reading step is a cross-check, line by line:

If any red flag appears, ask before acceptance. A supplier who measures its own work seriously can answer each question from records within a day.

5. Why results cannot be compared out of context

A common and costly misunderstanding: a buyer sees “1.5 µm” on one supplier’s plate and “3 µm” on another’s and concludes the first is better. Without context, that comparison is invalid:

Size: flatness tolerance scales with plate size. A 3 µm result on a 2000 × 1500 mm plate can represent tighter workmanship than 1.5 µm on a 300 × 300 mm plate. Always compare value against the tolerance for that size and grade, not raw numbers.

Grade definitions differ between standards: grade labels under different standards are not interchangeable, and the same label can carry different tolerance tables. The standard version matters as well — tolerance tables have been revised over the years, so a report should let you identify which edition was applied.

Conditions differ: temperature, support and method all influence the measured value. A figure measured in a temperature-stabilised room is not directly comparable to one measured on a shop floor.

And a note on magnitudes: careful lapping achieves micrometre-level flatness, with the finest grades on large plates measured in single-digit micrometres. Terms like “nanometre-level flatness” applied to whole surface plates are not supported by standard tolerance tables — treat any such claim as a question to ask, not a spec to accept.

6. Documents to request at delivery and acceptance

For a smooth acceptance, ask the supplier to provide, with shipment:

The flatness inspection report (fields as above), the material data sheet for the actual stone (density, water absorption, compressive strength), calibration certificates for the measuring instruments used, and the supplier’s quality-system certificate if your auditor requires it. For resurfacing or recalibration work, the same logic applies — our quality inspection and resurfacing service issues updated reports with each service, and periodic recalibration can be scheduled through our assembly, calibration and inspection team.

If you plan to re-verify on your side, do it on the designed support, after the plate has stabilised at room temperature — an overnight soak in the lab is standard practice before re-measurement.

Frequently asked questions

What is the difference between the flatness value and the tolerance?

The tolerance is the requirement (a band defined by grade, size and standard); the flatness value is the measured result. The report shows both, and the plate passes only if the measured value falls inside the band.

Why does the same grade have different tolerances for different plate sizes?

Larger surfaces accumulate more deviation over a greater area, so tolerance tables scale with size. This is why comparing raw micrometre values between different plate sizes is misleading.

Can I verify the flatness myself after delivery?

Yes, but the result depends on conditions: use the designed support, let the plate stabilise at room temperature, and use a calibrated instrument and a documented method. Small differences from the supplier’s report are normal when conditions differ; large differences should be raised with the supplier with both measurement records on the table.

How often should a granite surface plate be recalibrated?

Many laboratories recalibrate annually, but the right interval depends on usage, wear and how critical the reference is. Track the drift between consecutive reports — a stable trend supports longer intervals; a rising trend calls for shorter ones or resurfacing.

What should I do if the report has missing fields?

Ask the supplier to complete it before acceptance. Missing environment, method or uncertainty fields do not prove a problem, but they do prevent you from judging the result — and a supplier serious about metrology will supply them quickly.
