Granite Surface Plate Grades Explained: DIN 876 vs ASME B89.3.7 vs Federal Spec GGG-P-463c

Granite Surface Plate Grades Explained: DIN 876 vs ASME B89.3.7 vs Federal Spec GGG-P-463c

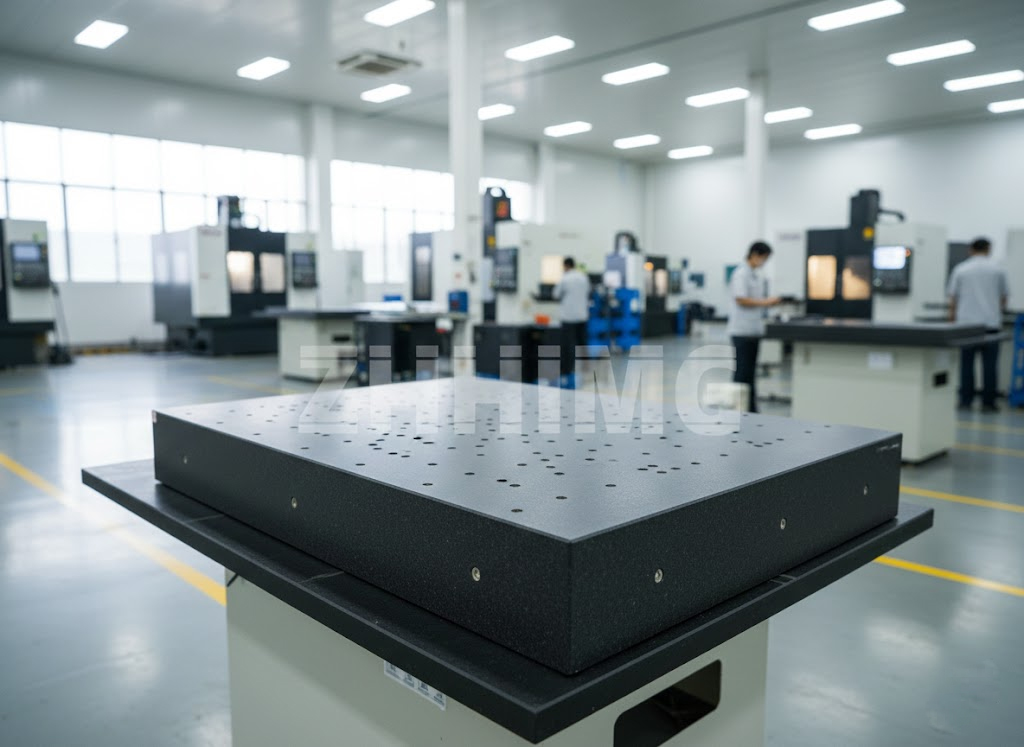

When a buyer compares quotations for a granite surface plate, the word “grade” appears everywhere and means slightly different things each time. Grade 00 under DIN 876, Grade AA under ASME B89.3.7 and the laboratory grades under US Federal Specification GGG-P-463c are related concepts, but they are defined by different documents, scaled by different formulas and verified by different procedures — so a grade label alone, without the standard and the plate size, does not specify an accuracy. This guide maps the grade ladders against each other, explains which grade fits inspection rooms versus workshops, summarises how flatness is actually measured, and points out where a certificate must be checked against the standard’s current text before you order.

1. What a grade actually specifies

In all of these standards, the grade of a surface plate is defined by the maximum permitted flatness deviation of the working surface — the distance between two parallel planes that contain every measured point — measured under defined support and temperature conditions. Two consequences follow. First, a grade value scales with plate size, so “grade 00″ without dimensions is an incomplete specification. Second, grades also control local deviation (how much the surface can vary within a small patch), because real inspection work contacts a small area at a time, not the whole face at once.

2. Grade naming across the three standards

The mapping above shows the correspondence in intent, not an equivalence claim. The standards differ in how tolerances are calculated (diagonal-based formulas versus fixed tables), in how local variation is controlled, and in what the calibration report must contain — so two “equivalent” grades from different standards are not automatically interchangeable on one purchase order.

3. Flatness tolerance figures — and how to use them responsibly

Published tolerance tables for DIN 876 are widely reproduced in the industry. The following values are quoted from a published table of DIN 876 tolerances (as reproduced by the plate manufacturer Darmet) and are given for orientation; the figures you order against must come from the current edition of the standard itself or from your supplier’s stated factory inspection standard:

Three cautions when using any tolerance table:

Edition matters. Standards are revised; grade tables have changed between editions. A figure remembered from an older copy, or from a third-party summary, is not a specification. Ask the supplier to state which edition and which tolerance table their quotation and certificate follow.

Standards are not mix-and-match. A drawing that takes the grade ladder from one standard and the local-deviation limits from another can produce a plate that satisfies neither document. If your contract names one standard, keep the whole tolerance system from that standard.

The certificate beats the table. What you actually receive is a measured value on the delivered plate. The grade tells you which band that value should fall in; the measurement tells you where it did.

For ASME B89.3.7, tolerances are commonly quoted as being derived from the plate diagonal, with Grade A at twice and Grade B at four times the Laboratory Grade AA value — a structure worth knowing, but again one whose exact figures should be taken from the current standard text, not from memory. Federal Specification GGG-P-463c defines its laboratory, inspection and tool-room grades for US procurement practice; for export orders the same rule applies: request the specific tolerance clause and edition the supplier certifies against.

4. Which grade for the inspection room, which for the workshop

A practical selection logic:

Metrology and calibration rooms: grade 00 (or DIN 876 grade 000 for reference work) makes sense where the plate itself must contribute negligible error — gauge calibration, master comparisons, work with tolerances in the low-micrometre range. These plates belong in temperature-stabilised rooms on their designed support.

Production QC and inspection: grade 0 is the workhorse for inspection departments checking machined parts against micrometre-scale tolerances. It balances capability against cost, and it tolerates normal laboratory discipline without demanding laboratory-grade environmental control.

Workshop and layout: grade 1 or 2 plates serve assembly halls, marking-out tables and first-line checks where environment fluctuates and the reference error budget is wider. Putting a grade 00 plate on a noisy shop floor wastes money and, worse, invites false confidence — the environment, not the plate, then sets the real accuracy.

A common engineering rule helps frame the decision: the plate’s contribution to measurement uncertainty should be a small fraction of the smallest tolerance you check on it. Work backwards from your tightest routine measurement, and let that decide the grade — not prestige. For background questions about material and accuracy claims, our granite FAQ collects the answers we give most often.

5. How flatness is measured

Whatever the standard, flatness verification follows the same logic: sample the surface along a defined pattern of lines, reconstruct the deviations relative to a reference plane, and report the total range plus the local variation. The usual instruments:

Electronic levels: precision inclinometers stepped along a straightedge across a grid of lines (commonly including the diagonals). Accessible, robust, and the standard method for shop calibration; accuracy depends on the step discipline and the level’s calibration.

Laser interferometry and autocollimators: optical methods that measure angular deviation along the scan lines with high resolution, used for laboratory-grade plates and for calibrating the equipment that calibrates other plates.

Repeat-reading checks: a small gage re-positioned across the surface to verify local variation, a requirement that appears explicitly in ASME practice and conceptually in other standards.

The measurement conditions are part of the result: designed support, stable temperature near 20 °C, and a documented method. A flatness figure without its conditions cannot be compared with any other figure.

6. What to state on your purchase order

To make quotations comparable and acceptance unambiguous, state: the standard and edition by name; the grade and the plate dimensions; whether local-deviation limits are required; the support condition; the required report contents (method, instrument, temperature, measured value against tolerance); and recalibration interval expectations. If in doubt, ask the supplier to quote “per the current edition of [standard], grade [X], with certificate” — and to say so explicitly on the document that ships with the plate.

Ready to specify your plate? Send ZHHIMG® your required standard, grade and dimensions through our granite surface plate inspection and resurfacing page or the enquiry form on any product page — our engineers will confirm the applicable tolerance table and quote with the certificate included.

Frequently asked questions

Is DIN grade 00 equivalent to ASME grade AA?

They target a similar application level — laboratory-quality reference surfaces — but they are defined in different documents with different tolerance formulas and different report requirements. Treat them as comparable in intent, and verify the actual tolerance values from each standard’s current text for the plate size involved.

Why do tolerance tables differ between sources?

Because standards are revised over time and third-party summaries sometimes reproduce older editions or simplify the formulas. This article’s DIN table is quoted from a published manufacturer’s reproduction of DIN 876 and is provided for orientation — the current standard edition is the authoritative source for ordering.

Can I upgrade a plate’s grade later by re-lapping?

Re-lapping can improve flatness and sometimes move a plate into a tighter grade band, but the plate must then be re-measured and re-certified against the standard. Wear history also matters; a plate that has drifted from heavy use may not hold a tighter grade. Ask for an assessment based on a current measurement rather than assuming.

How is flatness measured on a large plate?

By stepping electronic levels or optical instruments along a defined grid of lines including the diagonals, reconstructing the surface, and reporting total and local deviation. As plates grow, corner and edge regions become the critical zones, which is why the line pattern covers them.

What should the calibration certificate contain?

The plate identity and dimensions, the standard and grade claimed, measured flatness with method and instrument, the measurement temperature and support condition, the uncertainty statement, and the certificate date. If any of these are missing, the grade claim cannot be verified.
