Granite vs. Marble vs. Cast Iron: Why Modern Semiconductor Equipment Relies on Ultra-Dense Black Granite

In the sub-micron manufacturing domain—whether you are designing next-generation EUV lithography equipment, ultra-precise Coordinate Measuring Machines (CMM), or femtosecond laser scribers—mechanical stability is everything. A fraction of a micron in thermal drift or structural flexing can ruin a silicon wafer, cause multi-million-dollar optical misalignment, or leads to yield loss in advanced semiconductor packaging.

For decades, structural engineers relied heavily on cast iron for machine beds and bases. Then came commercial dimensional metrology plates made of marble or standard gray granite. Today, however, the global semiconductor and high-precision inspection industries have converged on a single standard: Ultra-Dense Black Granite.

Why has black granite rendered traditional materials obsolete for ultra-precision applications? This article breaks down the physical, mechanical, and metrological differences between cast iron, marble, and high-density black granite to help engineering teams make informed material selection decisions.

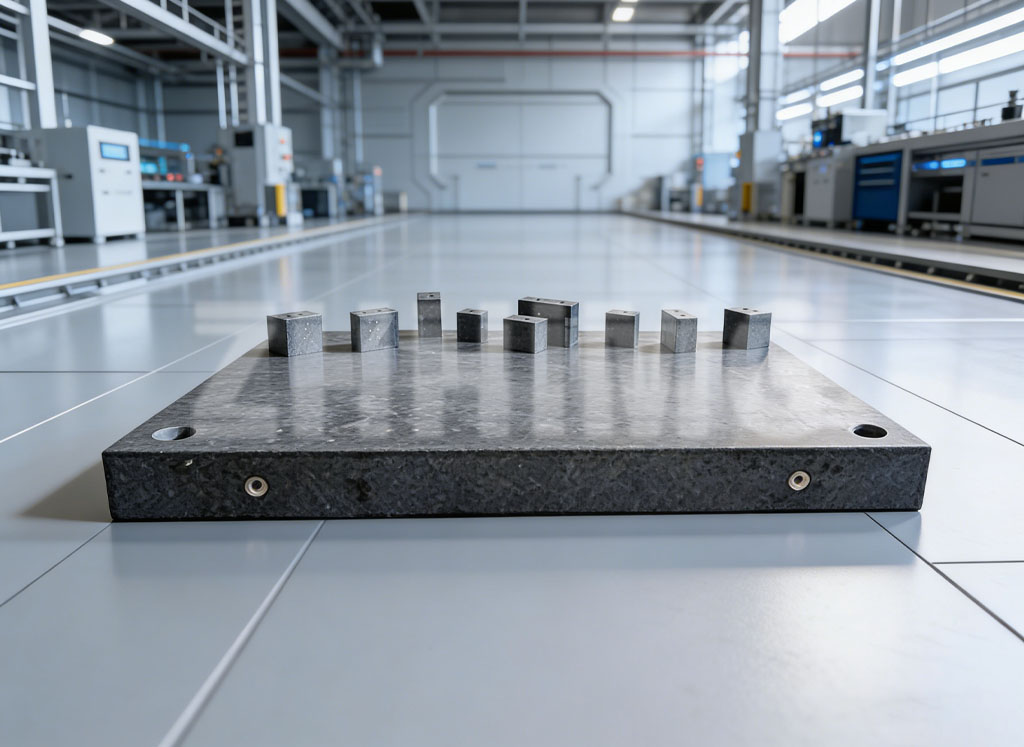

The Physical Material Matrix: A Direct Comparison

To understand why material selection impacts long-term sub-micron precision, we must evaluate physical properties: mass density, coefficient of thermal expansion (CTE), vibration dampening, and elastic modulus.

1. Thermal Inertia and Coefficient of Thermal Expansion (CTE)

Thermal fluctuation is the primary enemy of sub-micron tolerances. Cast iron responds almost instantly to ambient temperature swings, expanding or contracting at a rate of 10 to 12 microns per meter for every 1°C change.

While marble performs slightly better than metals thermally, its physical structure is prone to localized uneven expansion, causing internal warping.

High-density black granite (specifically stone with a density around 3100 kg/m³) possesses exceptional thermal mass and low conductivity. With a CTE as low as 4.0 – 4.5 x 10^-6 / °C, a solid black granite base acts as a thermal heat sink. It absorbs environmental micro-fluctuations in climate-controlled environments without immediate dimensional deformation, guaranteeing that guide-rail straightness remains intact throughout continuous 24/7 operating cycles.

2. Vibration Dampening and Structural Rigidity

When high-speed linear motors (XY tables) accelerate and decelerate across a PCB drilling bed or semiconductor inspection stage, they introduce high-frequency dynamic excitation.

• Cast Iron: Rings like a bell. Unfiltered resonance takes time to dissipate, forcing machine controllers to add settling time delays before taking precise measurements.

• Marble: Lacks the compressive strength and internal grain density needed to dampen heavy kinetic loads.

• Ultra-Dense Black Granite: Features a tightly locked crystalline structure formed under extreme geological pressure millions of years ago. It dissipates kinetic vibrations up to 15 times faster than cast iron. This high natural dampening capacity enables faster scan speeds, higher throughput, and immediate signal stability for optical sensors and AOI equipment.

3. The Low-Cost Trap: Why Cheap Marble Fails in Industrial Applications

In recent years, lower-tier suppliers have tried to lower cost profiles by substituting industrial-grade granite with low-grade commercial marble or soft, porous stone disguised as “black granite.”

For purchasing managers and engineers, this represents a severe risk:

1. Hygroscopic Deformation: Soft marble easily absorbs ambient humidity (water absorption >0.5%). As moisture content changes, the material swells internally, ruining sub-micron flatness tolerances within months of installation.

2. Softness and Wear: Marble has a low Mohs hardness rating. Placing precision workpieces or sliding air bearings across marble surface plates leaves scratches, burrs, and microscopic gouges that distort measuring baselines.

3. Corrosion and Chemical Attack: Coolants, cutting fluids, and industrial cleaners react chemically with marble, breaking down the stone matrix. High-grade natural black granite, by contrast, is completely rust-proof, acid-resistant, and non-magnetic.

Engineering Tip: Always verify material density certification. True ultra-precision grade granite must demonstrate a density approaching or exceeding 3100 kg/m³. If a vendor cannot provide traceable metrology lab calibration reports, you are likely buying porous stone that will deform under industrial loads.

4. Achieving Sub-Micron Precision: Machine Grinding vs. Hand Lapping

Material selection is only half the equation; the machining process defines the final accuracy class (e.g., DIN 876 Grade 000 or Grade 00).

While state-of-the-art multi-axis CNC grinding machines (such as 6-meter Nantter grinders) establish the initial macro-flatness of large granite bases, sub-micron and nanometer-level flatness cannot be achieved through mechanical grinding alone. Machine tool spindles inherently transfer micro-vibrations and localized thermal heat to the workpiece during grinding.

[Raw Granite Block]
       │
       ▼
[CNC Rough Milling & Shaping]
       │
       ▼
[Heavy CNC Surface Grinding] -> (Achieves DIN 876 Grade 0/1)
       │
       ▼
[Master Craftsperson Hand Lapping] -> (Removes micro-peaks at 0.5 um increments)
       │
       ▼
[Laser Interferometer Verification] -> (Achieves DIN 876 Grade 00 / Sub-Micron Flatness)

To eliminate micro-peaks and reach true optical-grade flatness, master craftsmen perform precise hand lapping in climate-controlled cleanrooms. Experienced technicians can sense surface variances down to a single micron simply by feel, removing microscopic layers of stone spot-by-spot. Combined with real-time feedback from Renishaw laser interferometers and electronic levels (such as WYLER systems), hand lapping ensures the base meets strict international standards including DIN 876, ASME B89.3.7, and JIS B7513.

Summary: Building Your Machines on a Rock-Solid Foundation

When engineering ultra-precision equipment, your machine structure is only as reliable as the foundation it sits on. While cast iron remains suitable for heavy structural cutting forces, and marble belongs strictly in architecture, ultra-dense black granite (3100 kg/m³) is the non-negotiable benchmark for semiconductor, optics, and sub-micron metrology.

It delivers zero residual stress, immunity to magnetic fields, immunity to rust, unmatched thermal inertia, and the ability to be hand-lapped to nanometer-level tolerances.
