In the world of ultra-precision, the surface plate is your “zero point.” If your zero is off, everything you measure is a lie.
At ZHONGHUI Group (ZHHIMG), we often see customers overspending on Grade 00 plates for rough workshop tasks, or worse—risking quality by using a Grade 2 plate for semiconductor assembly.
So, how do you pick the perfect match? Let’s break down the ISO 8512 standard (and its equivalents like DIN 876 and GB/T 22095) into plain English, so you can make the right call for your budget and your precision needs.

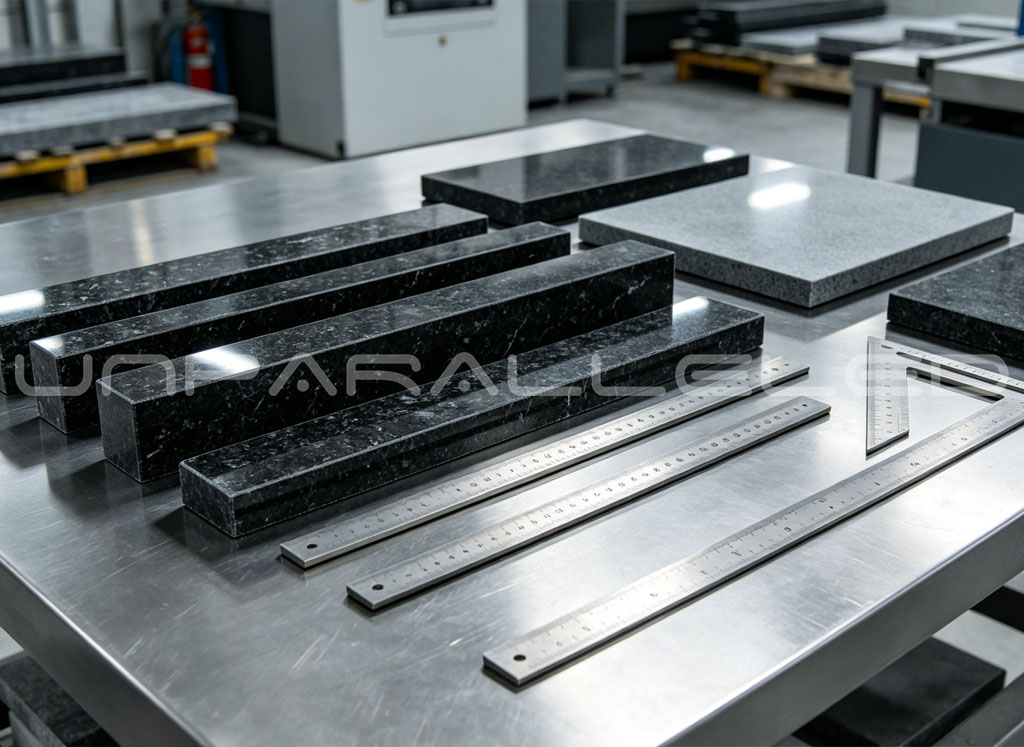

The Hierarchy of Precision: Grades 00, 0, 1, 2, and 3
Think of surface plate grades like golf handicaps—the lower the number, the better the performance. The accuracy is defined by a formula involving the plate’s diagonal length, but here is the practical translation of what these grades actually mean for your daily work:
Grade 00 (The Laboratory Master)
- Where it lives: Strictly in temperature-controlled metrology labs (20°C ±2°C).
- The Use Case: This is your primary reference standard. You use it to calibrate other plates, or for inspecting ultra-precision gauge blocks and high-end semiconductor components.
- ZHHIMG Insight: At our facility, our Grade 00 ZHHIMG granite plates are kept in our 10,000m²恒温恒湿 (constant temperature and humidity) workshop. We use Swiss WYLER electronic levels and Renishaw laser interferometers to verify them. If you aren’t in a climate-controlled room, Grade 00 might be overkill.
Grade 0 (The Precision Standard)
- Where it lives: Precision inspection rooms and high-end assembly areas.
- The Use Case: This is the workhorse for toolrooms and quality control departments. It’s perfect for checking tight-tolerance parts, setting up CMMs (Coordinate Measuring Machines), and precision layout work.
- The Sweet Spot: If you are manufacturing molds or aerospace components, Grade 0 is likely your daily driver.
Grade 1 (The Workshop Warrior)
- Where it lives: The production floor.
- The Use Case: This grade is tough enough for the shop floor but accurate enough for most machining setups. It’s ideal for tooling setups, first-article inspections, and general machining centers.
- Pro Tip: Grade 1 plates are often used for “grading down.” You use a Grade 0 plate to periodically check and recalibrate your Grade 1 plate.
Grade 2 & 3 (The Heavy Lifters)
- Where it lives: Welding bays, heavy assembly, and rough layout.
- The Use Case: These are for setting up heavy machinery, welding fixtures, or basic layout work where tolerances are looser (e.g., ±0.1mm or more).
- Note: For heavy dynamic loads (like engine testing), we often recommend Cast Iron with T-slots (per ISO 8512-1) rather than granite, as granite can be brittle under heavy impact.
Beyond the Grade: The “Hidden” Specs That Matter
Selecting the grade is step one. But as a manufacturer that supplies giants like Samsung and Bosch, we know that “Grade” isn’t the only number that counts. Here are the details that separate a generic plate from a ZHHIMG precision component:
1. Surface Roughness (Ra)
You can have a perfectly flat plate, but if the surface is rough, your gauge blocks will stick (wring) inconsistently.
You can have a perfectly flat plate, but if the surface is rough, your gauge blocks will stick (wring) inconsistently.
- The Standard: For Grade 0 and 1, we ensure a surface roughness of Ra ≤ 0.8μm.
- Why it matters: A smoother surface means less friction, easier sliding of精密 components, and more repeatable measurements.
2. Material Density (The ZHHIMG Difference)
This is where we differ from the “cheap” market. Many suppliers sell marble or low-density stone as “granite.”
This is where we differ from the “cheap” market. Many suppliers sell marble or low-density stone as “granite.”
- The Fake: Standard marble is ~2600kg/m³. It wears out and flexes.
- The Real Deal: ZHHIMG Black Granite is ≈3100kg/m³. This high density means superior rigidity and vibration damping. It stays flat longer because it resists the internal stresses that warp lesser stones.
3. The Human Element: Hand Scraping
Machines can grind a plate flat, but they can’t create the oil-retaining pockets needed for longevity.
Machines can grind a plate flat, but they can’t create the oil-retaining pockets needed for longevity.
- Our Secret Weapon: Our master grinders have over 30 years of experience. We call them “walking electronic levels.” They hand-scrape the surface to ensure the required number of contact points (e.g., 20-25 points per 25mm² for high grades). This tactile skill ensures the plate doesn’t just measure well today, but stays stable for years.
Quick Selection Cheat Sheet
| Your Application | Recommended Grade | Environment |
|---|---|---|
| Calibration Lab / Standards Room | Grade 00 | 20°C Constant Temp (恒温) |
| CMM Base / Precision Inspection | Grade 0 | Clean Room / Lab |
| Tool Room / Mold Making | Grade 0 or 1 | General Shop Floor |
| Machine Setup / Welding | Grade 2 or 3 | Rough Environment |
| Heavy Engine Testing | Cast Iron (Grade 0/1) | Dynamic Load Area |
Final Thoughts from ZHHIMG
At ZHONGHUI Group, our mission is to promote the development of the ultra-precision industry. We believe that “The precision business can’t be too demanding.”
Don’t guess with your precision. Whether you need a massive 20-meter granite bed for a gantry machine or a compact Grade 00 lab plate, choose a partner that understands the physics behind the flatness.
Need help calculating the specific tolerance for your plate size?
Our team is trained in DIN, ASME, JIS, and ISO standards. Contact us today, and let’s ensure your foundation is rock solid.
