How ZHHIMG 1μm Precision Granite Straight Rulers Eliminate Vibration in High-End Machine Assembly When assembling ultra-precision manufacturing machinery—such as semiconductor photolithography equipment, high-speed AOI optical testers, or precision laser scribers—mechanical vibration is the silent enemy of yield and accuracy. Engineers often spend months troubleshooting parasitic vibrations, resonance frequencies, and micro-chatter in multi-axis motion stages, only to realize the root cause lies in micro-deviations introduced during the foundational structural assembly.
Eliminating high-frequency line vibrations requires an uncompromising physical reference. ZHHIMG’s 1μm Precision Granite Straight Rulers serve not merely as passive dimensional checking tools, but as active vibration-isolation foundations during high-end machine build-outs.
The Hidden Culprit: Assembly Geometry as a Vibration Generator
In high-speed dynamic systems, such as linear motor drives moving at accelerations above 2G to 3G, even a sub-micron parallelism error along linear motion guides creates a non-uniform mechanical pre-load on recirculating ball bearings or air bearing pads.
Uneven Dynamic Pre-load: If two parallel linear rails diverge or converge by just 2 μm, the slide blocks experience cyclic stress variations as they move. This cyclical loading acts as a continuous mechanical excitation force, triggering high-frequency structural vibration.
Resonant Amplification: These microscopic alignment errors interact with the machine frame’s natural frequencies, causing resonance that compromises tool positioning and surface finish.
By using reference tools with absolute geometric fidelity during rail mounting and bed leveling, engineers prevent these forced vibration sources before the machine is ever powered on.
Why Metal Rulers Fail Where 1μm Granite Rulers Excel
For decades, cast iron and steel straight edges were standard in machine tool assembly. However, in modern ultra-precision environments, metallic reference rulers introduce structural instabilities that make vibration control virtually impossible:
Material Density & Rigidity: Cast iron rulers average around 7,200 kg/m³, whereas ZHHIMG utilizes natural Black Granite with a high density of approximately 3,100 kg/m³, providing superior physical stability and rigidity without excess structural deflection.
Internal Vibration Damping: Metal rulers exhibit low internal damping and resonate easily like tuning forks when subjected to kinetic energy. ZHHIMG black granite possesses exceptional natural material damping that absorbs residual energy from torqueing fasteners rather than transferring micro-vibrations into the measuring setup.
Thermal Expansion Resistance: Cast iron has a high thermal expansion coefficient (≈10.5×10
−6
/K), making metal rulers prone to thermal bending (bimetallic effect) from technician hand heat or shop-floor ambient swings. ZHHIMG granite has an extremely low coefficient (≈3.5×10
−6
/K), preserving its 1μm absolute straightness regardless of minor temperature variations.
Zero Long-Term Internal Stress: Metallic alloys are prone to distortion over time due to residual manufacturing stress. Natural granite, aged over millions of years, possesses zero internal stress, guaranteeing long-term dimensional permanence.
The Metrology Backing Behind the 1μm Promise
Claiming 1-micron straightness across an extended reference edge requires verification methods that surpass standard factory inspection. Every ZHHIMG precision granite straight ruler undergoes multi-stage modal and dimensional testing:
Optoelectronic Alignment: Calibrated via Renishaw laser interferometers and WYLER electronic levels capable of detecting sub-arcsecond angular tilts.
Traceable Standard Compliance: Inspected against global metrology frameworks including DIN 874, ASME, JIS, and GB standards, supported by calibration certificates directly traceable to National Metrology Institutes.

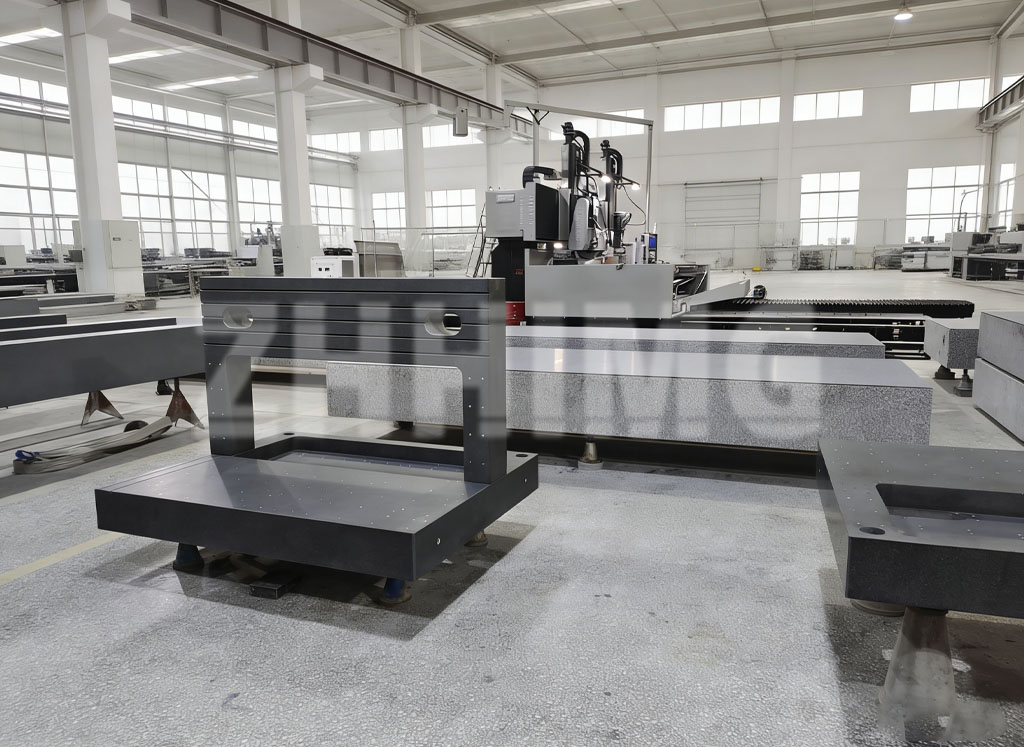

Massive Load Stability: Manufactured in a dedicated production environment featuring 1,000mm military-grade reinforced concrete floors and 2,000mm anti-vibration isolation trenches, ensuring zero environmental vibration footprint during the manufacturing and testing phase itself.
Practical Application: Zero-Vibration Rail Alignment Protocol
When integrating high-precision linear motor stages or air-bearing slides, top semiconductor equipment manufacturers utilize ZHHIMG granite straight rulers through a standardized zero-vibration setup:
Stage 1: Master Optical Datum Setup — The ZHHIMG ruler is mounted using kinematic support points (Köster points) to prevent flexural sag and establish an absolute physical datum.
Stage 2: Differential Micro-Measurement — Inductive probes or 0.5μm Mahr indicators continuously map the rail travel against the granite edge.
Stage 3: Eliminating Binding Forces — Technicians shim and lock the guide rails within 1 μm of absolute straightness and parallelism, completely removing the dynamic binding forces that generate assembly vibration.
Engineering Precision Without Compromise
As industrial equipment transitions into nanometer-scale execution, machine builders can no longer rely on low-grade stone or flexible metal reference tools. By establishing baseline geometric perfection with ZHHIMG 1μm Precision Granite Straight Rulers, machine builders eradicate the root cause of mechanical vibration, guaranteeing smooth motion profiles, lower thermal generation, and peak operation lifetime for next-generation technology equipment.
