Choosing between precision casting and precision CNC machining dictates a metal component’s unit cost, structural integrity, lead time, and achievable dimensional tolerances. Engineers and procurement managers often face a common dilemma: cast complex geometry near net shape to reduce material waste, or machine directly from solid billet stock for uncompromised dimensional accuracy?
Neither process holds a total monopoly across industrial manufacturing. While precision casting excels at producing intricate internal voids and high-volume structural housings, precision machining remains the gold standard for tight geometric tolerances, micro-inch surface finishes, and low-volume prototype flexibility.
Evaluating the fundamental trade-offs between casting and machining clarifies which route—or hybrid workflow—fits your engineering and budget constraints.
Process Fundamentals: Material Removal vs. Phase Transformation
Understanding the physical transformations involved highlights why these two methods yield vastly different part characteristics.
+--------------------------+-------------------------------+-------------------------------+
| Process Feature | Precision Casting (Investment)| Precision CNC Machining |
+--------------------------+-------------------------------+-------------------------------+
| Primary Mechanism | Liquid metal mold filling | Subtractive billet removal |
| Typical Flatness / Tol. | ±0.05 mm to ±0.20 mm | Down to ±0.002 mm (2 µm) |
| Surface Finish (Ra) | 1.6 to 6.3 µm | 0.2 to 1.6 µm (Grinding <0.1) |
| Internal Geometries | Excellent via ceramic cores | Limited by tool access/reach |
| Initial Tooling Investment| High (Wax molds & tooling) | Minimal (Workholding/fixtures)|
| Material Scrap Rate | Low (Near-net shape) | High (Up to 70%+ billet scrap)|
+--------------------------+-------------------------------+-------------------------------+
Precision Casting (Investment / Shell Mold)
Metal alloys are melted and poured into a ceramic or sand mold cavity, cooling into a near-net shape. Investment casting (lost-wax) handles complex thin walls, internal passages, and organic contours that cutting tools simply cannot reach.
However, molten metal shrinkage during solidification introduces inherent dimensional variance. Achieving sub-micron flatness or true perpendicularity across large spans directly out of a mold remains physically impossible.
Precision Machining (CNC Milling, Turning, Grinding)
Starting from solid wrought billet, forged bar stock, or plate, CNC cutting tools subtract material until reaching the final CAD model boundary. Because wrought metal lacks internal porosity and cooling voids, machined components deliver superior fatigue strength, predictable density, and micron-level dimensional control.
Dimensional Accuracy and Metrology Limits
When evaluating tolerances, precision machining consistently outperforms raw casting capabilities.
-
Linear Tolerances: Investment casting generally holds tolerances around ± 0.1 mm per 25 mm of dimension. High-precision 5-axis CNC mills routinely achieve ± 0.005 mm , with high-precision surface grinders reaching sub-micron thresholds.
-
Surface Topography: As-cast surfaces exhibit micro-porosity and grain boundaries that trap air or fluids. Machined surfaces achieve fine Ra values suitable for static vacuum seals, air bearing sliding surfaces, and optical mounts.
-
Internal Stresses: Castings contain residual thermal stress from cooling cycles, requiring stress-relief annealing before critical finish machining. Extruded or forged billets used in CNC machining offer more predictable grain structures.
Cost Structure: Tooling Amortization vs. Production Volume
Procurement decisions rarely boil down to tolerances alone. Total cost per unit shifts dramatically as production volumes scale.
UNIT COST VS. PRODUCTION VOLUME
Unit Cost
│
High │ [ Machining ] \
│ \ (Breakeven Point)
│ \ /
│ X
│ / \
Low │ / \ [ Precision Casting ]
└─────────────────┴─────┴────────────────────────
Low (1-100 pcs) High (1,000+ pcs)
Volume
-
Low-Volume / Prototype Stage (1 to 100 parts): Precision CNC machining wins decisively. Tooling costs are limited to standard cutters and modular workholding fixtures, allowing immediate spindle movement from 3D models.
-
High-Volume Production (1,000+ parts): Precision casting becomes cost-effective. High initial mold and wax-injection die costs amortize over thousands of parts. Savings on raw material usage and shortened CNC cycle times quickly offset initial tooling expenses.
The Hybrid Reality: Casting + Precision Finish Machining
High-end industrial equipment manufacturers rarely choose strictly one over the other. The standard industry workflow combines the strengths of both: casting for bulk geometry, followed by CNC machining and grinding for functional interface surfaces.
Consider heavy machine tool bases, coordinate measuring machine (CMM) frames, or high-precision industrial camera mounts:
-
Bulk structures are cast to minimize raw metal consumption and rough machining time.
-
Mating faces, linear guide mounting tracks, and thread holes are subsequently finish-machined on heavy-duty CNC centers.
-
Final critical reference planes are precision-ground or hand-lapped to micron tolerances.
At our Jinan manufacturing center, processing heavy metal bases involves large-scale CNC milling and long-bed surface grinding machines capable of handling workpieces up to 6000 mm in length.

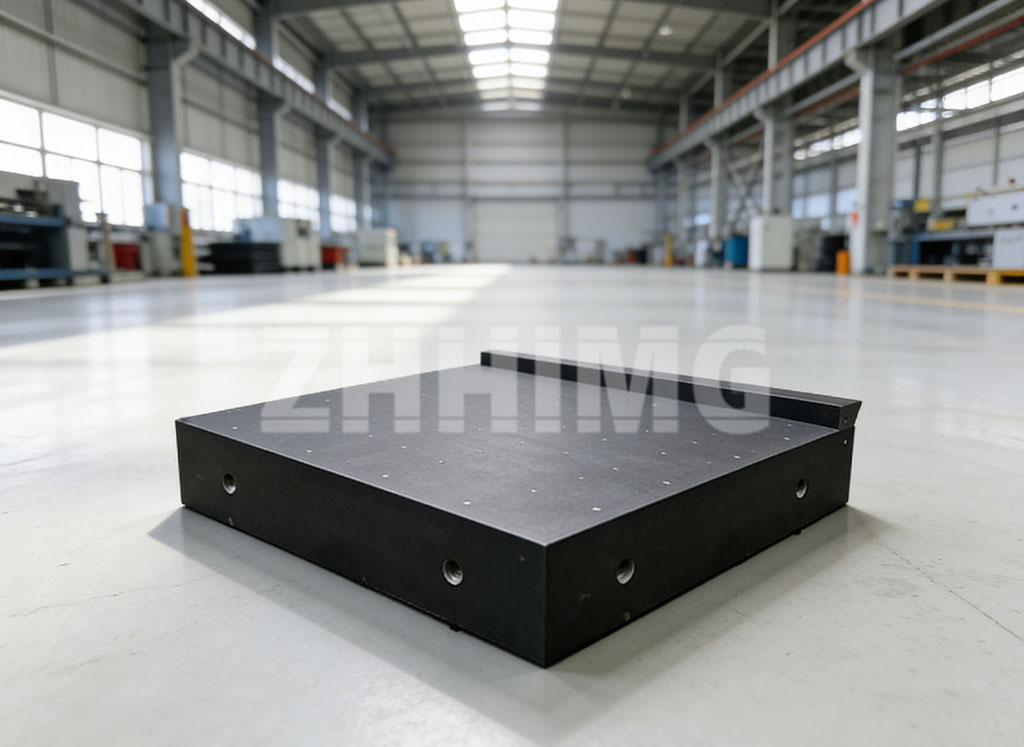

Combining cast or welded metal structures with ultra-precise finishing—or substituting metal bases with high-density ZHHIMG® black granite (≈ 3100 kg/m³) when thermal expansion must be eliminated—gives global engineering teams flexibility across dynamic machine design.
Selection Decision Matrix for Procurement & Engineering
Before issuing a Purchase Order or finalizing CAD drawings, ask these core questions:
PROCESS SELECTION FLOW CHART
Does the part require <10 µm tolerances
or <0.8 µm Ra surface finish?
/ \
Yes No
/ \
Are internal voids/thin Is annual volume > 1,000 units?
walls required? / \
/ \ Yes No
Yes No / \
│ │ [ Precision Casting ] [ CNC Machining ]
▼ ▼
[ Hybrid: Cast near-net shape + CNC finish critical faces ]
-
What is the critical tolerance? If any feature specifies tightness below ± 0.01 mm , that face must be machined, regardless of how the primary body is formed.
-
What are the annual production volumes? Small batches favor direct billet machining. Multi-thousand runs justify casting molds.
-
What environment will the component operate in? High-vibration or high-vacuum applications require non-porous billet machining or stress-relieved castings verified via non-destructive testing (NDT).
Understanding these manufacturing boundaries ensures your component meets both functional accuracy demands and budget goals.
