Ask most buyers what a precision measurement equipment maker sources from outside, and the answers usually include granite bases, ceramic structures, and machined metal frames. Glass rarely comes up — yet in many of the most demanding instruments, from semiconductor inspection tools to optical metrology systems, precision glass components are doing quiet, critical work: transmitting light where a measurement depends on it, staying chemically inert in aggressive environments, and holding geometry where temperature would move other materials. This guide explains what precision glass components do in industrial metrology, why machining them is difficult, and what a buyer should check when qualifying a precision glass machining supplier.

Why Glass Earns a Place in Precision Equipment

Glass occupies a unique position among engineering materials. Three properties drive most selection decisions:

• Optical transparency. Windows, viewports, and optical paths require a material that does not block or distort the light the instrument depends on. No metal or ceramic offers this combination of transparency and manufacturability.
• Chemical inertness. Glass resists acids, solvents, and plasma exposure far better than most metals. In semiconductor process and inspection environments, where a component cannot contaminate the chamber or react with process chemicals, this is often the deciding property.
• Thermal and dimensional stability. Glass expands and contracts less than metals and does not creep. A machined glass reference holds its geometry across normal temperature swings, which supports measurement repeatability.

Glass is also non-magnetic and electrically insulating, which matters around magnetic actuators, coils, and sensors. The trade-off is equally well known: glass is brittle. Everything about precision glass machining follows from managing that brittleness.

The Machining Challenge: Working a Brittle Material to Tight Tolerances

Machining glass is fundamentally different from machining metals. A ductile metal part can absorb a degree of aggressive cutting; glass cannot. The risks are chipping, subsurface cracking, and fracture — and the worst part is that subsurface damage is invisible at delivery. It surfaces later, as a spontaneous edge chip or a fatigue failure in service. Responsible glass machining therefore manages three things at once:

• Stock removal strategy. Grinding, milling, and drilling of glass use diamond tooling with carefully chosen parameters. Removal rates that would be trivial in aluminum will fracture glass; the process must balance speed against the mechanical integrity of the part.
• Edge and corner treatment. Sharp inside corners and unprotected edges are crack initiation points. Chamfers, radii, and edge grinding are not cosmetic — they are structural features that determine whether the part survives handling and thermal cycling.
• Surface finish and subsurface recovery. After rough machining, surfaces are fine-ground and lapped or polished to remove the damaged layer left by coarser steps. The finishing pass is what converts a machined blank into a precision component.

This is also why equipment matters. Diamond tooling in good condition, machines with low vibration, and clean handling protocols separate consistent glass suppliers from occasional ones. At ZHHIMG, glass machining runs inside the same temperature-controlled, dust-controlled facility as our granite and ceramic production, on equipment dedicated to ultra-precision work — an environment where brittle-material chips and abrasive dust are managed rather than tolerated.

Where Precision Glass Components Are Used

Semiconductor Inspection and Process Equipment

Wafer inspection tools, metrology stations, and process chambers use glass for windows, optical plates, and insulating fixtures. The requirements combine flatness, edge quality, and cleanliness — a chip or a particle source inside a wafer tool is a yield event. Glass components for this sector are typically specified with tight geometric tolerances, defined edge treatments, and cleaning standards before packing.

Optical Platforms and Instrument Structures

Optical benches, laser assemblies, and measurement instruments use machined glass for spacers, base plates, and alignment references where optical paths must pass through or where transparent positioning features are needed. Dimensional stability over time is the headline requirement: an optical reference that drifts invalidates calibration.

Special-Environment Measurement References

In aggressive chemical environments, high-humidity inspection stations, and applications with magnetic fields, glass reference parts — gauge surfaces, locating blocks, wear plates — replace metal parts that would corrode, magnetize, or contaminate. Our glass leveling block products are an example of glass parts used as functional references in equipment assembly.

Glass Processing Machinery Itself

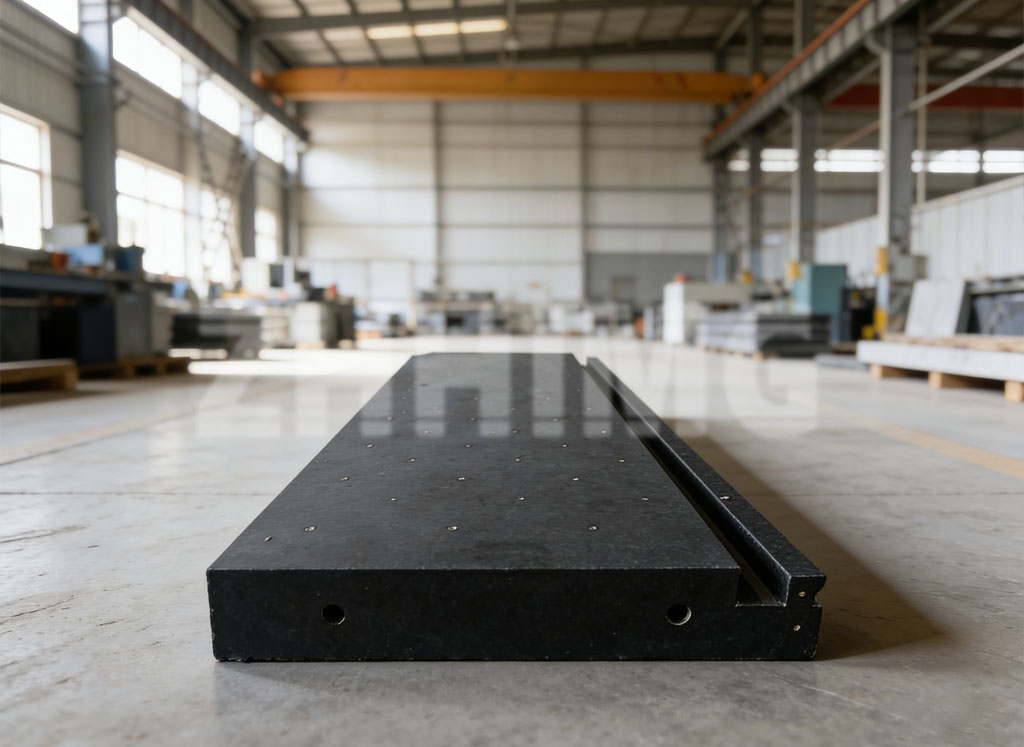

An often-overlooked point: equipment that machines glass needs the same precision infrastructure as any other ultra-precision tool. We manufacture granite machine bases for glass engraving and machining equipment, which puts us on both sides of the equation — we understand the machining process our customers’ machines perform, and we build the structures those machines depend on.

Quality Standards: What a Buyer Should Verify

Precision glass is an area where marketing claims are easy and verification is rare. A competent supplier should be able to demonstrate each of the following:

The inspection report deserves special attention. For glass components, the report should state the measurement instrument (laser interferometer, electronic level, coordinate measurement, or profilometer as applicable) and the temperature conditions during measurement. A report that only says “grade AA” or “high precision” tells a buyer nothing actionable. Our inspection and calibration documentation follows the same practice we apply to granite and ceramic components: measured values, instruments, and conditions — so incoming inspection at your facility can repeat what we did.

Why Combine Glass with Granite and Ceramic Sourcing

Many instruments need all three material families at once: a granite base for stability, ceramic parts for stiffness and wear resistance, glass parts for optical and chemical functions. Sourcing them separately means three suppliers, three inspection standards, and three sets of dimensional interfaces that were never engineered together.

ZHHIMG manufactures precision granite, ceramic, and glass components in one facility under one quality system, with in-house assembly and calibration for complete structural assemblies. When a window, a ceramic locator, and a granite base must meet at defined interfaces, one supplier can control the stack — and one inspection report can cover it. For maintenance environments that include glass parts, we also supply compatible cleaning fluid for glass and precision components, matched to the materials rather than chosen at random from a janitorial catalog.

How to Start a Glass Component RFQ

An effective first inquiry for precision glass parts includes:

• Drawings with tolerances on the functional surfaces (not every surface — over-tolerancing raises cost and rejects good parts).
• Glass type and grade if known; the application environment if not, so we can propose options.
• Optical requirements, if any: which surfaces transmit light, and what finish they need.
• Expected quantities and delivery cadence.
• Interface requirements — how the part mounts, what it contacts, where loads enter.

From there, our engineering team reviews manufacturability, flags brittleness risks (thin sections, sharp corners, stress concentrations), and quotes with a defined inspection plan. For OEM programs, first-article inspection and ongoing lot documentation are standard.

Frequently Asked Questions

Can glass parts really hold tight tolerances, given they are brittle?

Yes — brittleness affects the machining process, not the achievable precision. Once correctly lapped and polished, a glass component holds its geometry extremely well because the material does not creep and moves little with temperature. The key is a supplier whose process removes subsurface damage rather than hiding it.

Which glass types do you machine?

We machine a range of industrial and optical glass types. The right choice depends on the application: optical transmission requirements, chemical exposure, thermal environment, and mechanical load. Send the application details and we will confirm suitable grades and provide material data.

How are glass components protected during shipping?

Individually wrapped in lint-free material, edge-protected, and packed in cushioned cases sized to prevent movement. Long or thin parts are supported to avoid bending loads. Despite glass’s reputation, transit damage is almost always a packaging failure, and it is one we engineer against.

Do you supply glass parts assembled into larger structures?

Yes. Glass components can be supplied individually or assembled with granite, ceramic, and metal parts into complete structural assemblies, with final inspection performed on the assembled unit. This is often the cleanest option for OEM equipment builders.

What information do you need to quote a glass part quickly?

A drawing with functional tolerances, the glass type or the service environment, quantities, and any optical or cleanliness requirements. With those, we can usually respond with a manufacturability assessment and quotation promptly; without them, the conversation starts with engineering questions — which is exactly where it should.
