Precision Granite vs. Precision Ceramics: Which Material Is Better for High-Accuracy Components?

Precision Granite vs. Precision Ceramics: Which Material Is Better for High-Accuracy Components?

Precision granite and engineering ceramics occupy neighboring territory in ultra-precision engineering: both are hard, dimensionally stable, non-magnetic, corrosion-immune, and lappable or ground to outstanding geometry. Equipment builders regularly face the question — for this bracket, this measuring ruler, this air-bearing component, should the material be granite or ceramic? The honest answer is that neither material is universally better; different ceramic grades behave differently from each other, and the right choice depends on size, load, environment, and budget. This guide compares granite against the three dominant engineering ceramics — alumina, zirconia, and silicon carbide — and closes with a decision table you can apply to real components. If the decision is ambiguous for your part, send us the drawing and load conditions; ZHHIMG manufactures both material families, so the recommendation follows the engineering rather than the catalog.

First: “Ceramic” Is Not One Material

Comparing granite to “ceramics” without specifying grades is like comparing granite to “metals.” The three ceramics most used in precision components behave quite differently:

• Alumina (Al₂O₃). The workhorse. Good hardness, good wear resistance, moderate cost, available in large plates and complex shapes. The default choice for structural precision ceramics, including measuring tools and insulating fixtures.
• Zirconia (ZrO₂). The toughest of the three — significantly better fracture resistance, which matters for thin sections and edges. Lower thermal conductivity, higher density, and typically the highest cost. Chosen where impact or chipping risk dominates.
• Silicon carbide (SiC). The high-performance option: very high stiffness, low density, excellent thermal conductivity (helpful for thermal equalization), outstanding wear resistance — and the hardest to machine and the most expensive. Common in semiconductor wafer-handling and optical structures where stiffness-to-weight is decisive.

Granite, meanwhile, is the mature benchmark: superb dimensional stability, exceptional flatness achievable by hand lapping over large areas, minimal thermal expansion, and low cost per unit of stability. Its constraints are weight (high density relative to its stiffness), brittleness at thin sections, and size bounded by quarry blocks.

Property Comparison: Granite vs. Alumina vs. Zirconia vs. SiC

The table below compares the materials on the properties that drive component decisions. Values are qualitative directions rather than grade-specific numbers — ceramic properties vary by purity, grain size, and processing, so always compare datasheets for the specific grades on offer:

Read the table honestly and three patterns emerge. Granite wins on size, cost, and flatness capability over large areas — which is why it owns the base-and-datum segment. Ceramics win on stiffness-to-weight, wear life, and toughness (for zirconia) at small and medium sizes — which is why they dominate moving components, thin sections, and wear interfaces. And the ceramics differ meaningfully from each other, so “ceramic vs. granite” is usually two decisions: ceramic or not, and which ceramic.

Application by Application: Where Each Material Fits

Measuring Rulers and Reference Tools

Straight rulers and squares see daily handling, contact wear, and — in some shops — impact risk. Granite rulers offer outstanding stability and excellent lapped straightness at large lengths, at low cost. Ceramic rulers bring superior edge wear life and scratch resistance, and their lower weight helps at long lengths where handling a granite ruler becomes a two-person task. Ceramic’s brittleness is the trade-off to manage: edges survive wear better but can chip on hard impact. Our precision ceramic straight rulers and the granite ruler line exist side by side because different shops legitimately need both.

Precision Air Bearings

Air-bearing components demand gap geometry that never changes: thermal stability first, surface finish second, wear resistance third (because any wear changes the gap). Granite remains the standard for large bearing surfaces and bases. Ceramics enter where the bearing element is small, moves fast, or must be light — a precision ceramic air bearing combines near-zero wear with stiffness-to-weight that granite cannot match, and alumina’s machinability (relative to SiC) keeps gap tolerances achievable. For large structures carrying those bearings, granite still wins: you want the heavy, stable material where the weight does not hurt, the light, stiff material where it moves.

Precision Machine Structures

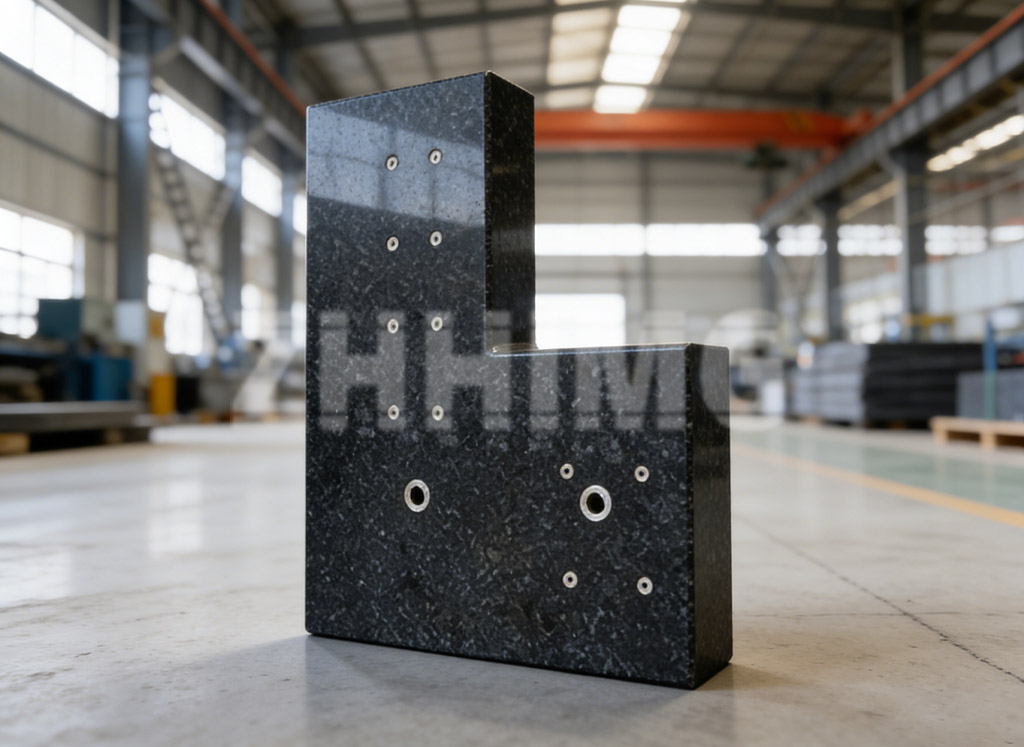

Structural components — brackets, mounting plates, gantry elements — divide by size and load path. Large structural members are granite territory: no ceramic process economically produces a multi-metre bracket with lapped datum faces. Small and medium structural parts in aggressive environments, or where fast dynamics make mass matter, are natural ceramic applications; alumina structural plates are the economical choice, and our alumina structural plates illustrate the format. Zirconia earns its premium where edges are thin, impact is possible, or fracture cannot be tolerated; SiC where stiffness-per-gram is the binding constraint and budget allows.

High-Stability Components in Special Environments

All four materials are corrosion-immune and non-magnetic, so environment rarely eliminates a material outright — it modifies the calculus. Vacuum and semiconductor cleanroom contexts favor ceramics (lower outgassing risk, cleaner wear behavior). High-temperature environments favor ceramics, whose properties extend well beyond granite’s comfortable range. Radiation environments similarly favor ceramics. At ambient, controlled conditions, granite’s stability-per-cost remains unbeatable for large datums.

The Engineering Decision Table

Two closing cautions. First, the finished-component cost ordering differs from the raw-material ordering — a ceramic part that needs little finishing can beat a granite part that needs extensive machining, and vice versa. Quote both rather than assuming. Second, hybrid designs are routine: granite datums carrying ceramic wear pads, ceramic locators mounted on granite bases. When one supplier produces both families under one roof, these combinations are engineered rather than improvised.

Send Us the Drawing — the Material Follows the Requirements

The fastest way to settle a granite-vs-ceramic question is a drawing with the real constraints: load, environment, required geometry, target size, and quantity. ZHHIMG’s engineering team reviews manufacturability across both material lines — granite, alumina, zirconia, and SiC — and quotes with the inspection plan attached. Because we are not married to one material, the recommendation is driven by your accuracy budget and duty cycle; see our full precision ceramic components range and granite component line to see what each family looks like in production.

Frequently Asked Questions

Is ceramic always more accurate than granite?

No. Accuracy of the finished component depends on the finishing process, not the material category. Granite is hand-lappable to flatness grades ceramics cannot economically reach at large sizes; ceramics can be ground to excellent geometry at small and medium sizes. Either material delivers high accuracy when the process matches the material.

Which ceramic grade should I choose for a measuring ruler?

Alumina is the default for straight rulers and squares: good wear resistance, stable, and economical. Zirconia suits rulers subject to impact handling; SiC is rarely justified for rulers unless wear life is extreme. Confirm with the supplier’s datasheets, since grade purity and processing matter as much as the nominal material.

Do ceramic components break easily in service?

They are brittle, so design matters: generous radii, no hard line contacts, protected edges. Zirconia substantially reduces fracture risk; alumina and SiC need more careful handling and design. Properly designed and installed, ceramic components run for years in service — the failure mode to engineer against is impact, not fatigue.

Can granite and ceramic parts be combined in one assembly?

Yes, and it is common practice: ceramic wear pads and locators on granite bases, ceramic air-bearing elements in granite structures. The combination works when interfaces are machined together — which favors suppliers who produce both materials in one facility, as ZHHIMG does.

What information do you need to recommend a material?

The drawing with tolerances, the load case (static and dynamic), the environment (temperature range, contamination, vacuum if applicable), quantity, and any weight or dynamics constraints. With those, we can compare granite and ceramic options concretely — including finished cost — rather than sending you a materials brochure.
