From DIN876 to ASME — Global Flatness Standards

Every procurement specification I’ve reviewed in the past decade follows the same pattern: a requirement for “international standards compliance” with no further detail. That phrase alone tells me nothing about what flatness tolerance your quality department actually needs, what measurement method your inspector will use, or whether the supplier’s calibration certificate will satisfy your ISO 17025 audit. This article cuts through that ambiguity. I’ll break down what DIN876, ASME B89, JIS, GB, BS, GOST, and other major standards actually require—and explain how ZHHIMG® executes all of them from a single production line at our Jinan facility.

The blunt truth: A supplier saying “we follow international standards” is giving you marketing language, not a technical commitment. Every major standard—German DIN876, American ASME B89, Japanese JIS, British BS, Russian GOST—specifies flatness tolerances, but the devil is in how each one defines measurement methodology, Grade definitions, and acceptable environmental conditions during verification.

I’ve visited factories in Germany where inspectors rejected plates certified to ASME tolerances because the measurement protocol didn’t match DIN methodology. I’ve seen Southeast Asian buyers receive perfectly compliant JIS plates that their European customer refused to accept because the documentation didn’t reference DIN876. The standard you’re following matters as much as the tolerance you specify.

The difference between knowing a standard and executing it is operational. It means your supplier’s production team understands the specific techniques required to achieve German DIN Grade 00 flatness—not just “very flat”—and that their metrology equipment is calibrated to traceable national standards. At ZHHIMG®, this isn’t a promise in a sales deck. It’s a documented capability verified by our partnerships with PTB (Germany), NPL (UK), NIST (US), and five other national metrology institutes.

TL;DR

ZHHIMG®Master Grinder / Grinding Specialist—master grinding technicians trained on German DIN, American ASME, Japanese JIS, British BS, Russian GOST, French EIE101-77, and Chinese GB standards—produce granite surface plates to the most demanding Grade 00 specification (≤0.5μm/m flatness) as their baseline. Every plate ships with calibration certificates traceable to PTB, NPL, NIST, and national metrology institutes, with documentation formatted for the specific standard your quality department requires. One factory, one production process, documented compliance for every major international standard.

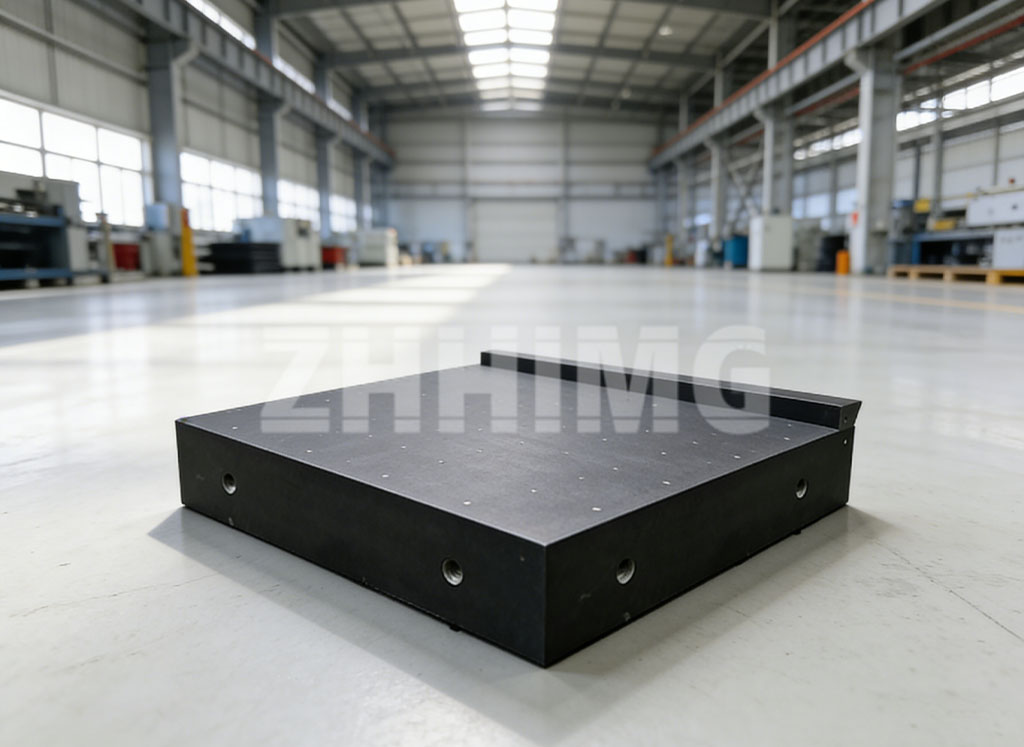

DIN876 Explained: What Germany’s Standard Actually Requires for Surface Plates

DIN876 is the foundational standard for granite surface plates in European precision manufacturing. Published by the German Institute for Standardization (DIN), it defines three flatness grades with tolerances expressed in micrometers per meter (μm/m).

Grade 00 requires flatness deviation no greater than 0.5 μm/m. For a 1000mm plate, this means the entire surface must hold within 0.5 μm total deviation. That’s not “pretty flat”—that’s the kind of tolerance that requires climate-controlled grinding, manual hand-scraping by trained technicians, and verification using electronic levels or laser interferometers.

Grade 0 allows up to 1 μm/m, and Grade 1 permits 2 μm/m. These aren’t arbitrary divisions. They reflect practical manufacturing limits and the economic reality that tighter tolerances cost more time and skill to achieve.

What many buyers miss is that DIN876 also specifies surface roughness requirements (Ra ≤ 0.63 μm for Grade 00) and mandates specific reference temperature (20°C) for official measurements. ZHHIMG®Master Grinder / Grinding Specialist—our master grinding technicians trained specifically on DIN methodology—use German Mahr 0.5 μm resolution micrometers and Swiss WYLER electronic levels to verify DIN compliance. Every plate shipped to European customers undergoes flatness verification using the DIN-defined grid method, with results documented on calibration certificates traceable to PTB through Shandong Provincial Metrology Institute.

ASME B89 and GG-P-463C-78: The American Standards That Govern Measurement Equipment

The American Society of Mechanical Engineers publishes ASME B89.7.3.1, which governs the calibration and verification of precision granite surface plates used in dimensional metrology. The US government standard GG-P-463C-78, now largely superseded but still referenced in military and aerospace procurement, provides additional requirements for government contract work.

ASME B89.7.3.1 defines flatness tolerances using the “minimum zone” method, which mathematically determines the tightest possible parallel planes that contain the surface. This differs subtly from the repeat reading method specified in some other standards, and the numerical tolerances can appear slightly different even when the underlying surface is identical.

For practical procurement: ASME Grade A (equivalent to DIN Grade 00) requires flatness within approximately 25 μm for a 48″ × 48″ plate. Grade B (equivalent to DIN Grade 0) allows approximately 50 μm for the same size. These are approximate equivalences—your inspector may reject a plate based on measurement method differences even if the absolute flatness numbers appear acceptable.

ZHHIMG® maintains calibration records traceable to NIST for all measurement equipment used in ASME verification. When we ship to US customers, our certificates explicitly reference ASME B89.7.3.1 methodology and include raw measurement data, not just final grade classifications. We’ve supplied surface plates to aerospace subcontractors and defense contractors who required this level of documentation for their ISO 17025 laboratory accreditation.

Japan’s JIS Standard: Why Tokyo’s Tolerance Language Is Different From Berlin’s

Japanese Industrial Standards (JIS) B 0613 defines surface plates using terminology that can confuse buyers familiar only with DIN or ASME. Where DIN876 specifies flatness in μm/m, JIS expresses tolerances in μm for defined plate sizes—numerically equivalent but requiring different interpretation during inspection.

JIS Grade 0 tolerance for a 1000mm × 630mm plate is approximately 2.5 μm total flatness. Grade 1 allows roughly 5 μm. The measurement method uses a grid pattern with autocollimator readings, similar to DIN methodology but with specific requirements for ambient temperature (20°C ± 1°C for JIS Grade 0) and minimum stabilization time before measurement begins.

What matters for international buyers: JIS-certified plates from Japanese manufacturers often carry premium pricing due to domestic market demand. ZHHIMG® produces JIS-compliant plates at our Jinan facility using the same precision granite (ZHHIMG® black granite, density approximately 3,100 kg/m³) and the same trained technicians who execute DIN and ASME work. The production process doesn’t change—what changes is the verification protocol and documentation format.

The Buyer in Moscow vs the Buyer in Munich: Why the Same Granite Plate Can Meet Both Requirements

Here’s a scenario I’ve encountered repeatedly: A Russian automotive parts manufacturer needs surface plates that will pass GOST 10905-1975 inspection for their quality laboratory, while their German joint venture partner requires DIN876 compliance for the shared production facility. These are two different standards, two different measurement protocols, and two different sets of documentation requirements.

GOST 10905-1975, the Russian standard for verification methods for surface plates, specifies flatness tolerances using a repeat reading method with a level instrument. The tolerance tables are organized by plate size and grade, with Grade 0 requiring flatness within 3 μm for a 1000mm plate and Grade 1 allowing 6 μm.

The “same plate” that satisfies GOST Grade 0 can also satisfy DIN876 Grade 0 if manufactured to the tighter tolerance and verified using the appropriate method. The key is that ZHHIMG® produces to the most demanding specification in our production process, then verifies using the specific methodology required by each target market. We don’t run separate production batches for DIN versus GOST customers—we run one process designed to exceed all requirements, then document compliance separately for each standard’s verification protocol.

This is the operational reality of multi-standard production that separates real capability from marketing claims.

How ZHHIMG® Manages Multi-Standard Production Without Compromising Quality

At our Jinan facility—200,000 m² across two production plants plus a 20,000 m² stone yard—we’ve organized production flow to handle standard-specific requirements without batch separation.

Raw material consistency: Every plate starts with ZHHIMG® black granite, sourced from the same geological formation with verified density of approximately 3,100 kg/m³. This material consistency means our grinding parameters don’t change between standards—only the verification protocol and acceptance criteria.

Grinding precision: ZHHIMG®Master Grinder / Grinding Specialist technicians execute grinding to Grade 00 tolerances (≤ 0.5 μm/m) as our baseline. This exceeds DIN Grade 0, ASME Grade B, JIS Grade 0, GB Grade 0, and GOST Grade 0 requirements simultaneously. When we receive an order for Grade 0 compliance, we’re actually producing to Grade 00 capability and only rejecting plates that fall below that threshold.

Metrology verification: Each plate undergoes three verification passes using different equipment:

• · German Mahr 0.5 μm micrometer for direct surface readings
• · Swiss WYLER electronic level for slope-based flatness determination
• · UK Renishaw laser interferometer for traceable length measurement

All equipment is calibrated traceable to Shandong Provincial Metrology Institute and ultimately to national metrology institutes. Calibration certificates are issued per standard requirement, with documentation packages tailored to DIN, ASME, JIS, GB, BS, GOST, or French EIE101-77 formats.

Documentation: This is where most suppliers fail. We provide certificates that include: raw measurement data, measurement method reference, environmental conditions at time of measurement, equipment calibration numbers and traceable references, and explicit standard compliance statements. Buyers receive documentation they can present to their own quality auditors.

Reading a Calibration Certificate: What Every Overseas Buyer Should Check Before Accepting Delivery

I’ve reviewed calibration certificates from dozens of suppliers over the years. Here’s what you should verify:

1. Traceability chain: The certificate should reference calibration of measurement equipment to a national metrology institute (NMI). For European buyers, this means PTB, NPL, or equivalent. ZHHIMG® certificates reference PTB and NPL traceable calibration for all critical instruments.

2. Measurement method: The certificate must specify the measurement method used—repeat reading, minimum zone, or grid method—and reference the standard governing that method. “Flatness: 0.5 μm” without method specification is meaningless.

3. Environmental conditions: DIN876 and JIS both require measurement at 20°C. If your certificate doesn’t show temperature and stabilization time, the flatness reading may be compromised by thermal expansion.

4. Acceptance criteria: The certificate should explicitly state which standard and grade the plate meets. “Complies with DIN876 Grade 00″ is clearer than “Flatness within specification.”

5. Certificate uniqueness: Each plate should have a unique certificate number. If your supplier provides batch certificates where one number covers multiple plates, you have no individual verification record.

International Flatness Standards Comparison Table

Note: Tolerance values normalized to 1000mm plate size for comparison. Actual tolerances scale with plate dimensions per each standard’s tables.

Frequently Asked Questions

What is the difference between DIN876 Grade 00 and Grade 0?

Grade 00 requires flatness deviation ≤ 0.5 μm/m; Grade 0 permits ≤ 1 μm/m. For a 1000mm plate, this means Grade 00 must hold within 0.5 μm total surface deviation across the entire plate. Grade 0 allows twice that deviation. Grade 00 requires more rigorous grinding, manual hand-finishing by skilled technicians, and climate-controlled verification. Use Grade 00 for reference-grade metrology labs and high-precision aerospace or semiconductor applications. Grade 0 is sufficient for most production quality control applications.

Does ZHHIMG® provide calibration certificates for each standard?

Yes. Every surface plate shipped internationally includes a calibration certificate documenting compliance with your specified standard. We can issue certificates referencing DIN876, ASME B89.7.3.1, JIS B 0613, GB/T 4987, BS 817-1983, GOST 10905-1975, or EIE101-77. Each certificate includes raw measurement data, measurement method, environmental conditions, equipment calibration references, and explicit standard compliance statement. We can provide separate certificates per standard if your order requires multi-standard documentation for different end customers.

How do I know which standard applies to my country?

Most European countries default to DIN876 or accept EN-equivalent standards. The United States typically references ASME B89.7.3.1, with aerospace/defense contractors sometimes requiring GG-P-463C-78. Japan uses JIS B 0613. China uses GB/T 4987. Russia follows GOST 10905-1975. The UK historically used BS 817-1983 but increasingly accepts DIN876 post-Brexit. If you’re uncertain, specify the standard your quality department or customer requires, and we’ll verify we can issue compliant documentation.

What measurement method does ZHHIMG® use for flatness verification?

We use multiple methods depending on the target standard. For DIN876, we use the grid method with autocollimator or electronic level, following the specified grid pattern and temperature requirements. For ASME B89.7.3.1, we use the minimum zone method as defined in the standard. All measurements are performed at 20°C with minimum 4-hour stabilization after the plate enters the measurement environment. Our primary verification instruments are German Mahr 0.5 μm micrometers, Swiss WYLER electronic levels, and UK Renishaw laser interferometers, all calibrated traceable to national metrology institutes.

Can ZHHIMG® supply surface plates to Russian GOST standards for export orders?

Yes. We regularly supply GOST 10905-1975 compliant surface plates for Russian export orders and Russian-registered companies operating internationally. Our production process meets GOST flatness requirements, and we issue certificates with GOST-compliant format and terminology. We’ve completed orders for automotive manufacturers, defense subcontractors, and oil & gas equipment suppliers in Russia. Lead time and documentation requirements are similar to our standard international orders.

What happens if my inspector finds the plate is out of spec?

Contact us immediately with the inspection report and measurement data. We respond to out-of-specification claims within 24 hours during business days. If independent verification confirms the plate does not meet the certified standard, we replace the plate at no cost or issue a full refund including return shipping. We maintain batch records for every plate, allowing us to investigate whether the issue originated in our production, was caused by shipping damage, or occurred through improper handling at your facility. In 20+ years of international shipping, our documented out-of-specification rate is below 0.3% —and every case was resolved to the customer’s satisfaction.

Source Your Surface Plates from a Single Certified Supplier

Whether your next order requires DIN876 Grade 00 plates for a German automotive plant, ASME B89 compliant surfaces for a US aerospace contractor, or GOST-certified equipment for a Russian manufacturing facility, ZHHIMG® delivers from a single production source with documented multi-standard capability.

What you get working with ZHHIMG®:

• · One supplier for all your international standards requirements
• · ISO9001:2015, ISO45001, ISO14001, and CE certified quality management
• · 20+ international trademarks and patents registered via CCPIT
• · Calibration traceable to PTB, NPL, NIST, and other national metrology institutes
• · Documentation packages accepted by ISO 17025 accredited laboratories worldwide
• · Direct communication with technical staff—no sales-only intermediaries

Ready to discuss your specification? Request a quote for your next surface plate order and specify your required standard, grade, and dimensions. We’ll confirm compliance capability and provide pricing within one business day.

Contact ZHHIMG® to discuss your international surface plate requirements.
