Granite Air Bearing: Principles, Applications, and Why Material Matters
An air bearing is often described as a component — a pad, a thrust face, a journal. In practice it is half of a pair: the bearing element and the structure it rides on. The two are engineered as one system, because the air film that carries the load is only a few micrometres thick, and everything about that film — its thickness, uniformity, and stability — depends on the material underneath it. This article explains how air bearings work, where granite air bearing structures earn their place, and why the choice of structural material is not a background decision but a performance-defining one.
The Principle: Load on a Thin Film of Air
An air bearing supports its load on pressurized gas confined in a narrow gap between two precision surfaces. Air enters the gap through a restriction — machined orifices, a porous medium, or shallow grooves — and escapes at the edges. The pressure distribution inside the gap balances the load, and because the surfaces never touch, the moving element slides without solid friction, without lubricant, and without mechanical wear.
Three consequences follow directly from the thinness of that film:
- The geometry of the mating surfaces defines the film. A gap measured in micrometres tolerates no significant surface error. Flatness and finish of the bearing faces — and of the rail or base they run over — are the physical substrate of bearing performance.
- Stiffness comes from the gap, not the material hardness. A smaller, more uniform gap yields a stiffer, better-damped film. This is why surface quality and structural stability translate directly into motion quality.
- Stability is time-dependent. A bearing system holds its performance only as long as the geometry holds. Any drift in the supporting structure — thermal, mechanical, or corrosive — eventually appears as film variation and motion error.
Those three consequences explain why material selection matters more in air-bearing systems than in almost any other mechanical design.

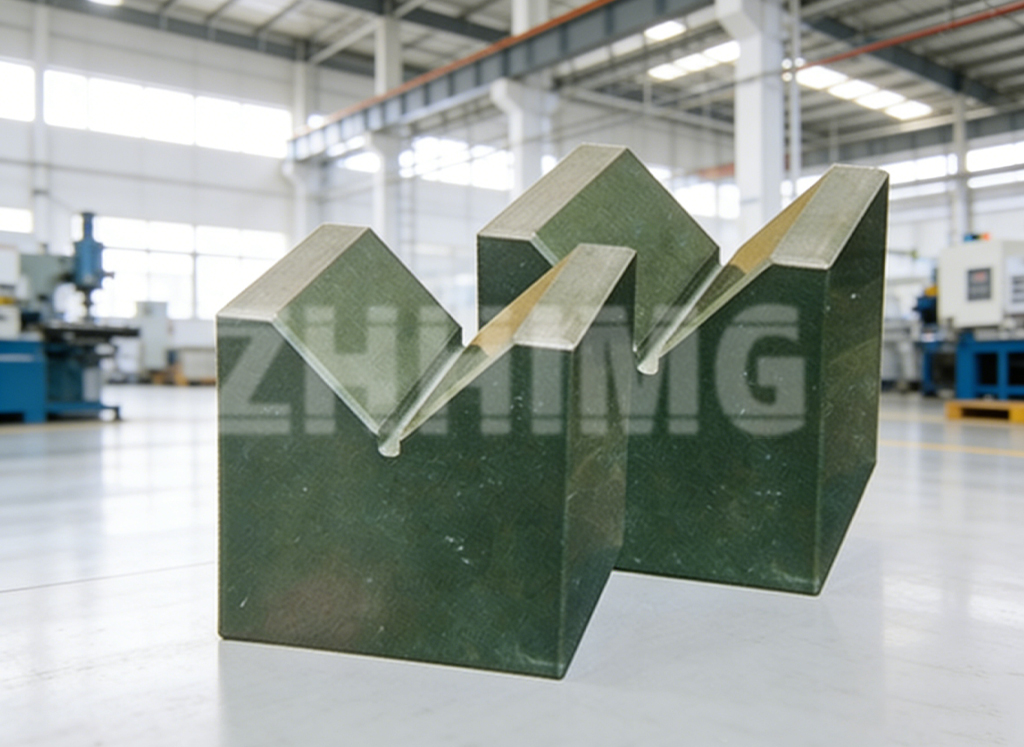

Why Material Matters: The Case for Granite
The structure under an air bearing must do four things at once: hold geometry to micrometres, keep holding it as temperature changes, resist corrosion without coatings, and provide a surface that can be finished to the quality the gap requires. Granite’s property profile maps onto these requirements almost point for point:
| Requirement of an Air-Bearing Structure | How Granite Delivers |
|---|---|
| Micrometre-stable geometry | Fine-grained black granite can be hand-lapped to outstanding flatness over large areas — the finishing path to a uniform film exists at any size. |
| Thermal stability | Very low thermal expansion keeps the gap geometry stable through normal temperature swings; the bearing tuned in the morning still performs in the afternoon. |
| Long-term freedom from corrosion | No rust, no coatings, no plating — surface quality does not degrade in humid or coolant-rich environments. |
| Vibration behavior | Natural damping in the stone complements the film’s own damping, rather than amplifying structure-borne vibration into the motion. |
| Non-magnetic, non-contaminating operation | No magnetized debris attraction near the gap, no lubricant to outgas — important in optics and semiconductor contexts. |
| Damage tolerance | Impact chips a crater rather than raising a burr; the surrounding surface remains functional. |
The honest counterpoints: granite is heavy, which matters for moving structures; it cannot be cast into complex internal shapes; and monolithic sizes are bounded by available blocks. That is why most air-bearing systems are hybrid — granite where the bearing rides and the datum lives, other materials where mass or shape demands it. What matters is that the bearing’s mating surfaces sit on the material that keeps them true.
Applications: Where Granite Air Bearings Work
Precision Motion Stages
Linear and rotary stages for inspection and manufacturing use air bearings over granite guideways to combine friction-free motion with a dimensionally permanent path. Height variation over travel, straightness, and repeatability all trace back to the granite geometry beneath the film. Our granite bases for linear motor stages integrate rail seats and bearing surfaces so the drive, the guide, and the film share one datum.
Optical and Laser Systems
Beam-delivery structures, optical scanning, and lens inspection cannot tolerate friction-induced hysteresis or lubricant mist. Air bearings on granite provide motion without either — and the granite’s damping helps isolate the optical path from floor vibration.
Semiconductor Equipment
Wafer-stage and inspection equipment pairs air bearings with granite for a pragmatic reason: the combination delivers nanometre-class motion, zero particulate generation, and thermal stability in one structure. In this sector the granite component is usually custom — machined bores, insert patterns, and bearing seats defined by the equipment’s layout.
Metrology Instruments
CMM-class instruments and length-measuring machines use air bearings over granite because the base doubles as the measurement datum: structure and motion system become one calibrated assembly, verified as a unit before delivery.
How a Granite Air Bearing Structure Is Built
Turning a design into a working air-bearing structure follows a sequence with little tolerance for shortcuts:
- Block selection. Fine-grained black granite is selected for the required envelope, with grain structure and density checked so the stone will lap uniformly and hold geometry.
- Sawing and machining. The block is cut to the rough shape, then milled: datum faces, bearing seats, insert bores, pockets, and cable channels are machined while the block is in a stable handling condition.
- Insert installation. Steel threaded inserts are bonded or pressed into machined bores before final finishing — after this point, insert positions are fixed.
- Hand lapping. Bearing surfaces and datums are lapped to flatness by experienced craftsmen. This is the step that converts a machined block into an air-bearing substrate; it cannot be rushed, and it is where most of the achievable film quality is earned.
- Conditioned inspection. The finished structure soaks to thermal uniformity in the inspection area and is measured on its specified supports with traceable instruments — the report records what was measured, with what, and under what conditions.
- Assembly and acceptance. Where the project includes bearings or subassemblies, they are integrated and inspected as a unit, so acceptance covers the system rather than isolated parts.
The sequence explains a scheduling reality buyers should plan around: design decisions cascade left to right. Insert positions locked late, or flatness requirements changed after lapping starts, cost time and money in ways that early drawing review avoids.
An Example of the Thinking: Matching Base to Bearing
Consider a typical linear air-bearing stage for an inspection machine. The moving carriage is light — often aluminum or ceramic — because mass costs acceleration. The base, however, is granite, because the base must not move: it carries the bearing surfaces the carriage rides on, the datum the scale references, and the mounting interface for the motor. Distributing materials this way — light where things move, stable where things are referenced — is the design pattern behind most successful air-bearing systems. Getting it backward, with a light or unstable substrate under the bearing gap, produces a stage that measures well on day one and drifts across the year.
This is also why we encourage customers to bring the whole motion-system context to the first conversation rather than the granite drawing alone: bearing type, drive selection, payload dynamics, and environment all shape what the granite structure must be. The earlier the material and geometry decisions are made together, the fewer compromises appear at integration.
What to Confirm Before Ordering
An air-bearing structure is quoted well when four inputs are on the table: the load case (static and moving mass), the travel and motion profile, the air supply available at the installation site (pressure, dew point, filtration), and the acceptance method — who measures what, with which instrument, under which conditions. Suppliers who ask for these before quoting are doing engineering; suppliers who quote from a catalog page are selling a part, not a system. Every precision granite component we ship for motion applications carries an inspection report with instruments and conditions stated, so the acceptance conversation happens before production rather than after delivery.
Frequently Asked Questions
Why is granite used under air bearings instead of steel?
Because the air film is only micrometres thick, the structure must not move or degrade: granite’s low thermal expansion, rust-free surface, and hand-lappable flatness keep the gap geometry stable in a way ground steel with protective coatings cannot match over years of service.
Does the bearing type (orifice, porous, grooved) change the material requirement?
The material requirement — stable, flat, finished geometry — is common to all three. Porous bearings are somewhat more forgiving of pressure fluctuation but demand very clean supply air; orifice designs need careful damping against air hammer. In all cases the mating structure’s geometry is the shared foundation, which is why granite is the standard substrate across types.
Can granite air bearing structures be combined with metal frames?
Yes, and most real machines do: granite datums and bearing paths integrated with metal substructures for mass, stiffness, or packaging reasons. The engineering requirement is that the interfaces be machined with one datum scheme — which favors suppliers who produce the granite and the metalwork under one quality system.
What happens to an air bearing when the air supply stops?
The film collapses and the carriage settles onto designed rest surfaces. It is a controlled-event condition, not a crash — but systems should include pressure monitoring and safe-stop logic, and the resting geometry should be part of the design rather than an afterthought.
How flat must a granite base be for air bearing use?
Flat enough to keep the film within its designed range over the full travel — the exact value depends on the bearing design and load, and is derived from the bearing engineering rather than quoted as a generic number. Agree the measurement method and acceptance points with the supplier so the verification matches the film requirement.
