In the world of precision manufacturing and quality control, the concept of “truth” is relative to the accuracy of your measurement tools. At the very foundation of this hierarchy of accuracy lies the granite surface plate. Often referred to as the “master” of the machine shop or inspection laboratory, the granite surface plate provides the critical reference plane against which all other measurements are compared. Without a stable, flat, and reliable base, the calibration of sophisticated instruments becomes impossible, and the quality of manufactured parts becomes a matter of guesswork.
This article explores the vital role of granite surface plates in ensuring calibration accuracy, the physical properties that make them the industry standard, and the best practices for maintaining this essential tool.
The Foundation of Metrology: Why Granite?

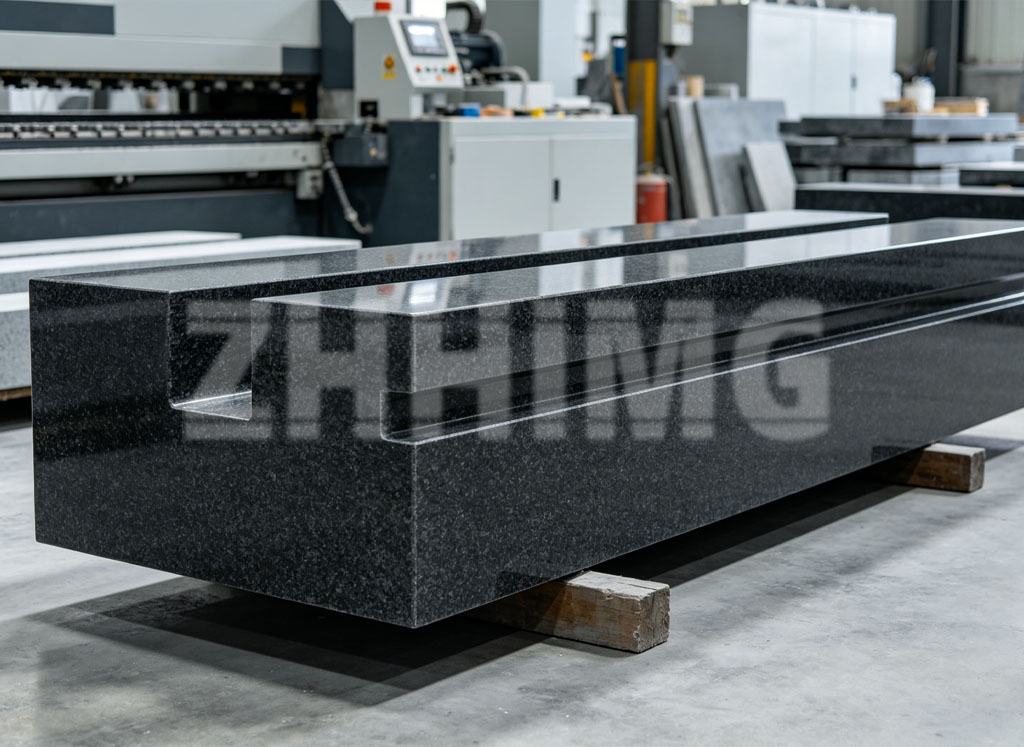

Before the mid-20th century, cast iron was the standard material for surface plates. However, the industry has overwhelmingly shifted to granite, specifically high-quality black granite, for several compelling reasons rooted in physics and material science.
1. Stability and Stress Relief:
Granite is a natural material that has been formed over millions of years. By the time it is quarried, the internal stresses that often plague metal castings have long since dissipated. This natural stress relief means that a properly manufactured granite plate will not warp or twist over time, providing a permanent reference plane.
Granite is a natural material that has been formed over millions of years. By the time it is quarried, the internal stresses that often plague metal castings have long since dissipated. This natural stress relief means that a properly manufactured granite plate will not warp or twist over time, providing a permanent reference plane.
2. Thermal Coefficient of Expansion:
In precision measurement, temperature is a primary source of error. Metals expand and contract with temperature fluctuations, which can alter the flatness of a surface plate. Granite has a much lower coefficient of thermal expansion compared to steel or iron. This means that even if the ambient temperature in the laboratory fluctuates, the granite plate remains dimensionally stable, ensuring that measurements remain consistent throughout the day.
In precision measurement, temperature is a primary source of error. Metals expand and contract with temperature fluctuations, which can alter the flatness of a surface plate. Granite has a much lower coefficient of thermal expansion compared to steel or iron. This means that even if the ambient temperature in the laboratory fluctuates, the granite plate remains dimensionally stable, ensuring that measurements remain consistent throughout the day.
3. Vibration Damping:
Granite has excellent damping properties—roughly 10 times better than steel. It absorbs vibrations from the surrounding environment (such as nearby machinery or foot traffic), preventing them from affecting the sensitive measurement process taking place on the surface.
Granite has excellent damping properties—roughly 10 times better than steel. It absorbs vibrations from the surrounding environment (such as nearby machinery or foot traffic), preventing them from affecting the sensitive measurement process taking place on the surface.
4. Hardness and Wear Resistance:
With a Mohs hardness of roughly 7, granite is highly resistant to scratching and wear. Unlike metal plates, which can develop burrs or raised edges when struck, granite tends to chip or凹陷 (sink) when damaged. This is crucial for calibration accuracy because a raised burr on a metal plate can lift a part and cause a false measurement, whereas a small chip in a granite plate generally does not affect the surrounding flatness.
With a Mohs hardness of roughly 7, granite is highly resistant to scratching and wear. Unlike metal plates, which can develop burrs or raised edges when struck, granite tends to chip or凹陷 (sink) when damaged. This is crucial for calibration accuracy because a raised burr on a metal plate can lift a part and cause a false measurement, whereas a small chip in a granite plate generally does not affect the surrounding flatness.
Understanding Calibration Grades
To ensure calibration accuracy, one must select the correct grade of surface plate for the specific application. Not all granite plates are created equal; they are classified by their flatness tolerance, usually measured in millionths of an inch or microns.
- Grade AA (or Grade 000): This is the highest precision grade, typically used as a master reference in calibration laboratories. It is used to check the accuracy of other surface plates or high-precision gauges.
- Grade A (or Grade 00): This grade is suitable for high-precision tool rooms and inspection departments. It is often used for checking the geometry of Precision parts and calibrating hand tools.
- Grade B (or Grade 0): This is the standard workshop grade, used for general layout work, machining setups, and checking parts where ultra-high precision is not critical.
Selecting the appropriate grade is the first step in ensuring that your calibration chain is valid. Using a workshop-grade plate to calibrate a high-precision micrometer, for example, would introduce errors that could compromise the entire production run.
The Calibration Process and Standards
Maintaining calibration accuracy requires adherence to strict standards, such as ASME B89.3.7 or DIN 876. These standards define the allowable flatness deviations based on the size of the plate and its grade.
Calibration is not just about checking the center of the plate; it involves a comprehensive analysis of the entire surface. Technicians often use the “diagonal method” or electronic level scanning to map the topography of the plate. This process identifies any “high” or “low” spots that may have developed due to wear or settling.
For high-tech manufacturing, where tolerances are tight, the frequency of calibration is also key. A plate that is used heavily in a production environment may need to be recalibrated every 6 to 12 months, whereas a master plate in a controlled environment might only need checking every 2 to 3 years.
Maintenance: Preserving the Truth
Even the best granite surface plate will lose its accuracy if not properly maintained. The surface plate is a working tool, not a workbench, and treating it as such is essential for longevity.
1. Cleanliness:
Before any measurement is taken, the surface must be cleaned. Dust, oil, and metal chips can act as spacers, lifting the part being measured and causing significant errors. A simple wipe with a clean cloth and a mild solvent is usually sufficient.
Before any measurement is taken, the surface must be cleaned. Dust, oil, and metal chips can act as spacers, lifting the part being measured and causing significant errors. A simple wipe with a clean cloth and a mild solvent is usually sufficient.
2. Covering:
When not in use, the plate should always be covered with a protective wood or plastic cover. This protects the surface from accidental damage, dust, and sunlight, which can cause uneven heating.
When not in use, the plate should always be covered with a protective wood or plastic cover. This protects the surface from accidental damage, dust, and sunlight, which can cause uneven heating.
3. Rotation:
Wear is rarely uniform. In a workshop, operators tend to use the center of the plate more than the edges. To extend the life of the plate and maintain accuracy, it is good practice to rotate the plate 180 degrees periodically (if it is not permanently mounted), ensuring that wear is distributed more evenly across the surface.
Wear is rarely uniform. In a workshop, operators tend to use the center of the plate more than the edges. To extend the life of the plate and maintain accuracy, it is good practice to rotate the plate 180 degrees periodically (if it is not permanently mounted), ensuring that wear is distributed more evenly across the surface.
4. Avoid Overloading:
While granite is strong, it is brittle. Dropping a heavy workpiece onto the plate can cause a chip or a crack. Furthermore, supporting a plate only at its corners can lead to flexing under heavy loads. Proper support, often using a three-point mounting system, ensures the plate remains flat under load.
While granite is strong, it is brittle. Dropping a heavy workpiece onto the plate can cause a chip or a crack. Furthermore, supporting a plate only at its corners can lead to flexing under heavy loads. Proper support, often using a three-point mounting system, ensures the plate remains flat under load.
Conclusion
In the pursuit of manufacturing excellence, the granite surface plate remains an unsung hero. It is the silent guardian of quality, providing the stable, flat foundation upon which all precision depends. By understanding the material properties of granite, selecting the correct grade, and adhering to rigorous calibration and maintenance schedules, manufacturers can ensure that their measurements are accurate, their parts are interchangeable, and their reputation for quality remains intact. In a world of increasing complexity, the simple granite block remains the ultimate standard of truth.
