In the aerospace industry, where precision is not merely a goal but a matter of survival, quality control represents the ultimate frontier of manufacturing excellence. Every component that takes to the skies—from the smallest fastener to the most complex turbine blade—must perform flawlessly under the most extreme conditions imaginable: temperatures ranging from -56°C at cruising altitude to +1,500°C in engine combustion chambers, pressures that vary from near-vacuum to hundreds of atmospheres, and mechanical stresses that push materials to their absolute limits.
The consequences of failure are catastrophic. A single micron-level defect in a critical component can lead to catastrophic in-flight failures, endangering hundreds of lives and resulting in billions of dollars in losses. This is why aerospace quality control demands measurement precision at the sub-micron level, with typical tolerances ranging from ±2.5μm to ±25μm depending on the application—tolerances so tight they challenge the fundamental limits of measurement technology.
At the heart of this precision measurement revolution lies an unexpected hero: granite. This ancient igneous rock, formed over millions of years under immense pressure, has emerged as the material of choice for the most demanding metrology applications in aerospace manufacturing. Granite tools, with their exceptional thermal stability, vibration damping properties, and long-term dimensional accuracy, have become indispensable in ensuring that every aerospace component meets the rigorous standards required for flight safety.
The Unique Challenges of Aerospace Quality Control
Aerospace manufacturing presents quality control challenges unmatched by any other industry. These challenges stem from four fundamental requirements that define aerospace precision:
Uncompromising Dimensional Accuracy
Unlike automotive or consumer electronics manufacturing, where tolerances of 25-100μm are often acceptable, aerospace components demand micron-level precision. Turbine blade airfoils, for instance, require profile tolerances of ±5μm to ensure optimal aerodynamic performance and prevent catastrophic failure during operation. Even seemingly minor deviations can significantly impact fuel efficiency, increase noise levels, or—worst of all—create structural weaknesses that lead to component failure under stress.
Material Diversity and Complexity
Aerospace components are manufactured from an extraordinary range of advanced materials, each presenting unique measurement challenges:
- Titanium alloys (Ti-6Al-4V): Used for structural components due to their exceptional strength-to-weight ratio
- Nickel-based superalloys (Inconel 718, Rene N5): Essential for high-temperature turbine sections
- High-strength aluminum alloys: Primary material for airframe structures
- Carbon fiber reinforced polymers (CFRP): Composite materials transforming modern aircraft design
Each material exhibits different thermal expansion coefficients, surface properties, and machining characteristics, requiring measurement systems that can adapt to these variations while maintaining absolute accuracy.
Complex Geometric Requirements
Modern aerospace components feature increasingly complex geometries: three-dimensionally twisted turbine blades, intricately cored engine casings, compound curvature wing surfaces, and intricate hydraulic manifold passages. These complex shapes cannot be measured using traditional dimensional inspection tools; they require sophisticated coordinate measuring machines (CMMs) and advanced metrology software—all mounted on stable platforms capable of sub-micron accuracy.
Regulatory Compliance and Traceability
The aerospace industry operates under one of the most stringent regulatory frameworks in existence. Every measurement, every inspection, and every quality decision must be fully documented, traceable to international standards, and auditable by certification bodies including the FAA, EASA, and other national aviation authorities. This level of accountability demands measurement systems that deliver consistent, repeatable results over decades of operation.
How Granite Tools Address These Challenges
Granite’s unique combination of physical properties makes it the ideal material for precision metrology applications in aerospace manufacturing:
Exceptional Thermal Stability
Granite exhibits a thermal expansion coefficient of approximately 6.5×10⁻⁶/°C, significantly lower than steel (11.5×10⁻⁶/°C) and aluminum (23×10⁻⁶/°C). This means that as laboratory temperatures fluctuate—even within the tightly controlled ±0.5°C to ±1°C range required for precision aerospace metrology—granite structures expand and contract far less than their metal counterparts.
This stability is critical for maintaining measurement accuracy. A steel CMM structure experiencing a 1°C temperature change would expand by 11.5μm per meter, potentially invalidating measurements requiring ±2.5μm accuracy. Granite, by contrast, would only expand by 6.5μm per meter—a 43% improvement that directly translates to more reliable measurements.
Superior Vibration Damping
The dense, crystalline structure of granite provides exceptional vibration damping properties—approximately 10-15 times greater than cast iron. In manufacturing environments where heavy machinery, forklift traffic, and nearby operations create constant ambient vibration, this natural damping capability is invaluable. It ensures that the microscopic deflections caused by vibration do not compromise measurement accuracy, particularly when inspecting features with micron-level tolerances.
Long-Term Dimensional Accuracy
Granite is virtually immune to the internal stresses that cause metal structures to warp, creep, or deform over time. Once a granite surface plate or machine base is lapped to its final flatness specification—typically within 0.5μm over a meter—it will maintain that accuracy for decades with minimal maintenance. This long-term stability is essential for aerospace manufacturers who must maintain consistent measurement standards across the 20-30 year service life of aircraft programs.
Non-Magnetic and Corrosion-Resistant Properties
Unlike steel or aluminum structures, granite is non-magnetic and chemically inert, making it ideal for measuring sensitive aerospace components including electronic assemblies, magnetic bearings, and components that could be compromised by magnetic interference. Granite also resists the corrosive effects of cutting fluids, cleaning agents, and atmospheric moisture, ensuring consistent performance in industrial environments.
Key Application Scenario 1: Turbine Blade and Engine Component Inspection
Gas turbine engines represent the pinnacle of aerospace engineering, with rotating assemblies spinning at over 10,000 RPM while operating at temperatures exceeding the melting point of their constituent materials. The quality control requirements for these components are among the most demanding in any industry.
Precision Profile Measurement
Turbine blades feature complex, three-dimensionally twisted airfoil profiles that must conform to exacting geometric specifications. Profile tolerances of ±5μm are standard for high-pressure turbine blades, requiring measurement systems capable of capturing thousands of data points across the blade surface with sub-micron accuracy.
Granite-based CMMs, equipped with high-precision scanning probes mounted on granite structures, provide the stable platform necessary for these measurements. The granite base isolates the measurement system from floor vibrations, while the granite bridge and Z-axis components ensure that thermal expansion remains within acceptable limits throughout the measurement cycle—typically lasting 15-30 minutes per blade.
Fir Tree Root and Shroud Feature Inspection
The fir tree roots that secure turbine blades to the rotor disk represent another critical measurement application. These complex tooth profiles must mate perfectly with corresponding features in the disk, transferring tons of centrifugal force while maintaining precise positional relationships. Tolerances for these features typically range from ±10μm to ±25μm, requiring measurement systems capable of accurately capturing complex geometric relationships under tightly controlled environmental conditions.
Dimensional Metrology for Assembly
Engine assembly involves fitting hundreds of individual components with precise dimensional relationships. Radial clearances between rotating and stationary components, for example, can be as tight as 25μm, requiring measurement systems that can verify these critical dimensions with absolute confidence. Granite surface plates and granite-based measurement fixtures provide the stable reference planes necessary for these assembly measurements.
Key Application Scenario 2: Aerospace Structural and Airframe Component Measurement
Aircraft structures—fuselage sections, wing spars, bulkheads, and landing gear components—present unique quality control challenges due to their large size, complex geometries, and critical structural requirements.
Large-Volume Metrology
Modern commercial aircraft wings can exceed 30 meters in length, requiring measurement systems capable of maintaining accuracy across vast volumes. Granite-based CMMs with extended measuring ranges provide the structural stability necessary for these large-volume measurements. The granite base, often weighing tens of tons, provides a foundation that remains stable despite the significant moving masses involved in large CMM operation.
Assembly Tolerance Verification
Aircraft assembly involves fitting thousands of components with positional tolerances often measured in tens of microns. Wing-to-fuselage joints, for example, require precise alignment to ensure aerodynamic efficiency and structural integrity. Granite tooling, including precision jigs and fixtures mounted on granite base plates, provides the stable reference datums necessary for verifying these critical assembly relationships.
Composite Component Inspection
The increasing use of carbon fiber reinforced polymer (CFRP) composites in airframe structures introduces new measurement challenges. Composite components exhibit different thermal expansion characteristics, can have complex surface geometries, and require non-contact measurement techniques to avoid surface damage. Granite-based metrology systems, with their inherent stability and compatibility with optical and laser measurement technologies, provide an ideal platform for composite component inspection.
Key Application Scenario 3: Hydraulic Systems and Precision Component Inspection
Aircraft hydraulic systems, responsible for flight control, landing gear actuation, and brake systems, operate at pressures up to 5,000 PSI and must maintain perfect sealing under extreme temperature variations. The components in these systems—spools, sleeves, valve bodies, and manifold passages—require exceptionally precise manufacturing and inspection.
Surface Roughness and Form Measurement
Hydraulic spool valves, for example, require surface finishes as fine as Ra 0.05μm (2μin) to ensure proper sealing and minimize leakage. The cylindrical form of these spools must be accurate to within ±1μm, with straightness and roundness specifications measured in fractions of a micron. Granite surface plates, combined with precision form measurement instruments mounted on granite bases, provide the stable reference necessary for these ultra-precise measurements.
Sealing Surface Inspection
Sealing surfaces in hydraulic components require flatness specifications often measured in light bands (one light band equals approximately 0.3μm). Granite surface plates, lapped to optical flatness specifications, serve as the reference standard for these measurements. When combined with optical flats and interferometric measurement systems, they enable verification of sealing surfaces to the most stringent aerospace standards.
Precision Bore and Clearance Measurement
The clearances between hydraulic spools and their mating sleeves can be as tight as 2-5μm. Verifying these clearances requires dimensional measurement systems capable of sub-micron accuracy. Granite-based bore gauges and air gauging systems, mounted on stable granite platforms, provide the measurement stability necessary for these critical applications.
The Central Role of Granite Tools in Coordinate Measuring Machines (CMMs)
Coordinate Measuring Machines represent the workhorses of aerospace quality control, and granite forms the structural backbone of the most accurate CMMs used in the industry.

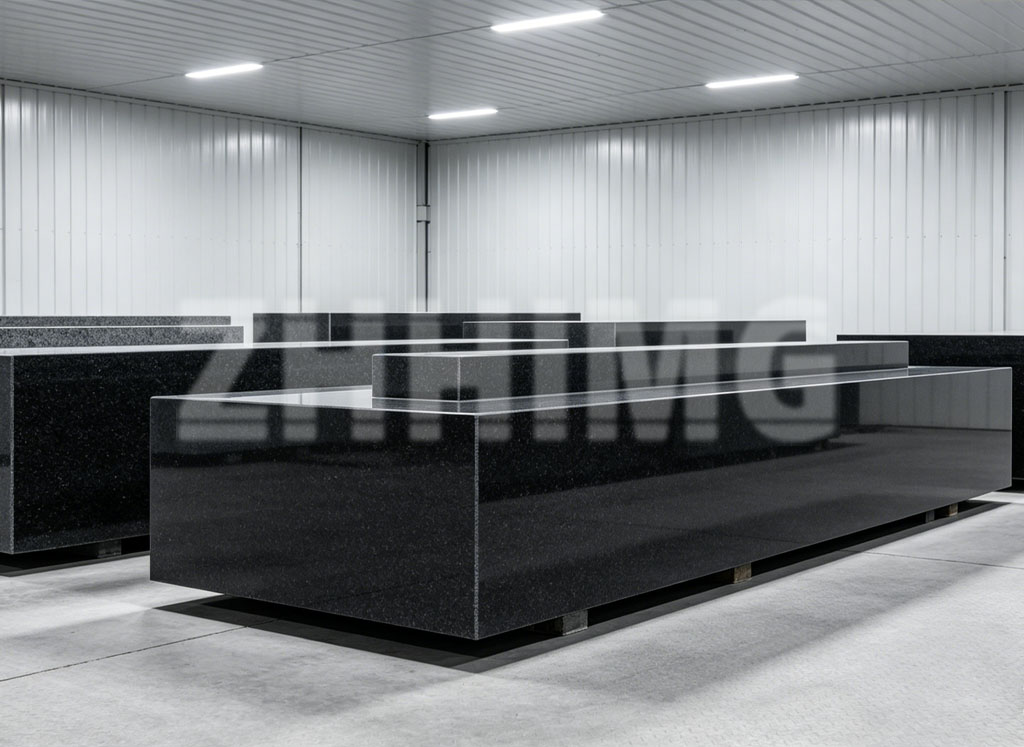

Granite Machine Bases
The foundation of any high-accuracy CMM is its base—a massive granite plate that provides the stable reference plane for all measurements. These bases, typically 200-300mm thick and weighing several tons, are lapped to flatness specifications of 0.5μm or better across their entire surface. They provide the stable platform upon which the machine’s linear guides, drive systems, and scales are mounted, ensuring geometric accuracy over the machine’s operational life.
Granite Structural Components
In addition to the base, many high-accuracy CMMs incorporate granite for their X-axis beams, Y-axis carriages, and Z-axis ram structures. This all-granite construction ensures that all structural components exhibit the same thermal expansion characteristics, minimizing thermal distortion effects across the machine structure. The use of granite for moving components also provides superior vibration damping, reducing measurement errors caused by machine dynamics.
Air Bearing Systems on Granite Ways
The most accurate CMMs employ air bearing systems running on precision-lapped granite guide ways. These non-contact bearings eliminate friction and wear, ensuring smooth motion with sub-micron positioning accuracy. The granite ways, lapped to extremely tight flatness and straightness specifications, provide the perfect running surface for these air bearing systems, enabling volumetric measurement accuracies of 0.5μm + L/1000 mm—a specification critical for meeting aerospace tolerance requirements.
Compliance and Certification Support
Aerospace manufacturing operates under a complex web of international standards and certification requirements, and granite tools play an essential role in meeting these obligations.
AS9100 Quality Management System
AS9100, the international quality management system standard for aerospace, requires organizations to demonstrate control over their measurement processes. The long-term stability of granite measurement tools helps organizations meet these requirements by ensuring that measurement systems remain calibrated and accurate between periodic verification cycles—reducing the risk of non-conformance during audits.
ISO 17025 Laboratory Accreditation
ISO 17025 sets the international standard for calibration and testing laboratory competence. This standard requires laboratories to demonstrate measurement traceability, uncertainty estimation, and long-term measurement system stability. Granite-based measurement systems, with their well-characterized performance and minimal drift over time, significantly simplify the process of meeting ISO 17025 requirements for measurement uncertainty and traceability.
NADCAP Special Process Accreditation
The National Aerospace and Defense Contractors Accreditation Program (NADCAP) provides accreditation for special processes including non-destructive testing, materials testing, and—critically—measurement and inspection. Granite-based measurement systems help organizations achieve and maintain NADCAP accreditation by providing consistent, reliable measurement results that can be documented and traced to national standards.
ISO 10360 CMM Performance Verification
The ISO 10360 series of standards defines acceptance and reverification tests for coordinate measuring machines. These standards, which include requirements for volumetric measurement accuracy, probing performance, and scanning capability, are essential for demonstrating CMM capability to meet aerospace requirements. Granite-structured CMMs consistently outperform their metal counterparts in these tests, particularly in applications requiring long-term stability and performance under varying environmental conditions.
Return on Investment Analysis
Investing in high-quality granite metrology tools represents a significant capital expenditure, but the return on investment for aerospace manufacturers is substantial and multifaceted:
Reduced Rework and Scrap Costs
Aerospace components, particularly those made from expensive materials like titanium and Inconel, can cost tens of thousands of dollars each. Scrapping a single turbine blade due to measurement error represents a significant financial loss. By providing accurate, reliable measurement data, granite tools reduce the risk of rejecting good parts (Type I errors) and accepting bad parts (Type II errors), directly reducing scrap and rework costs.
Improved First-Pass Yield
The stability and accuracy of granite-based measurement systems enable tighter process control, leading to improved first-pass yield. A leading aerospace manufacturer implementing granite-structured CMMs reported a 23% improvement in first-pass yield for turbine blade machining operations, translating to annual savings of over $2.7 million in reduced rework and scrap costs.
Extended Equipment Service Life
Granite measurement tools, with their exceptional durability and resistance to wear, corrosion, and dimensional drift, provide service lives measured in decades rather than years. A granite surface plate purchased today will still be delivering accurate measurements 30-40 years from now—outlasting multiple generations of electronic measurement equipment and providing a stable foundation for continuous measurement system upgrades.
Reduced Calibration and Maintenance Costs
The long-term stability of granite structures reduces the frequency of required calibrations and minimizes maintenance costs. While metal-framed CMMs may require quarterly recalibration to compensate for structural drift, granite-structured machines often maintain their accuracy for 6-12 months between calibrations—reducing calibration costs by 50% or more while minimizing production downtime.
Case Study: Implementation at a Major Aerospace Manufacturer
A leading aircraft engine manufacturer recently completed a comprehensive upgrade of its quality control facilities, replacing older metal-structured CMMs with state-of-the-art granite-based measurement systems. The results were transformative:
Measurement Accuracy Improvement
The new granite-structured CMMs demonstrated a 40% improvement in volumetric measurement accuracy compared to the older machines, with measurement uncertainty reduced from 0.9μm + L/600mm to 0.5μm + L/1000mm. This improvement directly enabled the manufacturer to implement tighter process controls for turbine blade manufacturing, reducing profile deviation by an average of 32%.
Throughput Enhancement
Despite their higher precision, the new granite CMMs actually improved measurement throughput by 18%. The superior vibration damping of the granite structure allowed faster probing speeds without compromising accuracy, while the thermal stability reduced warm-up time and measurement delays caused by environmental temperature fluctuations.
Cost Savings
Over the first three years of implementation, the manufacturer documented:
- $8.3 million in reduced scrap and rework costs
- $1.2 million in calibration and maintenance savings
- $2.7 million in improved production throughput
- 100% pass rate on all regulatory audits and certification inspections
Perhaps most importantly, the improved measurement capability enabled the manufacturer to develop a new generation of turbine blades with tighter tolerances, resulting in a 1.5% improvement in fuel efficiency—a significant competitive advantage in the commercial aviation market.
Future Trends: Evolving Applications in Advanced Aerospace Manufacturing
As aerospace manufacturing technology continues to evolve, the role of granite metrology tools is expanding to address emerging challenges:
Advanced Composite Inspection
The growing use of advanced composite materials, including carbon fiber reinforced polymers and ceramic matrix composites, is creating new measurement challenges. These materials exhibit anisotropic properties, complex failure modes, and require non-destructive inspection techniques that benefit from the stability of granite-based measurement platforms.
Additive Manufacturing Quality Control
Additive manufacturing (3D printing) is revolutionizing aerospace component production, enabling the creation of complex geometries impossible with traditional manufacturing methods. However, these components require sophisticated inspection techniques to verify internal geometries, surface quality, and material properties. Granite-based CMMs, equipped with advanced scanning and tomography systems, provide the stable platform necessary for these complex inspection tasks.
Automated Inspection and Industry 4.0 Integration
The aerospace industry is rapidly adopting Industry 4.0 principles, including automated inspection systems and real-time process monitoring. Granite measurement tools provide the stable foundation for these automated systems, ensuring consistent measurement results across thousands of inspection cycles. The long-term stability of granite structures is particularly valuable in automated systems, where even microscopic drift can lead to significant process errors over time.
In-Situ Metrology in Machining Operations
The integration of measurement systems directly into machine tools—known as in-situ metrology—represents a growing trend in aerospace manufacturing. Granite-based machine tool structures, already common in high-precision machining centers, enable the integration of measurement probes and systems directly into the machining environment, reducing setup time and improving process control through closed-loop feedback.
Conclusion and Professional Recommendations
The aerospace industry’s relentless pursuit of higher performance, greater efficiency, and enhanced safety continues to drive demand for ever-more-precise measurement capabilities. Granite tools, with their unique combination of thermal stability, vibration damping, long-term accuracy, and durability, have emerged as essential components in the quality control infrastructure of modern aerospace manufacturing.
For organizations seeking to enhance their aerospace quality control capabilities, we offer the following recommendations:
-
Invest in Granite-Based CMMs: For critical aerospace applications requiring sub-micron accuracy, granite-structured CMMs provide superior long-term performance and measurement stability compared to metal-framed alternatives.
-
Implement Granite Measurement Standards: Ensure that all reference standards—surface plates, angle plates, straight edges, and master squares—are manufactured from high-quality granite and maintained according to rigorous calibration schedules.
-
Control the Measurement Environment: Even the best granite tools require proper environmental control. Maintain measurement laboratories within the ±0.5°C to ±1°C temperature range required for precision aerospace metrology, with appropriate humidity control and vibration isolation.
-
Establish Comprehensive Calibration Programs: Regular calibration of granite measurement tools, traceable to national standards, is essential for maintaining compliance with AS9100, ISO 17025, and NADCAP requirements.
-
Train Personnel in Metrology Fundamentals: The most sophisticated measurement equipment is only as good as the personnel operating it. Invest in comprehensive training programs to ensure that quality control personnel understand both the capabilities and limitations of granite-based measurement tools.
As the aerospace industry enters a new era of supersonic flight, electric propulsion, and composite structures, the demand for precision measurement will only continue to grow. Granite tools, proven through decades of service in the most demanding metrology applications, will remain at the forefront of this precision revolution—ensuring that every component taking to the skies meets the rigorous standards of accuracy, reliability, and safety that define aerospace excellence.
The choice of granite in aerospace metrology is not merely a technical decision; it is an investment in the fundamental integrity of measurement processes that protect human lives, ensure mission success, and maintain the highest standards of engineering excellence. In an industry where every micron matters, granite provides the stable foundation upon which aerospace quality control is built.
