How to Select the Right Granite Machine Base for Your Precision Engineering Project

In the high-stakes world of precision engineering, where tolerances are measured in microns and repeatability is paramount, every component of a machine tool or measurement system plays a critical role. While the spotlight often shines on advanced servos, high-resolution encoders, and sophisticated control software, there is a foundational element that is frequently overlooked: the machine base. This seemingly passive component is, in fact, the bedrock upon which all precision is built. For projects demanding the highest levels of accuracy and long-term stability, granite has emerged as the material of choice for machine bases. But how do you select the right granite base for your specific application? This guide delves into the critical factors, moving beyond simple specifications to address the real-world pain points of selection.

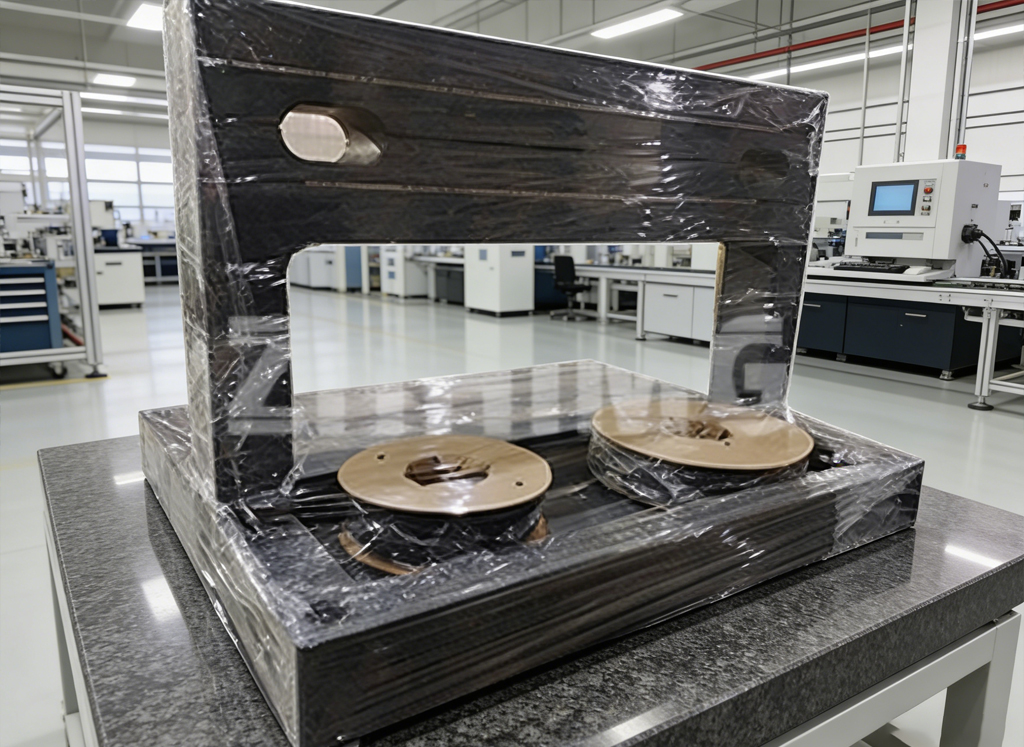

The Bedrock of Precision: Why Granite?

• Dimensional Stability: Granite is a metamorphic rock that has undergone immense pressure and heat, resulting in a crystalline structure that is virtually free of internal stresses. Unlike metals, which can warp or creep over time due to residual stresses from casting or welding, a properly aged granite base will maintain its geometric integrity for decades. This inherent stability ensures that the machine’s accuracy does not drift, providing a reliable and consistent reference plane.
• Low Coefficient of Thermal Expansion: Temperature fluctuations are the bane of precision engineering. Metals expand and contract with changes in ambient temperature, which can introduce significant measurement errors or affect machining accuracy. Granite has a very low coefficient of thermal expansion—typically about half that of steel. This means that for the same temperature change, a granite base will deform far less than a metal one, making the entire system more robust and less sensitive to environmental variations.
• Superior Vibration Damping: Any external vibration, whether from a nearby forklift, a closing door, or the machine’s own motors, can negatively impact surface finish and measurement repeatability. Granite possesses excellent damping characteristics. Its dense, non-homogeneous microstructure is highly effective at absorbing and dissipating vibrational energy, preventing it from being transmitted to the critical working components. This results in smoother operation, finer finishes, and more reliable data.
• Exceptional Hardness and Wear Resistance: The working surface of a machine base is subject to constant use, with workpieces and fixtures being placed, slid, and clamped. Granite’s high Mohs hardness (typically 6-7) makes it extremely resistant to wear, scratches, and dings. This ensures that the critical reference plane remains accurate over a long service life, reducing the need for frequent recalibration or resurfacing.
• Corrosion and Chemical Resistance: Unlike ferrous metals, granite is completely immune to rust. It is also highly resistant to most common acids, alkalis, and coolants used in industrial environments. This eliminates the need for protective coatings that can chip or degrade, simplifying maintenance and ensuring a clean, stable surface.
• Non-Magnetic Properties: For applications involving sensitive electronic instruments or the handling of magnetic materials, a non-magnetic base is essential. Granite is a non-metallic material and therefore introduces no magnetic interference, making it ideal for a wide range of specialized applications, from semiconductor manufacturing to medical device assembly.

Defining Your Project’s Core Requirements

1. Application and Function: What is the primary function of the machine? Is it a Coordinate Measuring Machine (CMM), a high-speed laser cutter, a semiconductor wafer handler, or a precision optical assembly station? The application dictates the required level of precision, the types of loads it will experience, and the environmental conditions it must withstand. A CMM, for instance, demands a higher degree of geometric accuracy and stability than a base for a general-purpose assembly fixture.
2. Required Precision Grade: Precision is quantifiable. Granite bases are graded according to international standards (such as DIN 876 or ASME B89.3.1) based on their flatness tolerance. These grades typically range from “Laboratory Grade” or “AA” (the most precise, with tolerances in the sub-micron range per meter) to “Inspection Grade,” “Toolroom Grade,” and “Workshop Grade.” It is crucial to specify the required flatness, parallelism, and angular accuracy for your application. Over-specifying can lead to unnecessary cost, while under-specifying can compromise the entire project.
3. Load and Structural Requirements: The base must be able to support the static and dynamic loads of the entire machine assembly without deflection. This includes the weight of the machine components, the workpiece, and any forces generated during operation (e.g., cutting forces, acceleration forces). You need to define the maximum load capacity and consider if the base requires specific structural features, such as reinforcing ribs or a particular thickness, to ensure sufficient rigidity.
4. Geometric Complexity: A simple rectangular block is the most straightforward and cost-effective option. However, many applications require complex geometries. This can include T-slots for flexible fixturing, threaded inserts for mounting components, V-grooves for guiding cylindrical parts, or even intricate 3D contours. The more complex the geometry, the more complex and expensive the manufacturing process will be. Providing detailed CAD drawings is essential at this stage.

The Selection Criteria: A Deep Dive

• Rough Cutting: Large diamond-tipped saws are used to cut the raw stone into manageable blanks.
• Stress Relief: The blank undergoes a natural or artificial aging process to relieve any stresses induced during cutting.
• Precision Machining: This is where the skill of the manufacturer truly shines. It involves a series of grinding, milling, and drilling operations using specialized CNC machines equipped with diamond tools. For complex features like T-slots or precision bores, 5-axis machining centers are often required.
• Hand Scraping and Lapping: For the highest precision grades, the final surface finish is often achieved through meticulous hand scraping and lapping. Skilled technicians use master reference plates and fine abrasives to achieve the desired flatness and surface texture (Ra value). This step is crucial for achieving sub-micron accuracy.
• Final Inspection: The finished component must be verified using high-precision metrology equipment, such as laser interferometers, electronic levels, and Coordinate Measuring Machines (CMMs). A reputable manufacturer will provide a comprehensive inspection report detailing the final geometric tolerances of the part.

• Maintenance Costs: A granite base requires virtually no maintenance. There is no need for painting, rust prevention, or lubrication. This contrasts sharply with metal bases, which may require periodic refinishing or treatment.
• Downtime and Recalibration: Due to its superior stability, a granite base will hold its accuracy for much longer, reducing the frequency of machine recalibration and the associated downtime.
• Longevity: A well-made granite base can last for the entire life of the machine, often several decades, without degradation in performance.

Conclusion: Building on a Solid Foundation
