Mineral Casting Bed vs Cast Iron: Which Material Wins for Precision Machinery?

When designing precision machine tools, coordinate measuring machines, and high-accuracy automation equipment, the selection of machine bed material fundamentally determines achievable accuracy, long-term stability, and maintenance requirements. Mineral casting beds (also called polymer granite or mineral casting) have emerged as an alternative to traditional cast iron machine beds, promising superior vibration damping and thermal stability. This comprehensive comparison examines the performance characteristics, application suitability, and practical considerations that guide material selection for precision machinery foundations.

Mineral casting beds offer superior vibration damping and thermal stability compared to traditional cast iron, with thermal expansion coefficients below 0.001mm/°C and damping ratios 6-10 times higher. However, cast iron remains preferred for high-load applications exceeding 50 tons and environments requiring magnetic workholding. For most precision CNC machines, optical inspection systems, and semiconductor equipment, mineral casting delivers measurable accuracy advantages with lower maintenance burden over the equipment lifetime.

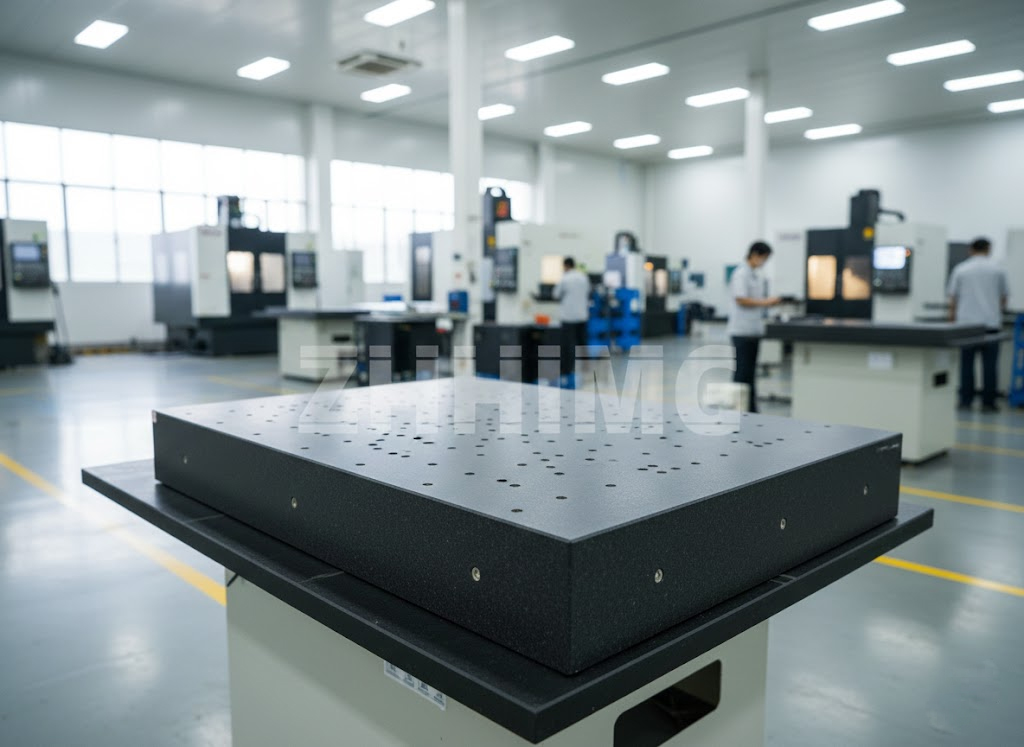

Understanding Mineral Casting Material Properties

Composition and Manufacturing Process

Mineral casting consists of natural stone aggregates bonded with mineral or polymer binders, creating a composite material with characteristics distinct from either its constituent materials or traditional castings. The manufacturing process involves mixing precise ratios of aggregate materials with binder systems, pouring into molds, and curing under controlled conditions.

This process enables properties that cannot be achieved through conventional casting methods. The binder system composition can be tailored to optimize specific performance characteristics including damping capacity, thermal stability, or compressive strength.

Key Material Specifications Compared

H2: Vibration Damping Performance Analysis

Why Damping Matters for Precision Machining

Vibration during machining directly impacts surface finish quality, tool life, and dimensional accuracy. High-frequency chatter marks surfaces, while low-frequency vibrations cause dimensional errors and reduced machining productivity. The damping capacity of machine bed materials determines how quickly vibrations attenuate after excitation.

Mineral casting exhibits damping loss factors of 6-10%, compared to 0.8-1.5% for cast iron. This 6-10× improvement in damping capacity means vibrations dissipate 6-10 times faster in mineral casting structures, reducing cycle times and improving surface finishes.

Damping Mechanisms in Mineral Casting

The superior damping of mineral casting derives from multiple mechanisms operating within the material structure:

1. Viscoelastic damping in the binder phase converts vibrational energy into heat
2. Micro-slip at aggregate-binder interfaces dissipates energy through friction
3. Porosity in the material creates additional energy dissipation sites

These mechanisms operate across a wide frequency range, providing effective vibration control where cast iron’s primarily elastic response offers limited natural damping.

Thermal Stability Comparison

Thermal Expansion Characteristics

Thermal stability proves critical for precision machines operating in environments without precise temperature control. Even small temperature variations cause measurable dimensional changes in machine structures, affecting positioning accuracy and geometric tolerances.

Mineral casting’s thermal expansion coefficient below 0.001mm/°C represents approximately 1/12th of cast iron’s expansion. A 1-meter machine bed experiences only 1μm of dimensional change per degree Celsius in mineral casting, compared to 12μm in cast iron.

Thermal Gradients and Distortion

Beyond uniform thermal expansion, temperature gradients within machine structures create differential expansion that causes bow, twist, and geometric errors. The low thermal conductivity of mineral casting (1-2 W/m·K) actually helps in this regard, as it reduces heat transfer from localized heat sources.

However, this same characteristic means that thermal disturbances persist longer in mineral casting structures, as the material cannot rapidly conduct heat away and equalize temperatures. Careful thermal management design becomes more important with mineral casting beds.

Application-Specific Material Selection

When Mineral Casting Delivers Clear Advantages

Precision CNC Machining Centers

High-speed machining centers benefit from mineral casting’s superior damping, reducing vibration-induced surface errors and enabling faster feed rates without chatter. The thermal stability maintains accuracy throughout machining cycles and shift changes.

Coordinate Measuring Machines (CMMs)

CMMs require exceptional stability during measurement cycles. Mineral casting beds provide vibration isolation from surrounding equipment and maintain thermal stability that preserves measurement accuracy across varying ambient conditions.

Optical and Laser Processing Equipment

Equipment requiring vibration-free operation for extended periods benefits from mineral casting’s high damping capacity. The material’s thermal stability also protects optical alignments from temperature-induced drift.

Semiconductor Manufacturing Equipment

The cleanroom compatibility of mineral casting, combined with its thermal and vibration performance, makes it ideal for wafer handling and inspection equipment where contamination and precision requirements coexist.

When Cast Iron Remains the Better Choice

High Static Load Applications

Cast iron’s higher density and compressive strength make it preferable for machine tools Withstands a static load exceeding 50 tons.. The additional mass also provides natural vibration attenuation through increased moving mass.

Applications Requiring Magnetic Workholding

Cast iron can be magnetized for magnetic chuck workholding, while mineral casting cannot support this functionality without modification.

High-Speed Spindle Applications

The lower modulus of mineral casting may result in excessive deflection under very high dynamic forces from high-speed spindles, requiring additional structural reinforcement.

Legacy Equipment and Retrofit Applications

Equipment originally designed for cast iron beds may not accommodate the different thermal expansion characteristics and mounting methods of mineral casting.

Manufacturing Considerations and Constraints

Component Size and Complexity

Mineral casting excels at producing complex geometric shapes in a single casting, including internal channels for cable routing, integrated mounting features, and irregular shapes that would require extensive machining from cast iron.

Maximum dimensions for mineral casting components typically reach 20,000×4,000×1,000mm, comparable to precision granite capabilities. However, the casting process requires careful mold design and curing time that extends production lead times compared to machining operations.

Machining and Finishing Requirements

Both materials require precision machining to achieve final dimensional tolerances. Mineral casting machines similarly to cast iron, using carbide or polycrystalline diamond cutting tools. However, the abrasive nature of mineral aggregates accelerates tool wear.

Surface finishing of mineral casting produces a different aesthetic than cast iron, with visible aggregate particles and characteristic surface texture. Critical bearing surfaces require precision grinding to achieve required flatness and straightness tolerances.

Cost Analysis and Total Value Consideration

Initial Cost Comparison

Mineral casting beds typically command 20-40% higher initial costs compared to equivalent cast iron structures. This premium reflects more expensive raw materials, longer production cycles, and specialized manufacturing requirements.

For simple, high-volume cast iron bed designs, the cost premium may be difficult to justify without corresponding performance benefits. However, complex geometries achievable through casting can reduce finishing operations and assembly requirements.

Lifetime Cost and Maintenance

Cast iron beds require periodic scraping to restore flatness, typically every 3-5 years depending on use intensity. This maintenance involves skilled labor, equipment downtime, and eventual material removal that reduces bed thickness over decades of service.

Mineral casting beds maintain flatness specifications indefinitely under normal use conditions. The inherent material stability eliminates scheduled maintenance for flatness restoration, reducing lifetime ownership costs despite higher initial investment.

Economic Analysis Summary

FAQ: Mineral Casting vs Cast Iron Machine Beds

Q1: What is polymer granite and how does it differ from mineral casting?

A: “Polymer granite” and “mineral casting” typically refer to the same class of materials—aggregate composites with polymer or mineral binders. The terminology varies by manufacturer and region. Both offer similar advantages over traditional cast iron, including superior damping and thermal stability.

Q2: What thermal expansion coefficient should I expect from mineral casting?

A: Quality mineral casting exhibits thermal expansion coefficients below 0.001mm/°C, approximately 12 times lower than cast iron. This thermal stability makes it ideal for precision applications where temperature variations cannot be precisely controlled.

Q3: How does vibration damping in mineral casting compare to granite?

A: Mineral casting typically provides higher damping capacity than granite, with loss factors of 6-10% compared to granite’s 2-4%. However, granite offers other advantages including higher compressive strength and superior chemical inertness for cleanroom applications.

Q4: Can mineral casting beds be used in vacuum environments?

A: Yes, mineral casting is suitable for vacuum applications when properly specified. The binder system must be selected to avoid outgassing in vacuum conditions. Some mineral casting formulations are specifically developed for ultra-high vacuum applications.

Q5: What is the expected lifetime of a mineral casting machine bed?

A: Mineral casting beds exhibit no fatigue degradation under normal operating conditions and maintain their properties indefinitely. Unlike cast iron, there is no known wear mechanism that degrades flatness over time, eliminating scheduled maintenance requirements for geometric accuracy preservation.

Q6: Which material is better for high-precision granite machine bases in semiconductor equipment?

A: For semiconductor equipment, high-density black granite with 3100kg/m³ density remains the preferred choice due to its combination of thermal stability, vibration damping, and cleanroom compatibility. Mineral casting can serve similar functions but granite’s proven track record and material consistency make it the conservative specification for critical semiconductor applications.

Conclusion

The choice between mineral casting and cast iron machine beds depends on application requirements, budget constraints, and lifetime cost considerations. For most precision machinery applications—including CNC machining centers, CMMs, and semiconductor equipment—mineral casting delivers measurable performance advantages that justify the higher initial investment through reduced maintenance and improved accuracy retention.

The superior vibration damping of mineral casting, typically 6-10× higher than cast iron, reduces machining cycle times and improves surface finishes. The exceptional thermal stability, with expansion coefficients below 0.001mm/°C, maintains precision across temperature variations that would cause significant errors in cast iron structures.

However, engineers should recognize that cast iron remains the appropriate choice for high-load applications, magnetic workholding requirements, and cost-sensitive applications where precision requirements do not demand mineral casting’s performance advantages.

When specifying mineral casting components, partner with manufacturers offering comprehensive quality certifications including ISO9001:2015, ISO14001, ISO45001, and CE marking. Verify manufacturing capabilities for your required dimensions and request material property documentation to confirm specifications are met. The right machine bed material, properly specified and manufactured, provides the foundation for decades of precise, reliable operation.
