Here’s a question I like to ask precision shop managers: when was the last time you actually trusted your surface plate?
Not “it looks flat.” Not “it passed incoming inspection.” I mean trusted — the kind of trust where you put a freshly machined part on it, run your measurements, and know the numbers you’re reading are about the part, not about the plate drifting underneath it.
Most people hesitate. Some change the subject. A few admit they have no idea, because they never checked.
That’s the starting point for this whole conversation.
Why Surface Plates Still Matter More Than Most Buyers Think
We live in an era of laser interferometers, vision systems, and touch probes that can measure microfeatures in seconds. It’s easy to treat the surface plate as a relic — a heavy flat rock (or heavy flat piece of cast iron) that sits in the corner of the inspection room doing almost nothing.
Except it does almost everything.
The surface plate is the reference plane against which most manual and semi-manual measurements are made. Every micrometer reading you take with a height gauge, every test indicator setup, every comparison between a machined workpiece and a reference standard — all of it flows through the surface the part is sitting on. If that surface isn’t geometrically stable and thermally predictable, every measurement downstream carries some unquantified error.
The uncomfortable truth is that most shops are running quality control on foundations they haven’t questioned in years. Sometimes decades.
Cast Iron vs. Granite: The Real Comparison Nobody Does Properly
Walk into ten precision manufacturing facilities and you’ll find a roughly 50/50 split between cast iron and granite surface plates. Ask the buyers why they chose what they chose, and most will give you an answer that sounds reasonable but doesn’t hold up to scrutiny.
“I chose cast iron because it’s traditional.”
“I chose granite because it’s more stable.”
Both of those answers are incomplete. Here’s what the actual decision framework looks like:
Cast iron surface plates have been the industrial standard for over a century, and for good reasons. They have excellent damping characteristics — they absorb vibration better than granite, which matters in heavy machining environments. They’re also easier to resurface when they wear. A skilled machinist can scrape a worn cast iron surface plate back to specification relatively quickly, which makes maintenance straightforward.
The tradeoff is thermal sensitivity. Cast iron expands and contracts noticeably with temperature changes. A cast iron plate in an unheated shop in winter behaves geometrically differently than the same plate in summer. For work requiring micron-level precision across large measurements, this thermal cycling isn’t trivial.

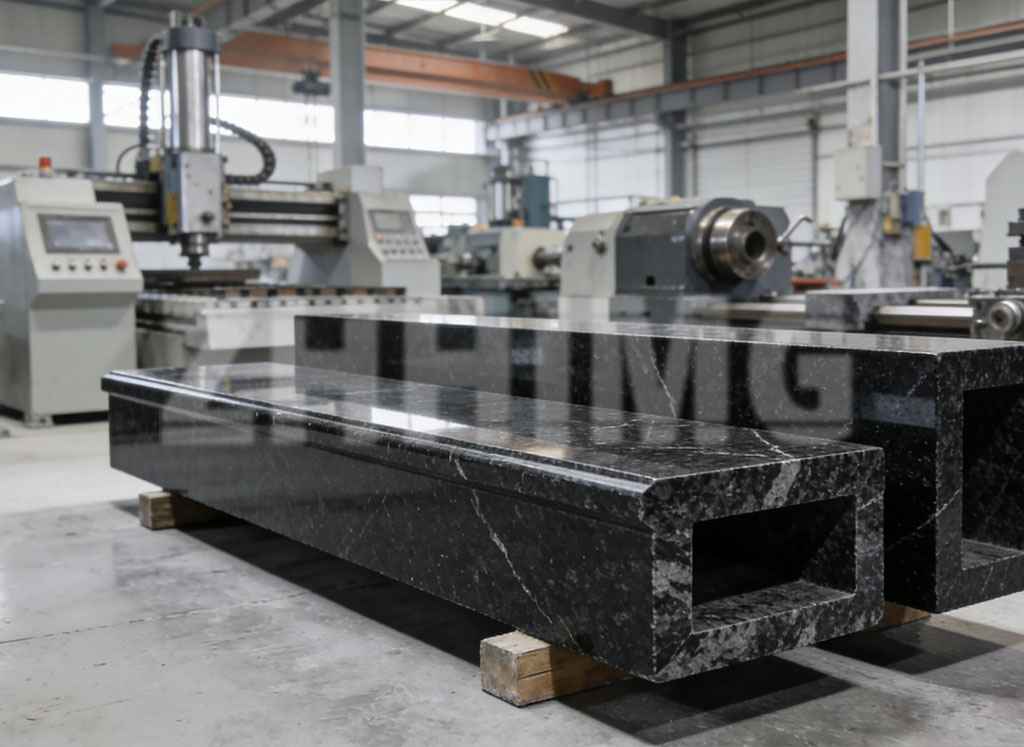

Granite surface plates solve the thermal problem elegantly. Black granite has a very low thermal expansion coefficient and exceptional dimensional stability across normal operating temperature ranges. A granite plate doesn’t need climate control to hold its geometry the way cast iron does. It’s also non-corrosive, doesn’t rust, and doesn’t require oiling.
The tradeoff is repairability. When a granite surface wears or gets damaged, you can’t scrape it back to tolerance the way you can with cast iron. You’re looking at either re-lapping (expensive and time-consuming) or replacement. This is why the initial material quality and manufacturing precision matter so much more for granite — you’re making a long-term commitment at the point of purchase.
What actually matters in the field: for most inspection applications in controlled environments, granite’s thermal stability gives it a measurable edge. For heavy machining and large-scale assembly where vibration damping and repairability matter, cast iron still earns its place.
The Grade System Explained: What You’re Actually Buying
Most surface plate specifications reference standards like DIN 876, ASME GGGP-463C, or ISO 8512. These standards define accuracy grades — typically Grade 00, Grade 0, Grade 1, and Grade 2 — based on flatness tolerance.
Here’s what those grades mean in practice, using the DIN 876 standard as a reference:
Grade 00 allows approximately 2.3 microns of flatness deviation over 1,000mm. Grade 0 allows about 4.6 microns. Grade 1 allows roughly 9.2 microns. Grade 2 allows approximately 18.5 microns.
That doubling pattern isn’t arbitrary — each step down in grade represents a doubling of the permissible error. And that error budget has to cover not just the manufacturing tolerance, but the plate’s degradation over its service life.
For context: if you’re measuring machined components to ±2 microns, a Grade 1 surface plate (9.2 microns of permissible flatness deviation) is already consuming nearly 20% of your total tolerance band — before you account for any other source of measurement uncertainty. That’s a number worth sitting with.
This is why serious metrology labs and aerospace quality systems almost universally specify Grade 00. The extra cost of the higher-grade plate is trivial compared to the cost of an undetected measurement error cascading into a batch of non-conforming parts.
What Killed Your Last Surface Plate (And What Good Ones Prevent)
Surface plates don’t fail dramatically. They drift. They absorb moisture. They accumulate subsurface damage from dropped workpiece carriers. They develop localized wear patterns from repeated contact with the same measurement points.
The most common failure mode for cast iron plates in humid environments is moisture-induced dimensional change. Even with proper oiling, cast iron is porous enough to absorb water vapor over time, especially in facilities without climate control. The result is a slow, creeping loss of flatness that doesn’t show up on the calibration certificate but shows up every time you try to hold a tight tolerance.
Granite plates fail differently. The most common issue is not a granite quality problem — it’s a thermal shock problem. A granite surface plate that’s been sitting in a cold warehouse and then moved into a warm, humid inspection room can experience localized stress that creates micro-cracks in the subsurface. This doesn’t happen with proper acclimatization, but in the real world, things get moved fast.
The other failure mode for both materials is impact damage. A dropped steel workpiece, an uncareful placement of a heavy gauge block — these create local dents or chip marks that become stress concentrators and geometric reference errors. Good surface plates come with protective workpiece carriers specifically to prevent this, and most operators ignore the recommendation until they’ve already created a problem.
The Accessory Ecosystem Nobody Talks About
A surface plate sitting on a poorly leveled stand is a compromised surface plate. The stand, the mounting method, and the environment all contribute to the plate’s effective performance.
For cast iron plates, the traditional approach is a cabinet stand with adjustable leveling feet. The idea is to get the plate within a few arcminutes of level, then let the plate’s own mass distribute any residual unevenness. This works reasonably well, but it assumes the floor is reasonably rigid and doesn’t flex under load.
For granite plates, especially large format plates, a rigid, monolithic support structure matters even more. Granite is rigid but brittle — it doesn’t flex to accommodate minor foundation unevenness the way cast iron does. A granite plate that’s supported on an uneven foundation will experience differential stress that can eventually cause cracking, particularly if there are thermal cycles involved.
Accessories that actually matter: proper workpiece carriers to prevent impact damage, lid covers to keep debris and contamination off the measurement surface, and periodic calibration certificates from an accredited lab. A plate without a current calibration certificate is making promises it can’t back up.
Sourcing From a Real Manufacturer vs. a Catalog Reseller
This matters more than most buyers realize.
When you buy a surface plate from a distributor that sources from multiple factories, you often get a product with a specification sheet but no real manufacturing history. You don’t know who made it, what raw materials were used, or whether the person who scraped the final surface had three years of experience or thirty.
The difference shows up in edge behavior, surface texture consistency, and long-term flatness retention. A surface plate from a precision manufacturer with decades of hand-scraping experience will hold its geometry longer because the initial surface was formed more carefully. A plate from a commodity supplier might meet the flatness specification at delivery — but six months later, in a real factory environment, the gap between them becomes measurable.
Ask your supplier directly: Who made this? Where? Can I visit the facility? How many years of scraping experience do your operators have? What traceability does your calibration chain actually provide?
Suppliers who refuse to answer those questions are telling you something.
Making the Right Choice for Your Application
The decision isn’t really cast iron vs. granite. It’s about matching the material and grade to your actual requirements.
If you’re running a calibration lab with strict environmental controls and micron-level tolerance requirements: specify Grade 00 granite, with calibration traceability to a national metrology institute, and a documented temperature and humidity operating range.
If you’re running a production machining environment with heavy equipment and significant floor vibration: a well-supported cast iron plate with proper vibration damping may actually outperform granite, because the vibration absorption matters more than the thermal stability in that context.
If you’re in a Southeast Asian climate without air conditioning in the production area: granite’s moisture resistance isn’t optional. It’s the difference between a plate that holds its geometry year-round and one that drifts with every monsoon season.
If you’re buying for a medical or aerospace quality system: demand full traceability documentation, accredited calibration certificates, and a manufacturer with documented experience in those regulated sectors. The procurement spec matters as much as the product spec.
What Comes Next After the Plate
Here’s something most surface plate buyers never think about until it’s too late: the surface plate is only as reliable as the system around it.
Your height gauge needs to be calibrated. Your test indicators need to be in good mechanical condition. Your temperature and humidity logging needs to be current. Your technicians need to understand how to account for thermal expansion when measuring components that are at a different temperature than the plate.
A Grade 00 granite surface plate doesn’t automatically give you Grade 00 measurement results. It gives you a reliable reference plane. The rest of the measurement chain has to be built correctly too.
That’s worth remembering the next time someone asks you if you trust your surface plate. The answer is probably “not entirely” — and the fix probably starts with looking at the whole system, not just the plate itself.
But it definitely starts with buying the right plate in the first place.
