In a metrology laboratory, the measurement system is only as reliable as the surface supporting it. Coordinate measuring machines (CMMs), vision inspection systems, laser interferometers, height gauges, optical comparators, and calibration fixtures all depend on a stable reference plane. If the base moves, deforms, vibrates, or changes dimension with temperature, even a high-resolution instrument can produce unreliable results.
For QC engineers, laboratory managers, and industrial equipment buyers, this creates a practical challenge: how can a laboratory maintain repeatable geometric accuracy when measuring parts at the micron level or below? The answer often begins with the substrate beneath the equipment.
Premium natural granite substrates—such as granite surface plates, granite machine bases, granite straightedges, and custom granite metrology components—are widely used because they provide a combination of thermal stability, vibration damping, wear resistance, corrosion resistance, and long-term dimensional reliability. When properly selected, manufactured, calibrated, and maintained, a natural granite metrology base becomes a dependable foundation for testing standards and precision inspection.
ZHHIMG® manufactures precision granite solutions for metrology, semiconductor, CMM, laser, automation, and high-precision industrial applications. The focus is not simply on producing a flat stone surface; it is on engineering a stable measurement reference that supports the complete inspection process.zhhimg
Why Natural Granite Is Used in Metrology Laboratories
Natural granite has long been recognized as a preferred material for precision surface plates and structural metrology components. Unlike many metallic materials, granite does not rust, does not require protective oil to prevent corrosion, and is generally less sensitive to minor shop-floor humidity changes.
More importantly, a properly selected granite substrate can provide predictable behavior under the mechanical and environmental conditions found in a precision laboratory.
Material properties that support stable measurement
The performance of a granite surface plate or granite machine base depends on the mineral composition, internal structure, density, grain uniformity, residual stress condition, and machining quality of the material. Not all stone is suitable for metrology use.
A premium natural granite substrate should be evaluated for:
- High density and a compact internal structure
- Low porosity and low water absorption
- Uniform mineral composition
- Good dimensional stability over time
- High compressive strength
- High hardness and abrasion resistance
- Low internal stress after material preparation
- Suitability for precision lapping and geometric calibration

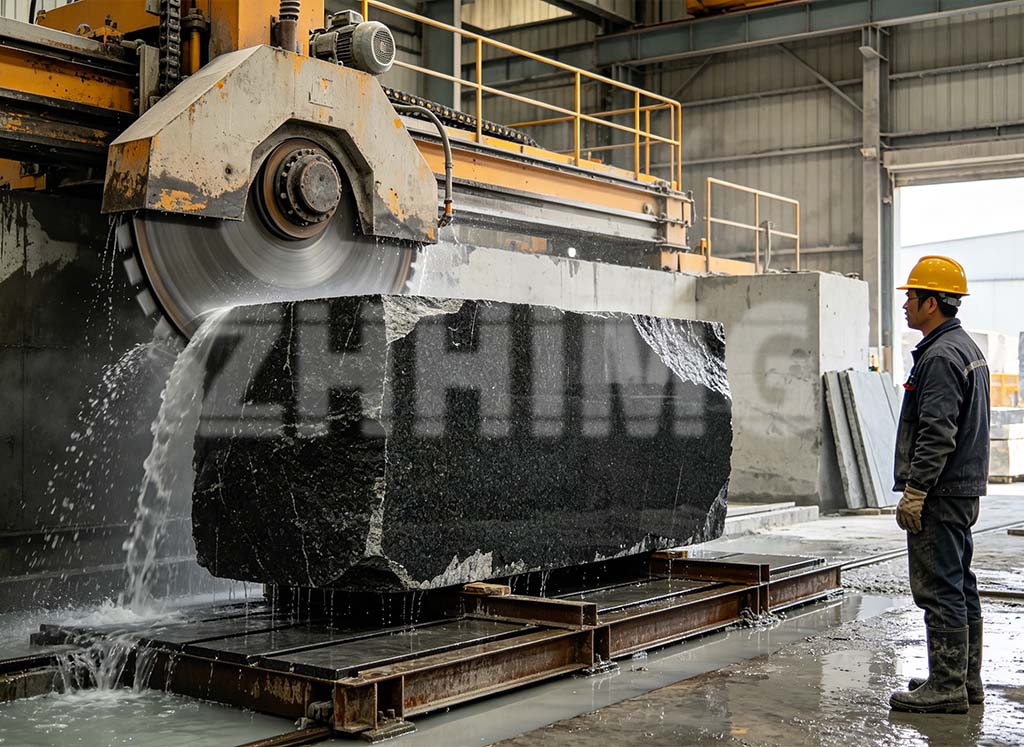

ZHHIMG® uses selected black granite for ultra-precision applications. The company describes its granite material as high-density black granite, with density around 3,100 kg/m³, selected for stable precision manufacturing rather than ordinary decorative stone applications.zhhimg
Granite versus marble or low-grade stone
In industrial purchasing, the word “stone” can be misleading. Decorative marble, low-density natural stone, and unqualified granite should not be treated as equivalent to precision granite.
A metrology-grade granite substrate must be capable of being ground and hand-lapped to a controlled flatness while retaining that geometry during normal use. Lower-grade materials may contain more pores, veins, inconsistent grain structures, weaker areas, or greater local variation in physical properties. These conditions can affect flatness retention, mounting reliability, wear behavior, and long-term repeatability.
For high-accuracy inspection, buyers should request more than a visual description of the stone. They should ask for material information, flatness grade, inspection documentation, calibration method, support-point recommendations, and acceptance criteria.
Thermal Stability, Hardness, and Structural Performance
Precision measurement is strongly influenced by temperature. Every solid material expands or contracts as its temperature changes. This behavior is commonly described by the coefficient of thermal expansion, often abbreviated as CTE.
Thermal Stability, Hardness, and Structural Performance
Precision measurement is strongly influenced by temperature. All solid materials expand or contract when the temperature changes, and this dimensional response must be considered in any high-accuracy inspection environment.
For granite metrology bases, surface plates, and machine structures, thermal stability is not determined only by one published material value. Actual performance also depends on whether temperature is uniform across the entire component, how long the material has stabilized in the laboratory, and whether heat is introduced by equipment, lighting, operators, or airflow.
Natural granite is widely used in metrology because it offers favorable thermal stability for precision applications. However, reliable results still require a controlled measurement environment, particularly when inspection tolerances are in the micron range.
When selecting or operating a granite substrate, engineers should consider:
- The thermal properties of the specific granite material.
- Temperature uniformity across the granite working surface.
- Temperature differences between the granite base, measuring instrument, fixture, and workpiece.
- Heat generated by motors, lighting, electronic equipment, or nearby machinery.
- Direct sunlight, air drafts, HVAC cycling, and localized heat sources.
- Material differences between granite, steel inserts, aluminum frames, ceramics, glass, and bonded assemblies.
- Required stabilization time before final inspection or calibration.
A high-quality granite base can remain highly stable in a controlled environment. However, if one area is exposed to warmer air, direct lighting, or heat from a machine axis, local temperature variation may affect geometric accuracy and measurement repeatability. For this reason, high-end metrology laboratories typically combine precision granite components with temperature-controlled, humidity-controlled, and vibration-managed working conditions.
Even a small temperature difference can become important when the workpiece is long, the tolerance is tight, or the measurement system operates at micron-level resolution.
Coefficient of thermal expansion
Natural granite generally has a relatively low coefficient of thermal expansion compared with many common engineering metals. However, laboratory performance depends on more than a published average CTE value.
Engineers should consider:
- The CTE of the actual granite material batch
- Temperature uniformity across the granite surface
- Temperature differences between the granite base and the measured part
- Heat generated by motors, lights, operators, and nearby equipment
- Direct sunlight, air drafts, HVAC cycling, and localized heat sources
- The CTE mismatch between granite, steel inserts, aluminum structures, ceramics, and bonded components
A granite CMM base may be very stable overall, but measurement uncertainty can still increase if one side of the base is warmer than the other. For this reason, controlled temperature and humidity environments remain essential for high-end calibration and inspection.
Hardness and wear resistance
Granite is valued for its resistance to wear under normal metrology use. A precision granite surface plate does not develop burrs in the same way as a metal plate. This is important because raised burrs can affect workpiece contact and distort measurement results.
Key operating advantages include:
- No rust formation on the reference surface
- No burr formation from ordinary contact
- Good resistance to scratches and abrasive wear
- Low maintenance compared with many metal reference surfaces
- Compatibility with precision lapping and periodic recalibration
- Reduced risk of surface contamination from protective oils
Still, granite is not indestructible. Point impacts, improper lifting, concentrated loading, unsupported overhangs, and collision with heavy fixtures can chip edges or create localized damage. Good laboratory practice includes using proper supports, lifting points, clean fixtures, and protective procedures for large workpieces.
Vibration damping and stiffness
Granite provides useful vibration-damping behavior for many precision systems. This makes it especially suitable for equipment such as CMMs, optical inspection platforms, laser systems, air-bearing structures, and precision motion stages.
A granite machine base can help reduce the effect of environmental vibration, motor-induced disturbance, and structural resonance. However, granite alone does not solve every vibration problem. The complete system must be evaluated, including:
- Foundation stiffness
- Machine support configuration
- Isolator selection
- Center of gravity
- Dynamic loads from moving axes
- Cable and hose forces
- Air-bearing supply stability
- Nearby presses, forklifts, compressors, and production equipment
The correct granite design is therefore a system-engineering decision, not only a material-selection decision.
DIN 876 and the Importance of Flatness Grades
For granite surface plates and related measuring references, flatness is one of the most important performance characteristics. A surface can appear smooth and still be unsuitable for precision measurement if its global or local flatness is outside the required tolerance.
DIN 876 is a widely recognized standard associated with surface plates and defines accuracy grades commonly used for precision reference surfaces. Buyers should confirm the applicable version of the standard, the plate dimensions, the specified grade, and the inspection method before placing an order.
Common accuracy grade considerations
While exact allowable deviations depend on plate dimensions and the applicable standard requirements, the practical principle is straightforward:
- Higher-accuracy grades are intended for more demanding inspection and calibration tasks.
- Larger plates require careful design, support, lapping, and verification.
- Flatness must be evaluated across the full usable surface.
- Local deviations matter because gauges, fixtures, and workpieces may contact only specific areas.
- Calibration documentation should identify the measurement method, environmental conditions, date, and traceability status.
In many laboratories, a granite surface plate supports height gauges, dial indicators, electronic indicators, calipers, fixtures, comparators, and assembly checks. For more complex systems, custom granite components may form the structural base of a CMM, vision measuring machine, or automated inspection platform.
What buyers should specify
A complete purchasing specification for a granite metrology base should include:
- Overall dimensions: length, width, and thickness
- Accuracy grade or maximum flatness requirement
- Required standard, such as DIN 876 where applicable
- Surface finish and lapping requirement
- Load capacity and intended equipment weight
- Support-point layout and leveling requirements
- Threaded inserts, T-slots, holes, counterbores, or mounting interfaces
- Edge treatment, chamfers, and corner protection
- Calibration certificate and measurement traceability requirements
- Packaging, lifting, installation, and export requirements
- Environmental conditions during final inspection
These details help prevent a common B2B purchasing problem: receiving a granite plate that is dimensionally correct but not optimized for the actual machine, fixture, loading condition, or measurement procedure.
Selecting a Granite Substrate for Your Application
The right granite solution depends on whether the product will serve as a manual measuring surface, a machine base, an air-bearing structure, a guideway reference, or a custom assembly platform.
For laboratory surface plates
A granite surface plate should be selected based on measurement accuracy, part size, fixture layout, handling method, and recalibration plan. The laboratory should also provide enough clearance around the plate for cleaning, instrument movement, and operator access.
Typical applications include:
- Dimensional inspection and first-article inspection
- Height-gauge measurement
- Dial-indicator comparison
- Fixture setup and validation
- Gauge calibration support
- Precision assembly verification
- Straightness, parallelism, and perpendicularity checks
For custom granite machine bases
Custom granite components require additional engineering review. CAD drawings alone may not show all functional requirements. It is helpful to define datum surfaces, insert locations, assembly sequence, flatness zones, cable routing, pneumatic passages, and interface relationships with metal, ceramic, glass, or motion components.
ZHHIMG® provides precision granite, metal, ceramic, mineral casting, glass, and related ultra-precision manufacturing solutions for industries including aerospace, semiconductor, CMM, CNC, and precision laser equipment. Its published manufacturing profile also indicates large-scale processing capacity for substantial workpieces and volume orders.zhhimg
For highly integrated platforms, the most effective approach is to involve the granite manufacturer early in the design process. Early collaboration can reduce unnecessary machining features, improve assembly accessibility, lower transportation risk, and help ensure that the final geometry can be measured and verified efficiently.
Conclusion & CTA
A premium natural granite substrate is more than a passive work surface. It is a precision reference that influences the repeatability, traceability, and credibility of laboratory measurement results. Stable material selection, controlled flatness, appropriate thermal management, correct support, and traceable calibration all contribute to a dependable metrology environment.
For QC engineers and laboratory managers, the key is to specify the granite solution according to the actual testing requirement—not simply by length, width, and price. Consider the required flatness grade, material quality, thermal behavior, mounting configuration, load condition, inspection documentation, and future calibration needs.
To explore precision granite surface plates, custom granite machine bases, granite measuring tools, and integrated ultra-precision structural solutions, visit ZHHIMG®. For projects involving special dimensions, inserts, air-bearing interfaces, CMM structures, or complex assemblies, a technical consultation can help define the right substrate before production begins.zhhimg
