Ultra-precision automation depends on more than high-resolution encoders, advanced motion controllers, or carefully selected linear motors. The mechanical structure beneath the motion system has a direct effect on positioning stability, settling time, repeatability, surface quality, imaging clarity, and measurement confidence.
For QC engineers, laboratory managers, and B2B equipment buyers, one of the most common challenges is managing vibration without creating an overly complex or difficult-to-maintain machine. A high-speed stage may meet its nominal travel requirement but still generate structural oscillation. An optical inspection system may have an excellent camera and lens but produce inconsistent images because of machine vibration. A semiconductor or CMM platform may use precise sensors but lose repeatability due to friction, guideway wear, or a poorly damped base.
Granite air bearing systems and mineral casting structures address different parts of this problem. Granite air-bearing guides enable near-frictionless motion on a controlled air film, while mineral casting machine bases can absorb vibration energy and support complex, integrated structural designs. When selected and engineered together, they provide a strong platform for ultra-precision automation.

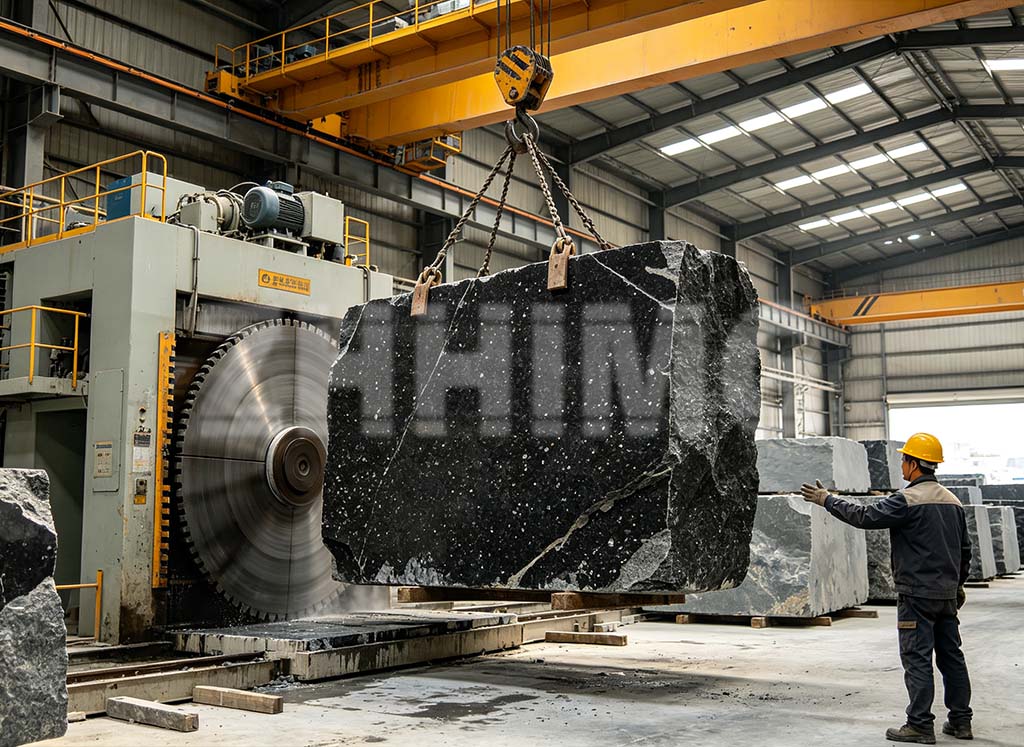

ZHHIMG® provides precision granite, granite air-bearing, mineral casting, ceramic, metal, and glass solutions for ultra-precision equipment applications. Its published manufacturing information specifically identifies precision granite and mineral casting as options for advanced machine structures and vibration-sensitive equipment.
Granite Air Bearings: Motion Without Mechanical Contact
Traditional rolling-element guides and mechanical bearings are proven solutions for many automation systems. However, mechanical contact can introduce friction, wear, lubrication requirements, stick-slip behavior, and vibration transmission. These effects become increasingly important in nanometer- and micron-level positioning applications.
A granite air bearing system uses compressed air to create a thin pressurized film between the moving element and a precision granite guide surface. The carriage floats above the granite guideway rather than rolling or sliding in direct mechanical contact.
Air bearings are used where highly constant velocity, low vibration, excellent geometric motion quality, and minimized friction are required. They replace mechanical contact with a thin air film, reducing wear, friction, vibration, and hysteresis effects.
Why granite is well suited to air-bearing systems
Precision granite provides an effective guideway and structural material for air-bearing applications because it can be ground and lapped to controlled flatness and straightness. Its natural material properties also support stable long-term operation.
Key advantages of granite air-bearing guides include:
- Near-frictionless linear or rotary motion.
- No rolling contact between the moving carriage and guideway.
- No conventional stick-slip behavior at low speed.
- Very smooth constant-velocity scanning.
- Minimal guideway wear under correct operating conditions.
- No lubrication oil required on the guide surface.
- Nonmagnetic behavior for sensitive metrology and semiconductor applications.
- High hardness and good resistance to surface wear.
- Good vibration-damping characteristics.
- Compatibility with cleanroom-oriented motion systems when air cleanliness is controlled.
ZHHIMG® describes granite air-bearing guides as using a compressed-air film, typically in the range of 5 to 20 microns, to float the carriage above a granite guide rail. The company also notes that the non-contact principle can eliminate conventional friction and wear while supporting clean, smooth, and stable motion.zhhimg
Air-bearing design requirements
Air bearings offer exceptional motion performance, but they require disciplined engineering. The guideway geometry, air supply quality, load capacity, stiffness, surface finish, and contamination control all affect system results.
A granite air-bearing project should define:
- Required travel length, load capacity, and moving mass.
- Static and dynamic stiffness requirements.
- Straightness, flatness, and parallelism of the granite guide surfaces.
- Bearing layout and pressure-zone design.
- Required acceleration, velocity, and settling time.
- Air supply pressure, flow, filtration, and dryness requirements.
- Operating environment, including cleanroom or laboratory conditions.
- Cable, hose, and pneumatic-force management.
- Emergency contact conditions during air-supply interruption.
- Installation datum surfaces and support-point locations.
- Inspection and calibration method for the completed assembly.
A well-designed air-bearing system can average small surface irregularities across the air film, helping produce highly smooth motion. However, this should not be interpreted as permission for poor granite machining. The quality of the granite guideway remains critical to the final straightness, flatness, stiffness, and long-term reliability of the system.
Mineral Casting: Damping the Structure Behind the Motion
While granite air bearings reduce friction and mechanical-contact disturbance at the guideway, mineral casting addresses a different requirement: damping vibration within the machine structure itself.
Mineral casting is also known as polymer concrete, epoxy granite, or composite mineral casting. It is an engineered composite made from graded mineral aggregate bonded with a polymer resin system. The aggregate provides mass and structural rigidity, while the polymer binder contributes internal energy dissipation.
This structure can be particularly effective in high-speed automation, where moving axes, linear motors, robotic systems, machining forces, pumps, and nearby equipment create vibration that may otherwise travel through a steel or cast-iron frame.
Damping versus stiffness
Equipment designers should distinguish clearly between stiffness and damping:
- Stiffness describes how much a structure deflects under a static or applied load.
- Damping describes how quickly vibration energy is dissipated after a disturbance.
- Mass affects the dynamic response of the system and can help resist external excitation.
- Natural frequency determines the vibration modes most likely to be excited during operation.
A structure can be stiff but poorly damped, causing it to ring or resonate after rapid motion changes. It can also be well damped but insufficiently stiff for rail alignment, tool loading, or payload requirements. High-end equipment must balance both properties.
Mineral casting is widely used in machine beds and supporting structures because it provides high vibration damping, chemical resistance, and thermal stability. SCHNEEBERGER describes mineral casting as suited to machine beds and foundations where dynamic, high-precision motion is required, stating that its damping can be significantly higher than steel or cast iron.
Why mineral casting supports automation upgrades
Mineral casting can be molded near net shape, allowing equipment builders to integrate functional features that would require multiple fabricated parts in a welded steel frame or substantial machining in a metal casting.
Common mineral casting design features include:
- Internal ribs and cavities for optimized stiffness-to-weight performance.
- Embedded steel inserts for rails, motors, and mounting interfaces.
- Integrated cable channels and pneumatic passages.
- Coolant, vacuum, or process-fluid routes where appropriate.
- Built-in leveling pads, anchor locations, and equipment interfaces.
- Complex external geometry without extensive post-casting rough machining.
- Damping mass positioned near sensitive motion or measurement modules.
A mineral casting base is particularly useful for high-speed linear-motor equipment, PCB drilling systems, automated inspection machines, precision CNC structures, laser-processing platforms, battery-equipment frames, and semiconductor automation modules. ZHHIMG® notes that mineral casting can provide a practical solution for vibration-sensitive CNC equipment, with performance influenced by the aggregate-resin structure, stiffness, damping, and machine natural frequencies.zhhimg
Combining Granite Air Bearings and Mineral Casting
Granite air bearings and mineral casting are not competing technologies. In many ultra-precision systems, they can be used together in a hybrid architecture.
The granite component can provide the highly accurate, hard, stable guideway or reference surface. The mineral casting structure can provide the damping mass, integrated geometry, and support framework beneath or around the motion system.
A practical hybrid structure
A typical integrated solution may include:
- A mineral casting machine base designed for high damping and complex internal geometry.
- Precision-machined metal inserts embedded in the casting for mounting interfaces.
- Granite guide rails or a granite motion beam with lapped functional surfaces.
- Air-bearing pads or carriages that move on the granite guideway.
- Linear motors, encoders, sensors, and cable-management systems mounted to controlled datum surfaces.
- Ceramic wear or insulation components at specialized interfaces.
- Vibration-isolation feet or a controlled foundation beneath the complete assembly.
This approach allows the designer to place each material where it performs best. Granite supports precision geometry and air-bearing motion. Mineral casting absorbs structural vibration and enables integrated functional features. Metal inserts provide strong threaded and mounting interfaces. Ceramics can be introduced where electrical insulation, wear resistance, or chemical resistance is required.
ZHHIMG® states that a hybrid design can use granite rails and reference surfaces within a mineral-cast or metal frame. Its guidance distinguishes granite for stable precision datums, lapped reference surfaces, metrology, optics, semiconductor equipment, and air-bearing support, while positioning mineral casting for high damping, complex geometry, embedded services, and integrated machine functions.zhhimg
Typical applications
Granite air-bearing and mineral-casting combinations are relevant to:
- Semiconductor wafer inspection and handling equipment.
- CMMs and high-end metrology systems.
- Optical inspection and automated vision platforms.
- Laser measurement and laser-processing equipment.
- High-speed PCB drilling and positioning systems.
- Precision motion stages and XY positioning platforms.
- Industrial CT and X-ray inspection equipment.
- Flat-panel display manufacturing equipment.
- Precision dispensing, coating, and assembly systems.
- Advanced research instruments and laboratory automation.
For example, a wafer-inspection stage may use a mineral-casting frame to limit structural vibration during rapid acceleration, a granite guideway to maintain stable reference geometry, and air bearings to support smooth, wear-free scanning motion. The performance of the full system still depends on encoder selection, motor tuning, air quality, cable forces, thermal control, foundation design, and final calibration.
Quality Control and Selection Criteria
The value of an ultra-precision structural system is determined by how well its interfaces are designed, machined, inspected, assembled, and protected. A supplier should be able to explain the full control route rather than only quote a material name or general accuracy claim.
Critical engineering and inspection points
For granite air-bearing and mineral-casting projects, buyers should define:
- Functional datums and assembly reference surfaces.
- Flatness, straightness, parallelism, and perpendicularity requirements.
- Rail-seat and air-bearing guideway geometry.
- Position requirements for inserts, dowel holes, mounting holes, and ports.
- Surface finish requirements for air-bearing contact surfaces.
- Air-supply filtration, dryness, pressure, and flow specifications.
- Structural load, dynamic load, and acceleration requirements.
- Thermal conditions during operation and final inspection.
- Support points, leveling method, lifting features, and installation procedure.
- Cleaning, contamination-control, and packaging requirements.
- Final inspection reports, calibration certificates, and traceability records.
Where granite surface plates or calibration references are involved, DIN 876 may be used to define relevant surface-plate accuracy grades. For custom granite air-bearing structures, the more important requirement is often the project-specific geometric specification for guideway surfaces, air-bearing interfaces, and assembled motion performance.
Conclusion & CTA
Granite air-bearing systems and mineral casting structures help solve two central challenges in ultra-precision automation: friction-free motion and structural vibration damping. Granite air bearings support exceptionally smooth, low-wear motion on stable precision guideways. Mineral casting provides a high-damping, corrosion-resistant, and design-flexible foundation for the structure behind that motion.
The strongest solution is usually not based on a single material or component. It comes from engineering the complete system: guideway geometry, air supply, damping structure, mounting interfaces, thermal behavior, support arrangement, measurement strategy, and final inspection.
For teams developing semiconductor equipment, CMM platforms, optical inspection systems, laser machines, high-speed automation, or custom precision motion equipment, ZHHIMG® supports projects involving granite air-bearing structures, precision granite components, mineral casting bases, industrial ceramics, and integrated precision assemblies. Visit www.zhhimg.com to explore relevant manufacturing solutions or discuss a custom vibration-control and motion-platform requirement with the engineering team.
