The Engineering Behind Granite Insert Anchorage
Advanced Epoxy Bonding Technology
Granite does not possess natural threading capabilities. Our production team drills precise holes and utilizes high-strength structural epoxy adhesives to bond stainless steel insert nuts. This specialized adhesive forms a powerful chemical and mechanical matrix with the granite pore network, preventing loosening under stress.
Preventing Pull-Out Failures Under Dynamic Stress
High-speed linear stages create continuous upward and downward forces on mounting points. ZHHIMG® custom insert designs feature specialized external grooves that lock mechanically into the epoxy bed. This design choice prevents catastrophic pull-out failures, safeguarding expensive industrial equipment from alignment shifts.
Maintaining Precision Alignment Tolerance

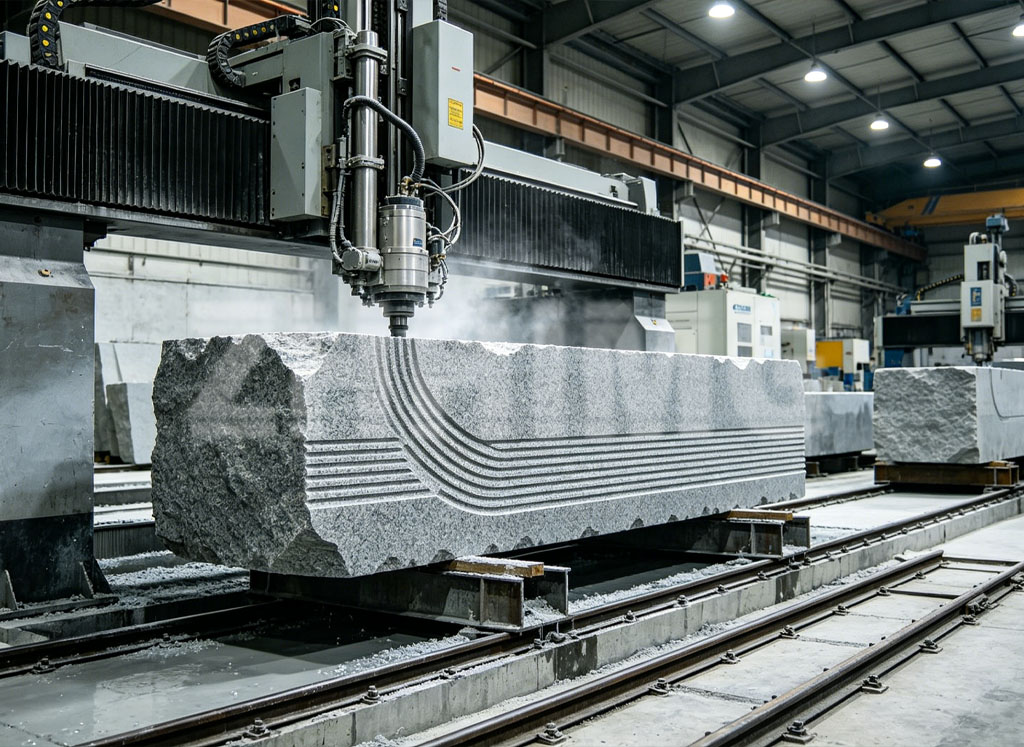

Installing multiple inserts across a large granite base requires tight tolerance controls. We utilize advanced CNC machining centers to hold insert positioning tolerances within ±0.05mm. This extreme precision ensures that your multi-axis linear rail blocks line up perfectly without forcing or binding during assembly.
Eliminating Creep and Long-Term Structural Fatigue
Standard materials can experience structural creep when subjected to continuous torque loads. Natural black granite exhibits zero mechanical creep, meaning the stone around the insert remains completely unaffected by tension. This ensures that bolted joints maintain their exact clamping force over decades of active service.
Insert Mounting Methods Performance Profile
| Parameter | ZHHIMG® Epoxy Mechanical Lock | Standard Expansion Anchors | Direct Metal Tapping (Alternative) |
| Pull-Out Force Resistance | Extremely High (> 50 kN) | Low (Risks cracking stone) | N/A (Granite cannot tap) |
| Vibration Loosening | Immune (Damped by Epoxy) | High Risk | N/A |
| Positioning Accuracy | Within ±0.05 mm | ±0.50 mm | N/A |
| Stress Distribution | Uniform Across Bond Area | Concentrated at Point | N/A |
| Material Option | Stainless Steel / Brass | Carbon Steel Only | N/A |
FAQ
Q1: What materials are ZHHIMG® threaded inserts made of?
A1: We use premium 304 or 316 stainless steel and high-grade brass as standard materials to ensure the threads never rust or seize up in humid environments.
Q2: Can a threaded insert pull out of the granite base under heavy loads?
A2: No, not under rated operating conditions. Our combination of grooved insert geometry and industrial structural epoxy ensures that the granite stone itself will yield before the bond breaks.
Q3: Can ZHHIMG® drill custom internal holes for vacuum or pneumatic lines?
A3: Yes. Our factory uses deep-hole core drilling equipment to create complex internal paths, vacuum supply holes, and counterbores alongside standard threaded inserts.
Q4: How does your factory verify insert positioning accuracy?
A4: Every finished component is inspected using a fully calibrated Coordinate Measuring Machine (CMM) to verify that all insert coordinates perfectly match your CAD file.
Q5: What is the minimal distance allowed between two threaded inserts?
A5: To avoid micro-cracking the structural stone bridge, we recommend keeping a minimum spacing equal to three times the hole diameter, depending on depth.
Q6: How does ZHHIMG’s ethics code impact custom product delivery?
A6: We practice No cheating, No concealment, No misleading. We never use low-grade glues or shortcuts; every insert is bonded under strict process controls for lifelong reliability.
