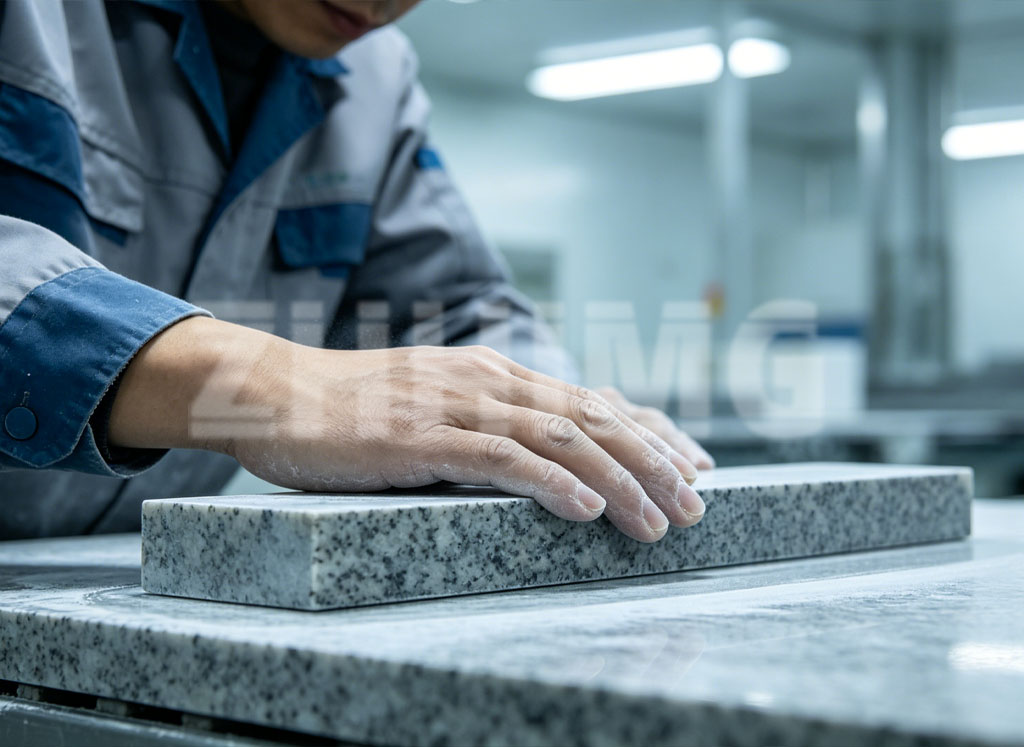

Precision CNC machining and metal casting produce critical components for industrial equipment, from custom housings and couplings to large-scale machine tool parts requiring tolerances measured in micrometers.
Behind every precision machine tool, industrial robot, hydraulic system, or automated production line is a collection of machined metal components that determine whether the equipment performs to specification. Gears, shafts, housings, brackets, and specialized mechanical linkages — each must be produced to tolerances that ensure proper fit, smooth operation, and long service life. For the most demanding applications, tolerances are specified in micrometers, not millimeters, and the manufacturing processes must be capable of delivering those tolerances consistently, part after part.
Precision CNC Machining: Capability and Scope
Modern CNC (Computer Numerical Control) machining encompasses several processes, each suited to different geometries and tolerances:
CNC milling is the workhorse of precision machining, capable of producing complex three-dimensional shapes from bar stock, plate, or pre-formed forgings and castings. Multi-axis machining centers — particularly 5-axis machines — can produce highly complex parts in a single setup, minimizing cumulative positioning errors that arise from multiple setups.
CNC turning (lathe operations) is used for rotational components: shafts, housings, couplings, and any part with cylindrical symmetry. Precision CNC lathes with live tooling can produce complex rotational parts with milled features in a single operation.
CNC grinding follows rough machining to achieve the final tight tolerances and surface finishes required for precision components. Surface grinding, cylindrical grinding, and centerless grinding are the most common operations. For the tightest tolerances — below 5 μm — creep-feed grinding or electrolytic in-process grinding may be specified.
Multi-axis machining (4-axis and 5-axis) allows the production of complex geometries that would be impossible or require multiple setups on simpler machines. For aerospace and medical device components with compound angles and sculptured surfaces, 5-axis machining is often the only practical manufacturing method.
Tolerances and What They Mean Practically
When specifying tolerances for precision machined components, engineers should understand what is achievable and what represents state-of-the-art capability:
Standard precision (±0.01 mm to ±0.05 mm): Routinely achievable on well-maintained CNC equipment without special processes. Suitable for most mechanical assemblies where components can accommodate some dimensional variation.
High precision (±0.001 mm to ±0.01 mm): Requires dedicated precision machining equipment, controlled shop environments, and in-process measurement or post-process inspection. Typical for precision gear and bearing applications.
Ultra-precision (below ±0.001 mm): Requires specialized equipment (ultra-precision CNC machines or jig grinders), environmental control (thermal stability, vibration isolation), and metrology-grade measurement systems. Achieved by specialists in ultra-precision machining for applications such as optical systems and precision stages.
Buyers should specify the tightest tolerances actually required for function, not tighter. Over-specification increases cost without benefit and can make sourcing difficult or unnecessarily expensive.
Common Materials for Precision Machined Components
The material selected for a precision machined component is determined by the application requirements — strength, wear resistance, corrosion resistance, thermal properties, weight, and cost:
Aluminum alloys (6061, 7075, 2024): Excellent machinability, good strength-to-weight ratio, moderate cost. 6061 is the most common general-purpose choice; 7075 offers higher strength for aerospace and military applications.
Stainless steels (303, 304, 316, 440C): Excellent corrosion resistance (especially 316), good strength, moderate machinability. 303 is the most machinable stainless but has reduced corrosion resistance. 440C is used for high-hardness applications such as bearing components.
Alloy steels (4140, 4340, tool steels): High strength and toughness, good wear resistance. Require heat treatment for optimal properties. Used for gears, shafts, and structural components requiring high strength.
Titanium alloys (Ti-6Al-4V): Exceptional strength-to-weight ratio, excellent corrosion resistance, biocompatible. Difficult to machine due to low thermal conductivity — requires specialized tooling and machining strategies.
Brass and bronze: Good machinability, excellent wear resistance (bronze in particular), good bearing properties. Used for bushings, bearing components, and decorative hardware.
Cast irons (gray iron, ductile iron): Excellent damping, good wear resistance, cost-effective for large components. Ductile iron offers superior toughness compared to gray iron.
Metal Casting for Large and Complex Components
For components too large or too complex to machine from bar stock or forgings, metal casting is the appropriate manufacturing method:
Sand casting is the most versatile and cost-effective casting method for large components and low-to-moderate production volumes. Tolerances are typically ±1-2 mm, with surface finishes in the 200-400 μin Ra range. Suitable for housings, large brackets, and machine tool structures.
Investment casting (lost-wax casting) produces components with excellent surface finish and dimensional accuracy, typically ±0.5 mm or better. Suitable for complex geometries and production volumes where tooling costs can be justified.
Die casting (for aluminum and zinc alloys) offers excellent dimensional control and surface finish for high-volume production. Tolerances of ±0.05 mm are achievable. Primarily used for housings and structural components in consumer products and automotive applications.
Precision casting encompasses specialized casting methods (including centrifugal casting and continuous casting) that produce components with tighter tolerances and better material properties than conventional sand casting. Used for large rings, tubes, and cylindrical structures requiring precise dimensional control.
For precision applications, cast components are typically machined all over (CNC machined on all surfaces) to achieve the final tolerances and surface finishes required.
Quality Standards and Inspection
Precision machined components for industrial equipment are typically produced to recognized quality standards:
- · ISO 286 — Limits and fits for dimensional tolerances
- · ISO 1101 — Geometrical product specifications (GPS) — form and position tolerances
- · ASME Y14.5 — Dimensioning and tolerancing (North American standard equivalent to ISO 1101)
- · ISO 8015 — Fundamental tolerancing principles
Inspection methods include:
- · Coordinate measuring machines (CMM) for dimensional and geometric tolerances
- · Optical and laser scanning for complex profiles
- · Surface roughness measurement using contact profilometers
- · Non-destructive testing (ultrasonic, magnetic particle, dye penetrant) for critical safety components
Material verification through material test reports (MTRs) confirms that the raw material meets the specified composition and mechanical properties.
Application Examples
Precision machined metal components are found throughout industrial equipment:
- · Hydraulic and pneumatic manifolds — Complex passages machined into solid blocks, requiring tight tolerances on port locations and internal geometry
- · Precision gears and pinions — Hobbed, ground, or shaved gears requiring backlash control and tooth-to-tooth spacing tolerances measured in micrometers
- · Shaft assemblies — Ground shafts with precise bearing seats, keyways, and seal surfaces
- · Machine tool spindles — Precision ground to micron-level tolerances for runout and bearing seat diameters
- · Pneumatic and hydraulic cylinders — Honed bores for low-friction piston operation
Frequently Asked Questions
What is the tightest tolerance achievable in CNC machining?
Well-maintained CNC equipment in controlled environments can achieve tolerances of ±0.005 mm (5 μm) routinely. Ultra-precision machining centers can achieve tolerances below ±0.001 mm (1 μm) for critical features. However, tight tolerances should only be specified where functionally necessary.
What surface finish can be achieved on CNC machined parts?
CNC milling typically achieves Ra 0.8-3.2 μm as-milled. Precision grinding can achieve Ra 0.1-0.4 μm. Lapping and super-finishing can achieve Ra below 0.05 μm for the most demanding bearing and sealing applications.
What is the largest size for precision CNC machined components?
Large-format CNC machining centers can accommodate workpieces up to several meters in length. However, as component size increases, achieving tight tolerances becomes more challenging due to thermal expansion, machine rigidity, and workpiece weight effects.
How is dimensional stability ensured over long production runs?
Process control is essential: environmental temperature control (±1°C or better), tool wear monitoring with in-process compensation, periodic measurement of production samples, and statistical process control (SPC) to track capability indices (Cpk values) throughout production.
What documentation should a precision machining supplier provide?
At minimum: dimensional inspection report for critical features, material test report (MTR) for raw material, and certificates of conformance. For critical or regulated applications: first article inspection reports (FAIR), process capability studies, and full dimensional data packages.
