The Science of Hand Lapping: How Micron-Level Hand Craftsmanship Outperforms CNC Grinding in Sub-Micron Precision

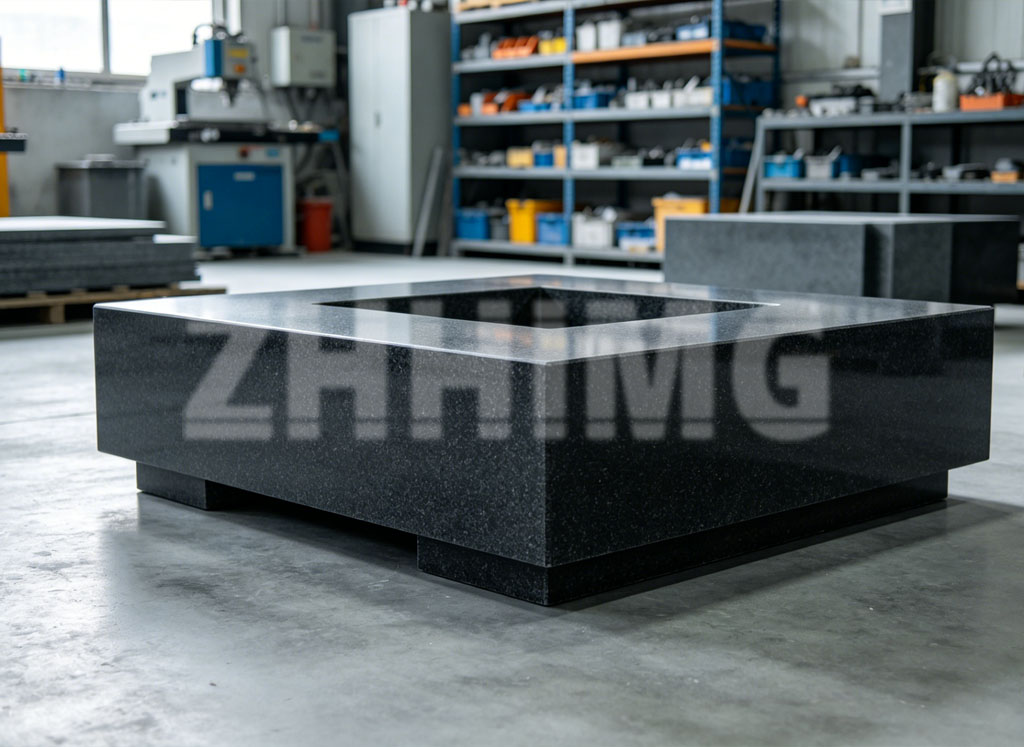

In an era dominated by 5-axis CNC machining centers and multi-million-dollar automated grinders, a fundamental question often arises in mechanical engineering: Why does the highest class of precision granite components—such as DIN 876 Grade 000 bases—still rely on human hand lapping?

When designing advanced semiconductor lithography equipment, ultra-high-precision Coordinate Measuring Machines (CMM), or optical inspection systems, achieving surface flatness within sub-micron or nanometer tolerances is non-negotiable. Modern grinding equipment can process granite components efficiently to impressive tolerances. However, when pushed to the ultimate limits of physical measurement, machine grinding hits a mechanical wall.

This article explores the physical and metrological science of hand lapping, demonstrating how master craftsmanship combined with laser metrology creates the world’s flattest structural surfaces.

1. The Physical Limitations of CNC Machine Grinding

High-precision surface grinders—such as 6-meter Nantter grinding machines—are essential for establishing macro-flatness, high material removal rates, and structural geometry. They can consistently bring large granite beds to standard industrial tolerances (e.g., DIN 876 Grade 0 or Grade 1).

However, machine grinding inherently introduces micro-level errors due to three physical factors:

1. Spindle and Bearing Micro-Vibrations: Even hydrostatic spindles exhibit minute chatter marks at microscopic scales. These high-frequency micro-vibrations transfer directly to the granite surface during abrasive contact.

2. Localized Thermal Friction: High-speed grinding wheels generate localized friction heat. Despite coolant flow, infinitesimal thermal expansion occurs at the contact zone during pass-through, causing subtle wave patterns as the material cools.

3. Machine Tool Deflection: As a heavy grinding head travels across a 5-meter or 10-meter bridge, micro-deflections in the machine’s own guide rails create repeating sinusoidal topography on the workpiece.

CNC Surface Grinding:
[Grinding Wheel Contact] ──> Micro-Heat + Spindle Chatter ──> Repeating Micro-Waves (0.5 to 2.0 um)

Master Hand Lapping:
[Tactile Spot Correction] ──> Zero Heat + Controlled Pressure ──> True Flat Surface (<0.2 um)

To eliminate these microscopic machine signatures and reach optical-grade flatness (<0.5 microns across long spans), mechanical grinding must give way to physical hand lapping.

2. The Tribology and Mechanics of Hand Lapping

Hand lapping is not merely an artistic tradition; it is an exact physical process governed by surface contact mechanics and tribology.

During hand lapping, a master technician uses custom lap plates coated with ultra-fine diamond slurries or silicon carbide abrasive pastes. By applying controlled, multi-directional motion, the technician selectively removes high spots (peaks) across the granite surface without inducing thermal stress.

The Microscopic Material Removal Mechanism

• Selective High-Spot Erasure: Unlike a mechanical grinder that follows a pre-programmed rigid path across high and low spots alike, hand lapping targets only the high points identified during metrological inspection.

• Cold Material Removal: Hand lapping operates at extremely low contact speeds, generating zero thermal distortion. The crystalline matrix of high-density black granite (approx. 3100 kg/m³) is gradually smoothed at sub-micron increments (0.1 um to 0.5 um per pass).

• Multi-Directional Cross-Hatching: By continuously varying the lapping angle in randomized figure-eight patterns, technicians prevent directional grain wear, resulting in a isotropic, non-directional surface finish.

3. “Human Sensors”: The Metrology of Tactile Intuition

In high-precision manufacturing, a common rule applies: If you cannot measure it, you cannot manufacture it.

Master hand lapping technicians working in cleanroom environments often possess over 30 years of direct hands-on experience. Through decades of daily tactile feedback, an experienced technician can feel microscopic surface resistance variations down to 0.5 microns simply by the hydrodynamic drag of the lap plate.

However, human tactile intuition is always validated by rigorous, state-of-the-art metrology instruments:

• Differential Electronic Levels (e.g., WYLER Systems): Used to evaluate pitch, roll, and overall flatness profiles over long structural spans.

• Laser Interferometers (e.g., Renishaw): Provide real-time nanometer-level linear and angular feedback across multi-meter guide rails.

• Inductive Micro-Indicators and Optical Flats: Verify local flat spots and surface roughness (Ra) down to sub-micron thresholds.

This symbiosis of human tactile adjustment and laser verification allows technicians to incrementally “shave off” nanometers until the granite component fully complies with strict international standards, including DIN 876 (Grade 00/000), ASME B89.3.7, and JIS B7513.

4. Why Climate and Foundation Stability Are Mandatory for Hand Lapping

Hand lapping to sub-micron tolerances is impossible in a standard factory environment. Ambient thermal shifts or ground vibrations will distort measurement readings faster than a technician can adjust the surface.

To guarantee true sub-micron repeatability, high-level hand lapping requires a specialized environmental infrastructure:

1. Vibration-Isolated Foundations: Lapping bays built on thick, reinforced concrete slabs (1000 mm+ thickness) surrounded by deep perimeter vibration-isolation trenches (e.g., 500 mm wide, 2000 mm deep) to isolate the granite from external factory floor vibrations.

2. Strict Climate Control: Climate-controlled cleanrooms maintained strictly at 20°C (±0.1°C to ±0.5°C) and 50% relative humidity, preventing thermal expansion errors during measurement cycles.

3. Traceable Calibration: Every measuring gauge, dial, and laser used to inspect hand-lapped surfaces must hold traceable calibration certificates from accredited metrology institutes.

Summary: Craftsmanship as the Ultimate Engineering Edge

While automated CNC machinery provides the scale and structural heavy-lifting required to build massive granite beds, master hand lapping remains the definitive bridge between mechanical roughing and sub-micron perfection.

When your equipment design requires absolute straightness, zero thermal stress, and nanometer-level flatness, choosing granite components refined by master craftsmen ensures long-term operational accuracy that no un-lapped machine surface can match.
